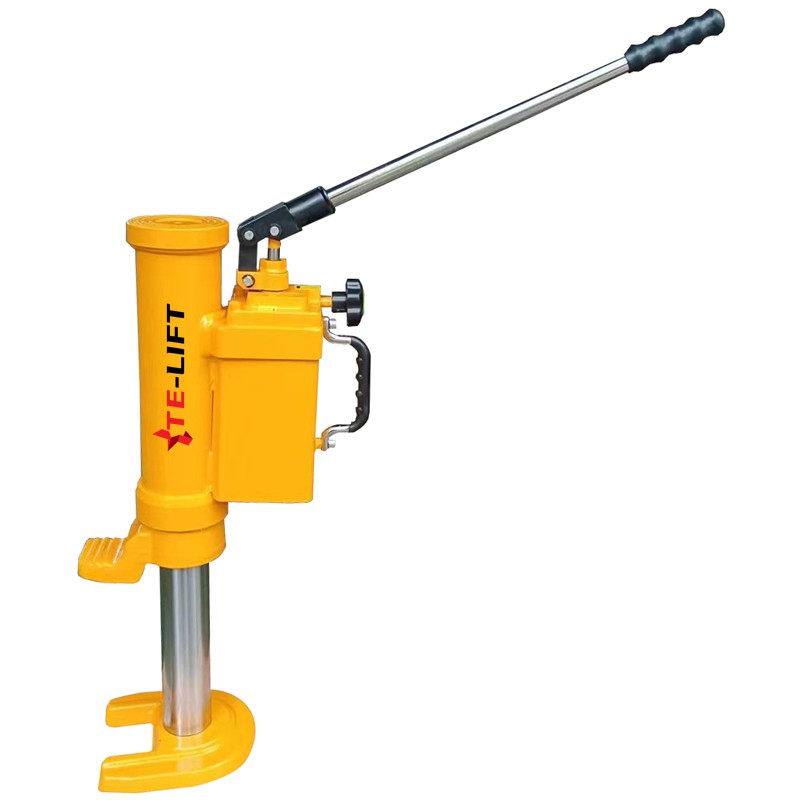

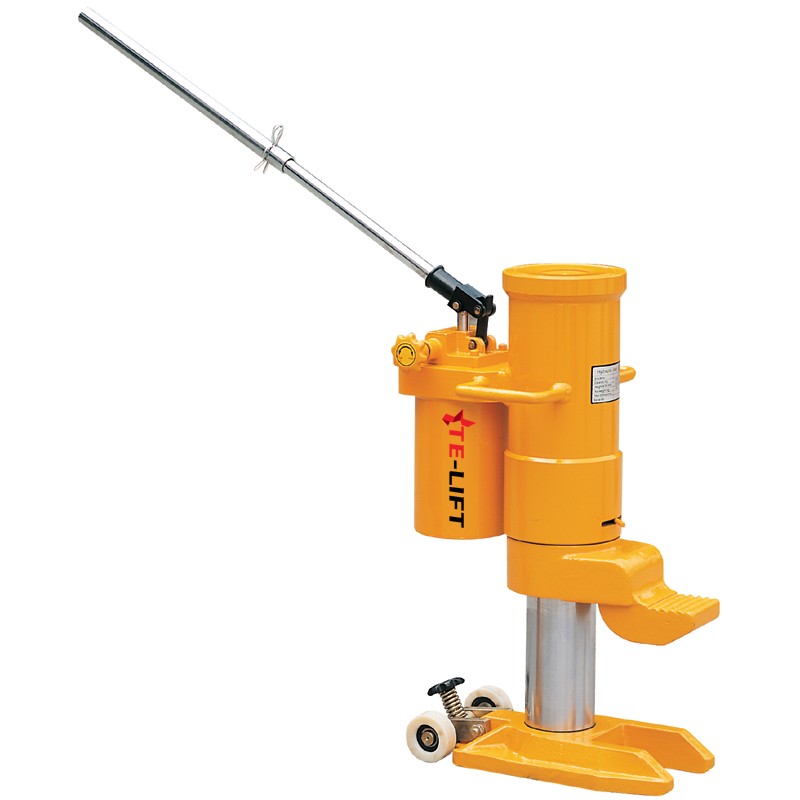

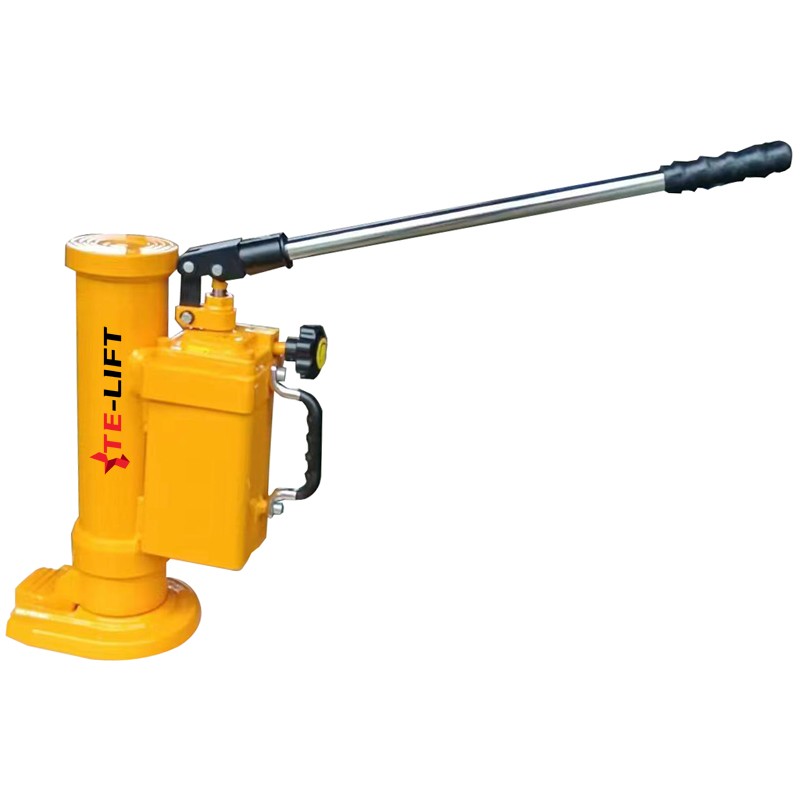

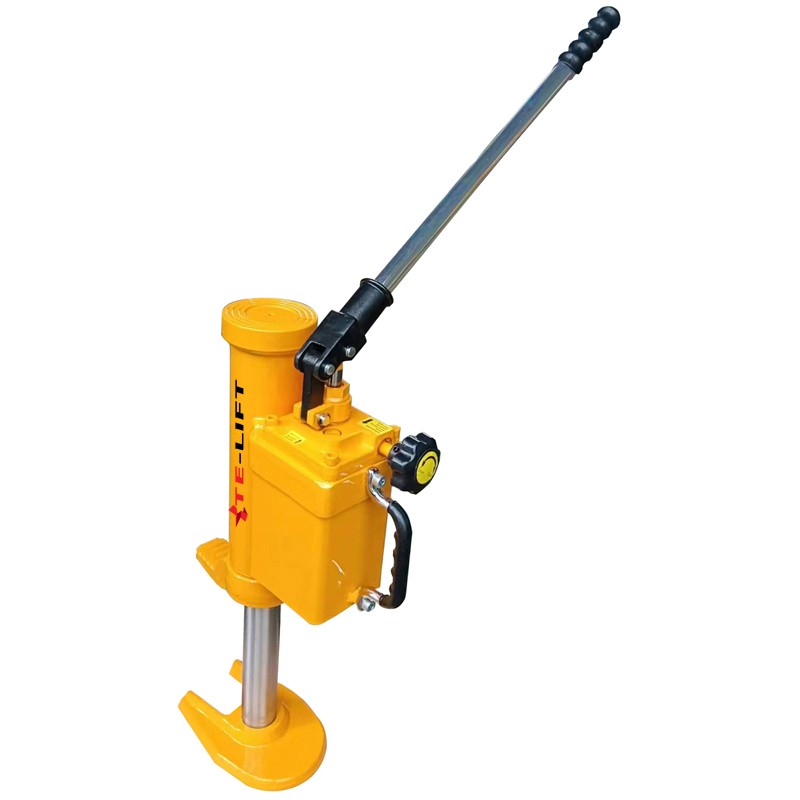

Hydraulic Toe Jack Machinery Lifting Jack

Product Item：HM50, HM100, HM250

Capacity 5tonne, 10tonne, 25tonne

Lifting Range of Toe 25-230mm, 30-260mm, 58-273mm

Lifting Range of Head 368-573mm, 420-650mm, 505-720mm

Max. Lever Force 38-40kg

Hydraulic Toe Jack Machinery Lifting Jack

HM Series

■ Hydraulic jacks for repairs, maintenance and installation of heavy machines.

■ Compact and stable construction.

■ Can lift by both toe and head.

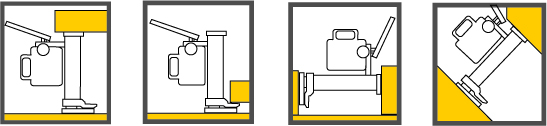

■ Can be used in any position and different direction.

■ Housing revolves 360 degrees.

■ Lowering speed can be accurately adjusted.

■ With overload protection function.

■ Pump lever can rotate more than 180 degrees.

■ Pump lever is removable.

■ With handle for easy moving.

■ Conform to CE and US standard USA ASME/ANSI B 30.1.1986.
