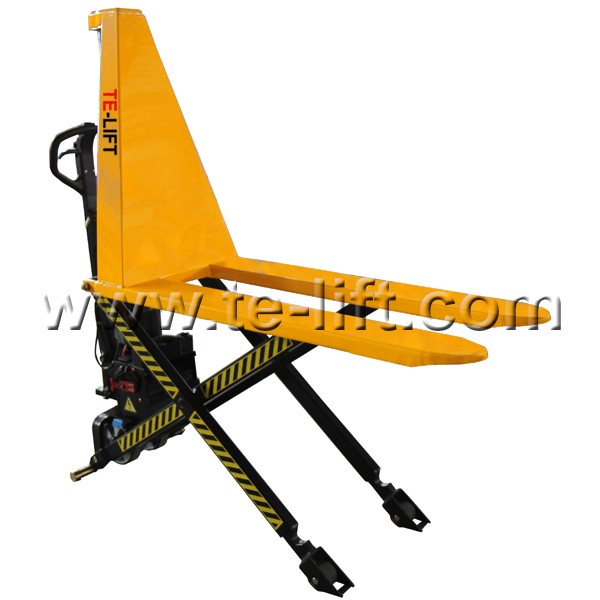

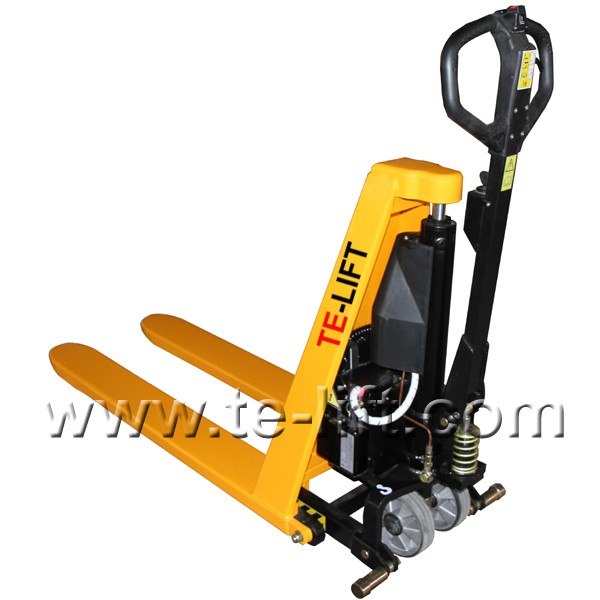

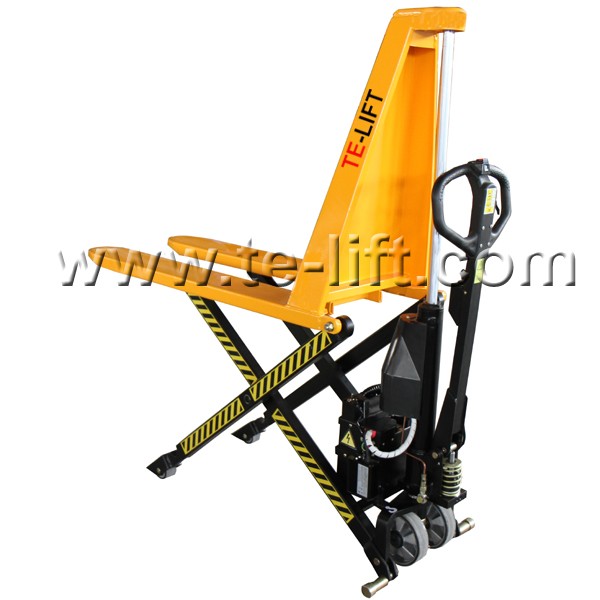

Electric Hydraulic High Scissor Lift Pallet Jacks
AC-EN series
AC-EN series
■ High scissor lift pallet truck design to load and unload conveyor, feed presses, or any applications requiring moving and positioning pallets or containers of materials.
■ Electric lifting to 800mm height, powered by battery.
■ Electric type lifting makes the work more high efficiency, and labor saving.
■ With presssure relief valve and overload valve to prevent pump damages when loads exceeds weight limits.
■ The enclosed fork tips and reinforced fork frames ensures long service life.
■ Equped with polyurethane loading roller and steering wheels to protect your floor.
■ The truck will be braked automatically when lift to the maximum height.
■ With built-in charger, key switch andand volt-meter.

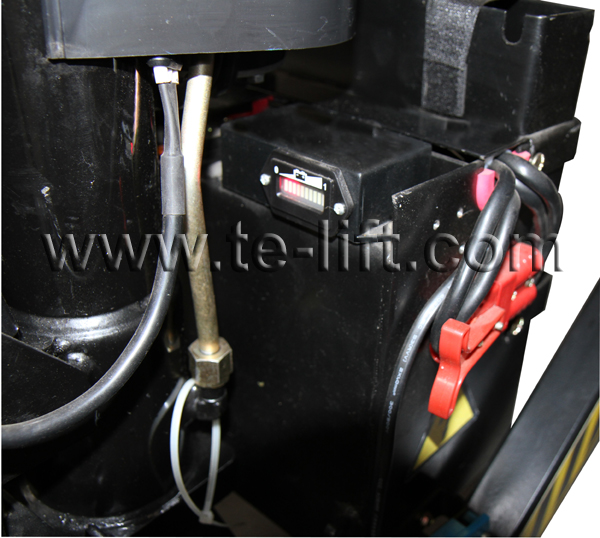

■ With 12V/60AH maintenance-free battery, and volt-meter to show the battery status.

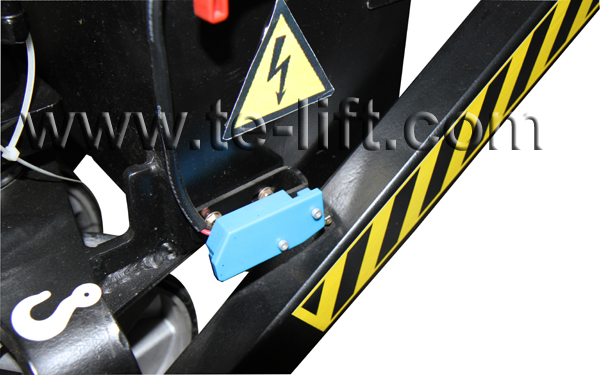

■ Limit switch to control the max. lifting height, more durable.

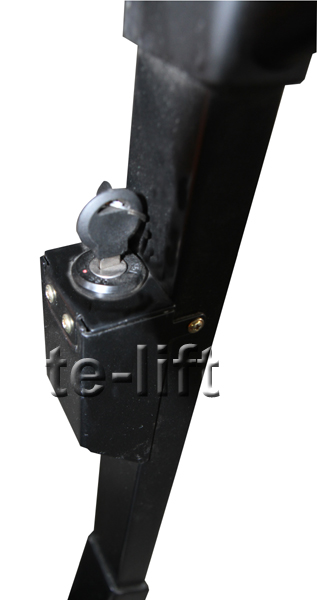

■ With key switch to power on the machine, more safety.

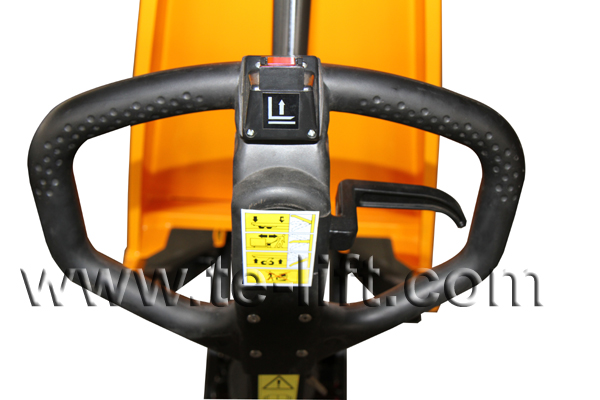

■ With Ergonomic handle, more comfortable to operate.
| Model | AC1054EN | AC1068EN | AC1554EN | AC1568EN | |
| Capacity | (kg) | 1000 | 1500 | ||
| Max. Fork Height | (mm) | 800 | |||
| Min. Fork Height | (mm) | 85 | |||
| Individual Fork Width | (mm) | 160 | |||
| Overall Forks Width | (mm) | 540 | 680 | 540 | 680 |
| Fork Length | (mm) | 1150 | |||
| Front Wheel Size | (mm) | Ø80x70 | |||
| Steering Wheel Size | (mm) | Ø180x50 | |||
| Battery | (V/AH) | 12/60 | |||
| Lifting motor power | (KW) | 0.8 | |||
| Net Weight | (kg) | 155 | 160 | 160 | 165 |
