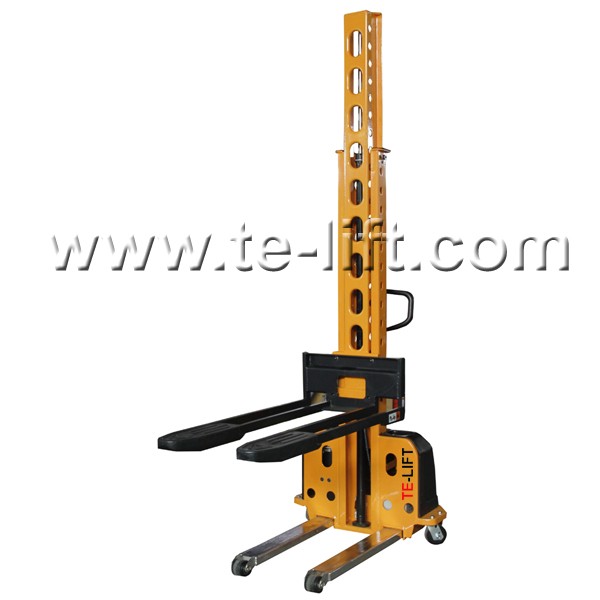

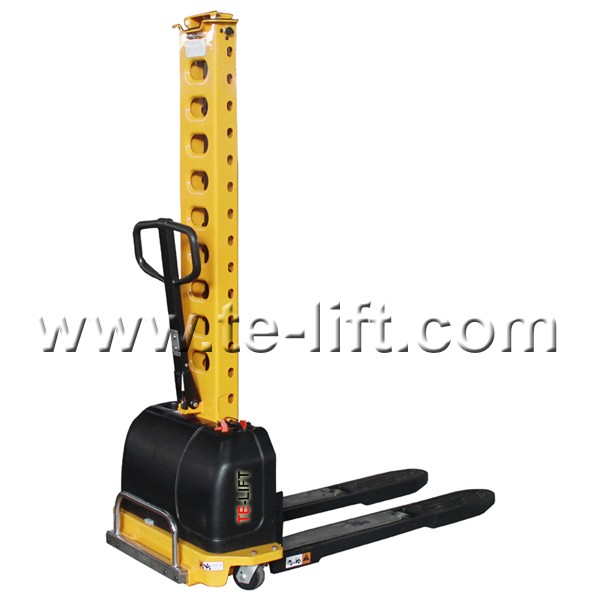

Climbing Forklift Truck Self Loading Semi-Electric Pallet Stackers
SDYG-Z series
■ Operated by single man, load and unload the pallets from the lorry.
■ Unique design to climb onto the loading platform or lorry with easy care.
■ An ideal replacement for a lift that is permanently installed on a lorry.
■ It is characterized by a low curb weight and can be used on any lorry.
■ Max. Lifting up to 1300mm.
■ Conforms to EN1757-1.
| Model | SDYG-Z 0509 | SDYG-Z 0511 | SDYG-Z 0513 | |
| Capacity | (kg) | 500 | ||
| Load Center | (mm) | 400 | ||
| Load Roller Size | (mm) | Φ70×60 | ||
| Steering Wheel Size | (mm) | Φ100×50 | ||
| Balance Wheel Size | (mm) | Φ40×26 | ||
| Training Wheel Size | (mm) | Φ30×26 | ||
| Min. Fork Height | (mm) | 90 | ||
| Max. Fork Height | (mm) | 900 | 1100 | 1300 |
| Overall Forks Width | (mm) | 535 | ||
| Fork Length | (mm) | 1150 | ||
| Individual Fork Width | (mm) | 155 | ||
| Overall Length | (mm) | 1600 | ||
| Overall Width | (mm) | 790 | ||
| Min. Overall Height | (mm) | 1195 | 1400 | 1600 |
| Max. Overall Height | (mm) | 2100 | 2500 | 2900 |
| Min. Turning Radius | (mm) | 1120 | ||
| Lift Motor | (kw) | 0.8 | ||
| Battery Capacity | (V/Ah) | 12/33 | ||
| Net Weight | (kg) | 175 | 197 | 219 |
