Description

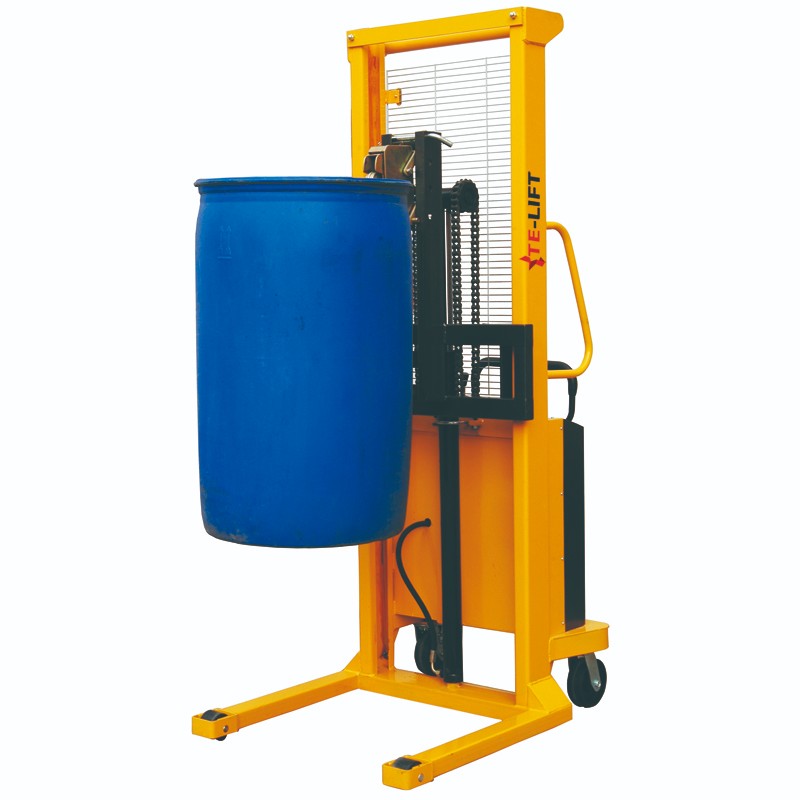

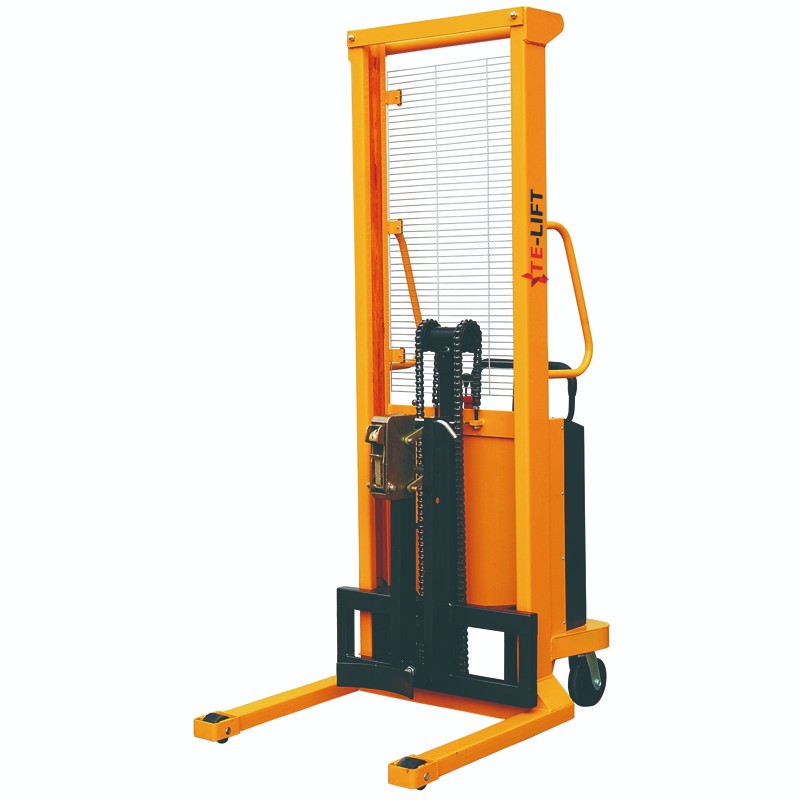

Semi-electrc Drum Stacker Electric Lifting Drum Truck
Model DT500 and DT500-1
■ Power lift up to 1450mm, 500KG Capacity.
■ Equiped with eagle-grip structure to grab and release the drums easily.
■ Lifting, transporting, stacking and weighing 55 gallon steel drums and 200L rimmed plastic drums.
■ Special rolling technology of C-type frame provdes the strong security.

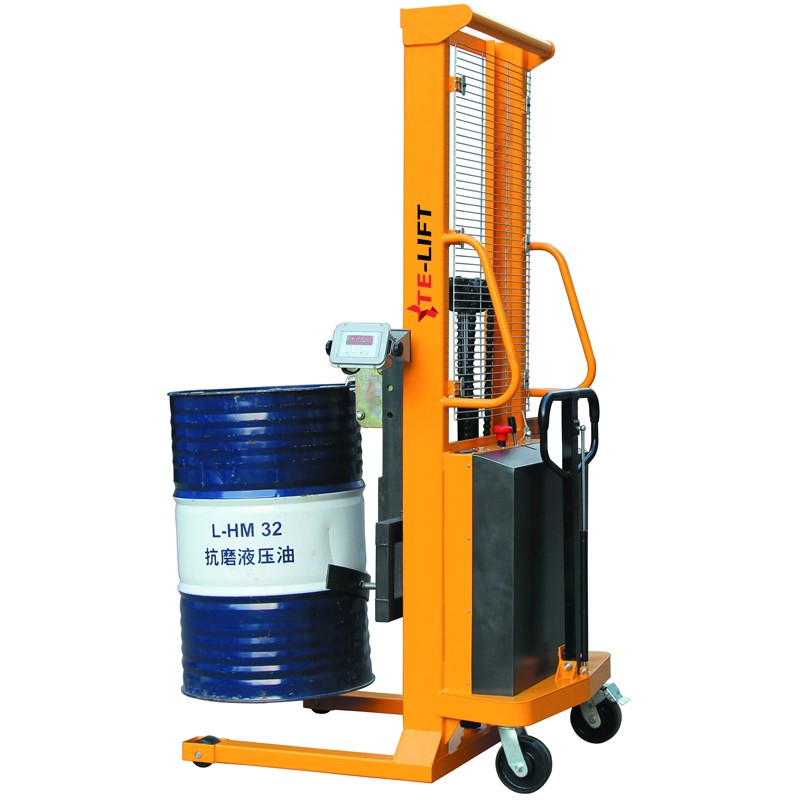

■ DT500-1 is equiped with weighing scale, accuracy up to 0.3%, allow you to weigh your drum simultaneously.
| Model | DT500 | DT500-1 | |
| With Weighing Scale | |||
| Rated Capacity | (kg) | 500 | |
| Max. Lifting Height | (mm) | 1450 | |
| Acceptable Drum Type | steel, plastic, fiber | ||
| Lifting Speed | (mm/s) | 120 | |
| Load Rollers Size | (mm) | Ø80x60 | |
| Steering Wheel Size | (mm) | Ø150x50 | |
| Distance Between Legs | (mm) | 630 | |
| Overall Legs Width | (mm) | 810 | |
| Leg Length | (mm) | 630 | |
| Turning Radius | (mm) | 1750 | |
| Lifting Motor Power | (kw) | 1.5 | |
| Battery | (v/ah) | 12/120 | |
| Overall Size(LxWxH) | (mm) | 1500x950x2100 | |
| Net Weight | (kg) | 208 | 228 |
