Rough Terrain Pallet Truck Construction Site Pallet Jack

Product Item：RTT12

Capacity 1200KG

With adjustable forks width 228-735mm

Forks length 860mm

Pneumatic big and steering wheels

Rough Terrain Pallet Jack Construction Site Pallet Truck

Model RTT12

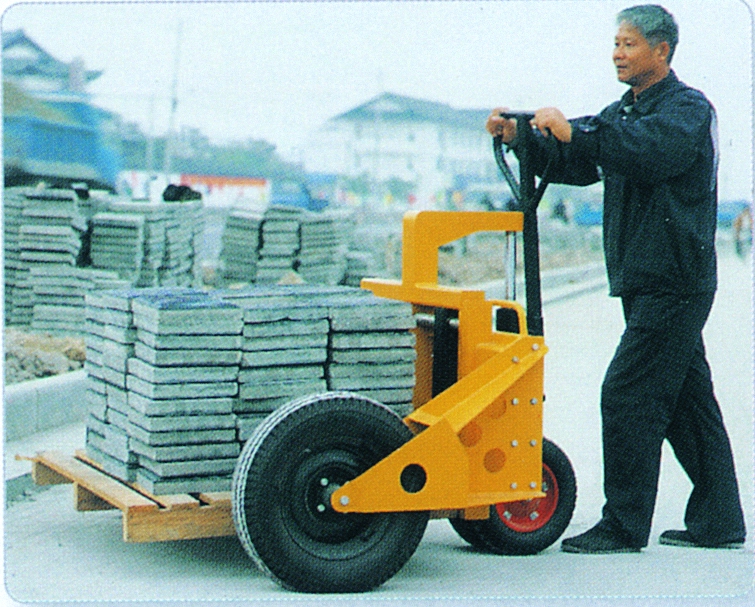

■ Ideal for use on rough surfaces, such as building sites, Graden centres and any external applications.

■ Fitted with Pneumatic tyres for use on undulating surfaces.

■ Powder coated heavy duty steel frame.

■ Low maintenance pump unit.

■ Ideal for open and closed pallets.

■ 1200kg capacity, and fitted with adjustable forks 860mm long.

■ Forks can lower down to Minimum 63mm height.

■ Easy to manoeuvre with 210 degrees turning radius.

■ Hand release trigger to control the rate of descent.

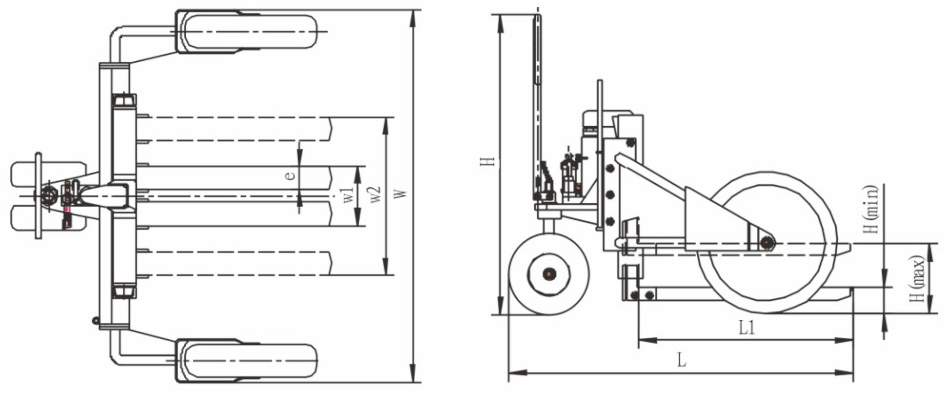

Model			RTT12
Rated Capacity		(kg)	1200
Max. Fork Height	H(max)	(mm)	233
Min. Fork Height	H(min)	(mm)	63
Fork Length	L1	(mm)	860
Load Center	C	(mm)	450
Adjustable Overall Forks Width	w1-w2	(mm)	228-735
Individual Fork Width	e	(mm)	100
Distance between Front Wheels		(mm)	1277
Axel Distance between Front Wheel and Rear Steering Wheel		(mm)	973
Front Load Wheel (Dia. x Wid)		(mm)	￠550x132
Rear Steering Wheel(Dia. x Wid)		(mm)	￠265x80
Turn Radius	Wa	(mm)	1500
Overall Size(LxWxH)	(LxWxH)	(mm)	1375x1605x1200
Net Weight		(kg)	225
