Description

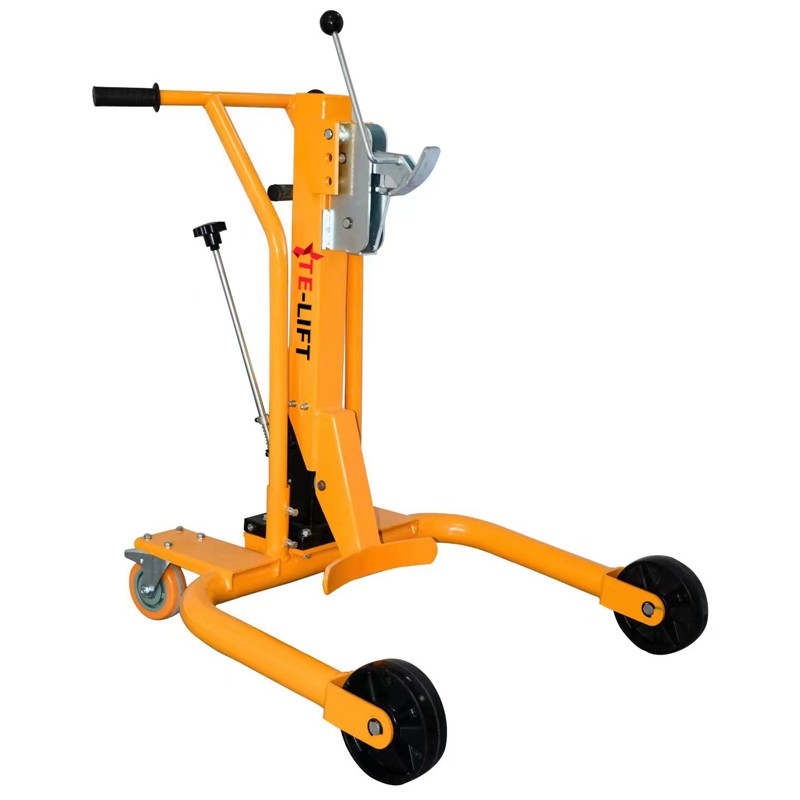

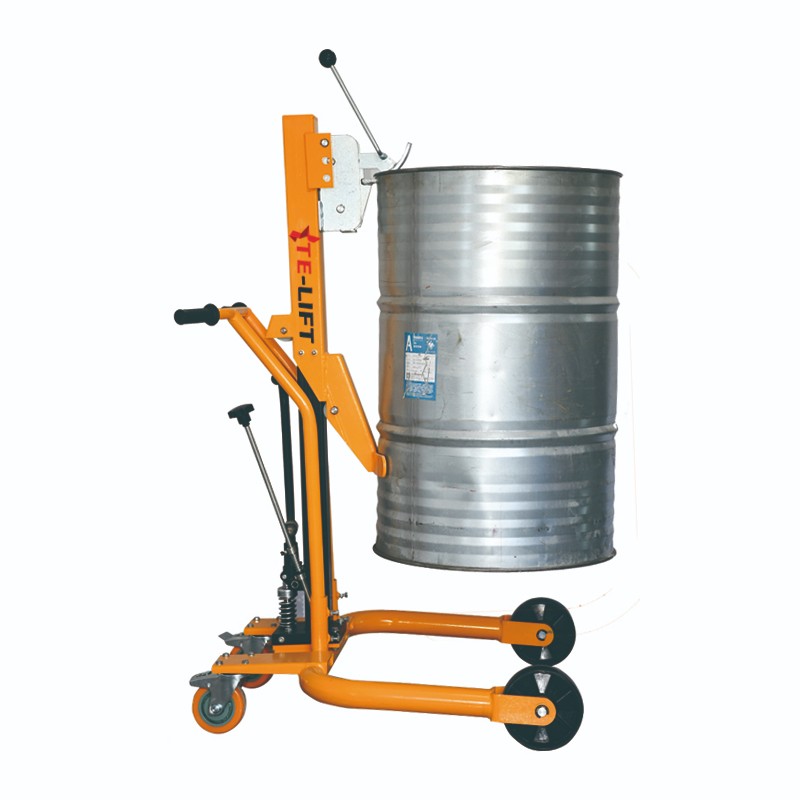

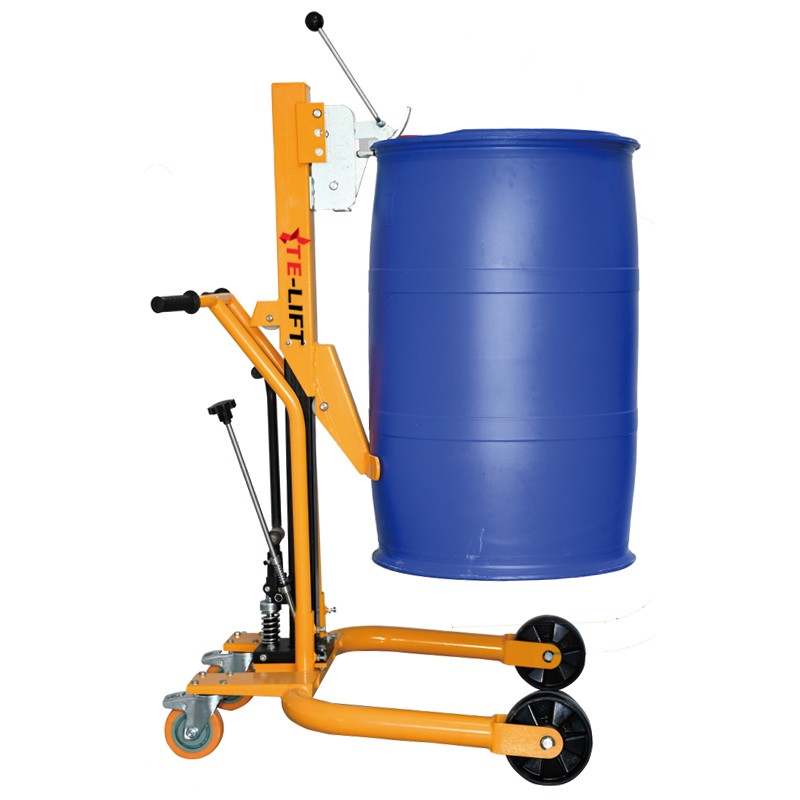

Professional Hydraulic Drum Trucks
Model DY35C and DY35B
■ Capacity 350kg.
■ Japanese design drum truck, more professional for take drums.

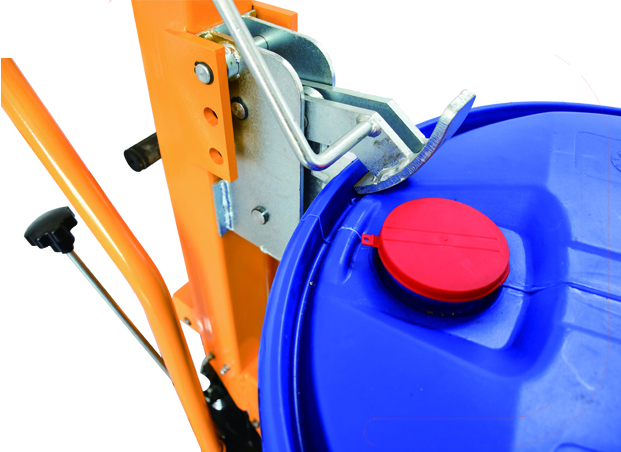

■ Manual type clamp for different type drums, such as steel, plasitc or fiber.
■ Hydraulic foot pedal type lifting, easy to lifting the drums.
■ Handle type pressure release rod, easy to descend the drums.
■ With two swivel rear casters, and with brakes.
■ Four wheels are all polyurethane, which can protect our floor well.

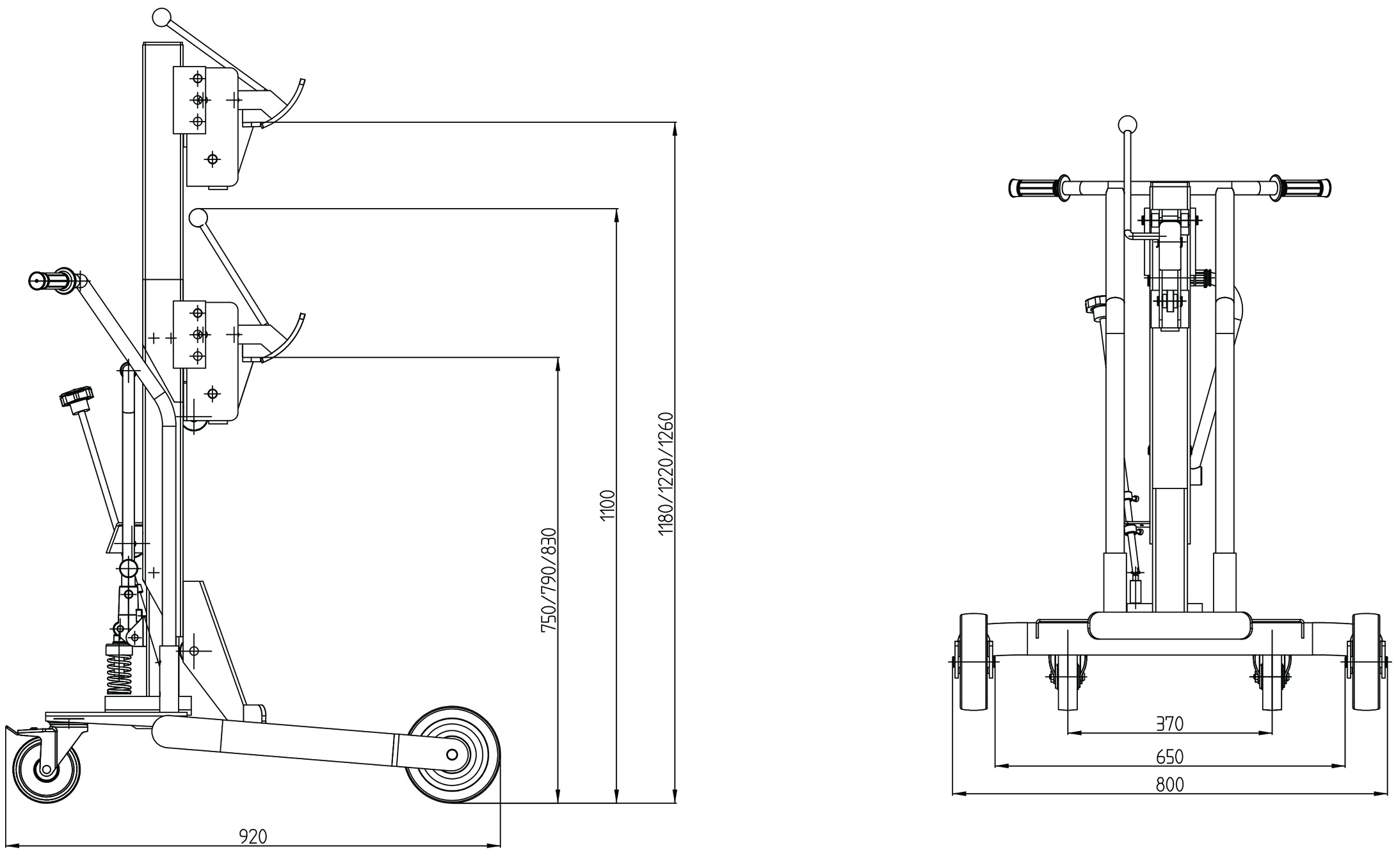

■ DY35C is with parallel legs for taking the drums from the ground.

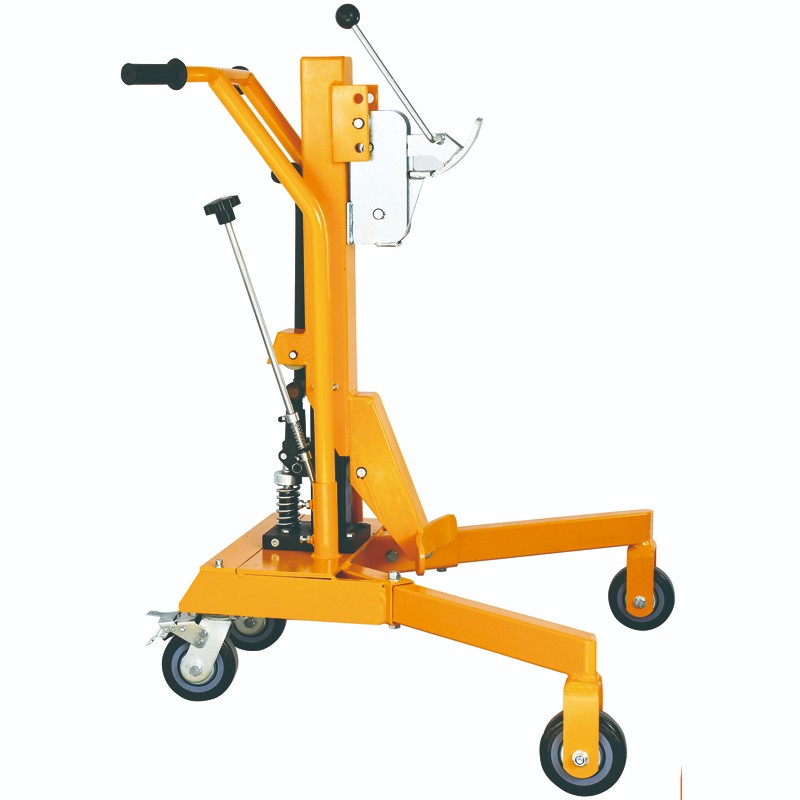

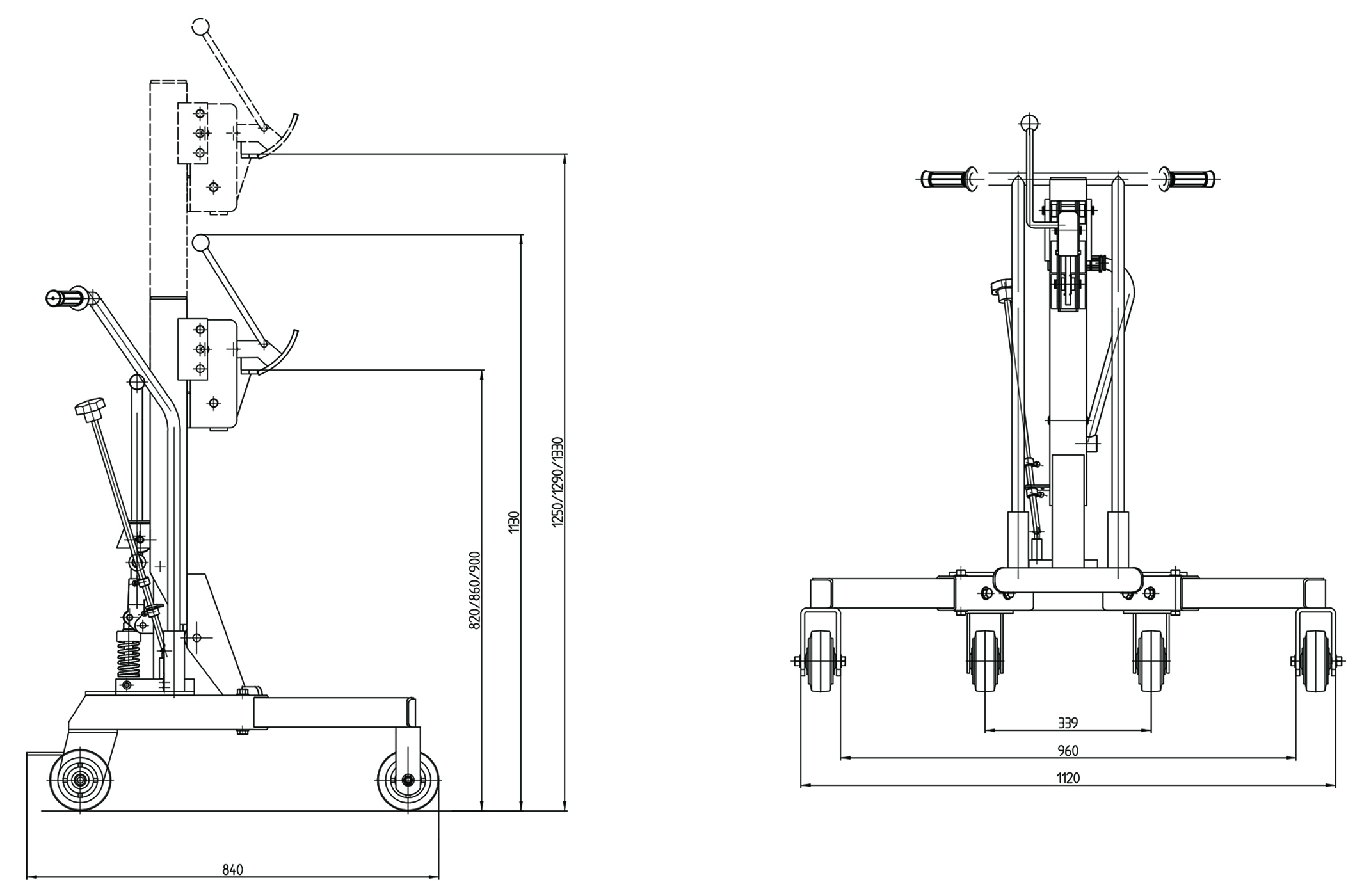

■ DY35B is with right-angled legs for taking the drums from the pallet.
Model | DY350C | DY35B | |
Capacity | (kg) | 350 | |
Suitable for Drum Size | (gallon/liter) | 55/210 | |
Suitable for Drum Type | steel, plastic, fiber | ||
Stroke | (mm) | 430 | |
Inner Width of Legs | (mm) | 650 | 960 |
Front Wheel Diameter | (mm) | 180 | 125 |
Rear Wheel Diameter | (mm) | 125 | 125 |
Overall Size LxWxH | (mm) | 920x800x1100 | 840x1120x1130 |
Net Weight | (kg) | 55 | 74 |
