Description

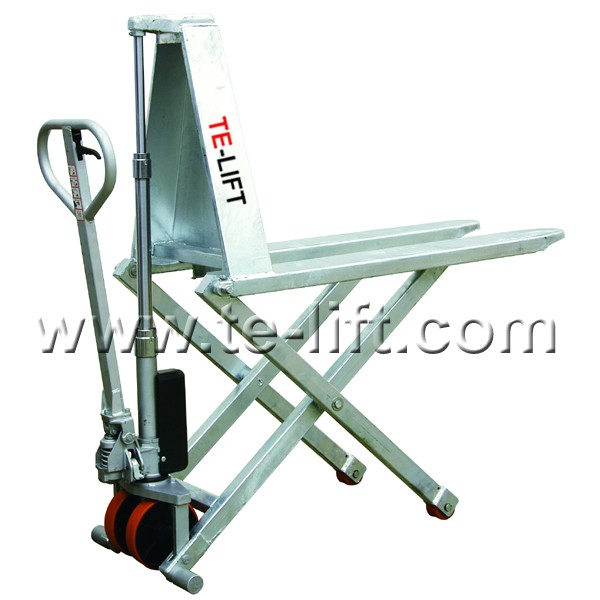

Galvanized Hydraulic High Scissor Lift Pallet Jacks
HG series
■ For using in all areas where corrosive acids and saline solutions
■ Hot galvanized forks and scissors, and electro galvanized cylinder and handle.
■ Double-stage cylinder makes the lower peak, more compact.
■ With presssure relief valve and overload valve to prevent pump damages when loads exceeds weight limits.
■ The enclosed fork tips and reinforced fork frames ensures long service life.
■ The truck will be braked automatically when lift to the maximum height.
■ Conforms to EN1757-4.
Model | HG540M | HG680M | HG540E | HG680E | |
Lifting Type | Manual | Electric | |||
Capacity | (kg) | 1000 | |||
Max. Fork Height | (mm) | 800 | |||
Min. Fork Height | (mm) | 85 | |||
Overall Forks Width | (mm) | 540 | 680 | 540 | 680 |
Individual Fork Width | (mm) | 160 | |||
Fork Length | (mm) | 1150 | |||
Battery | (V/Ah) | \ | 12/54 | ||
Net Weight | (kg) | 116 | 126 | 144 | 149 |
