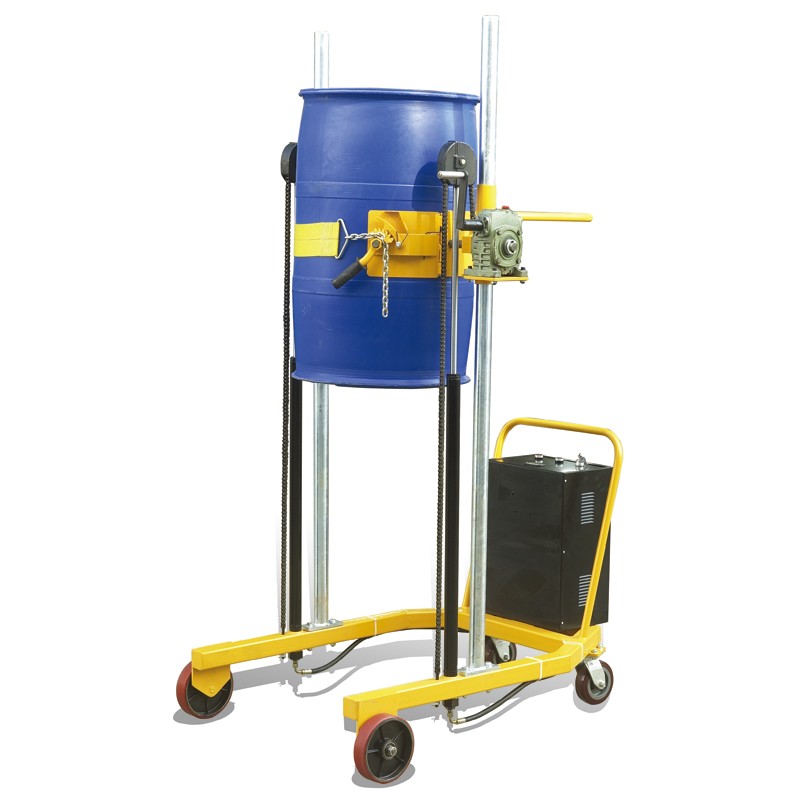

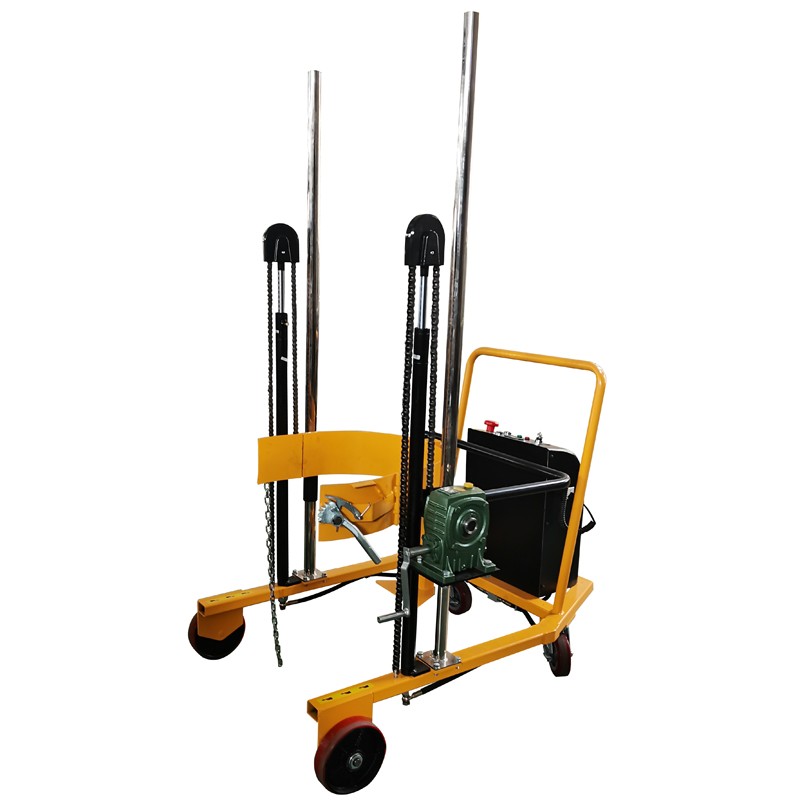

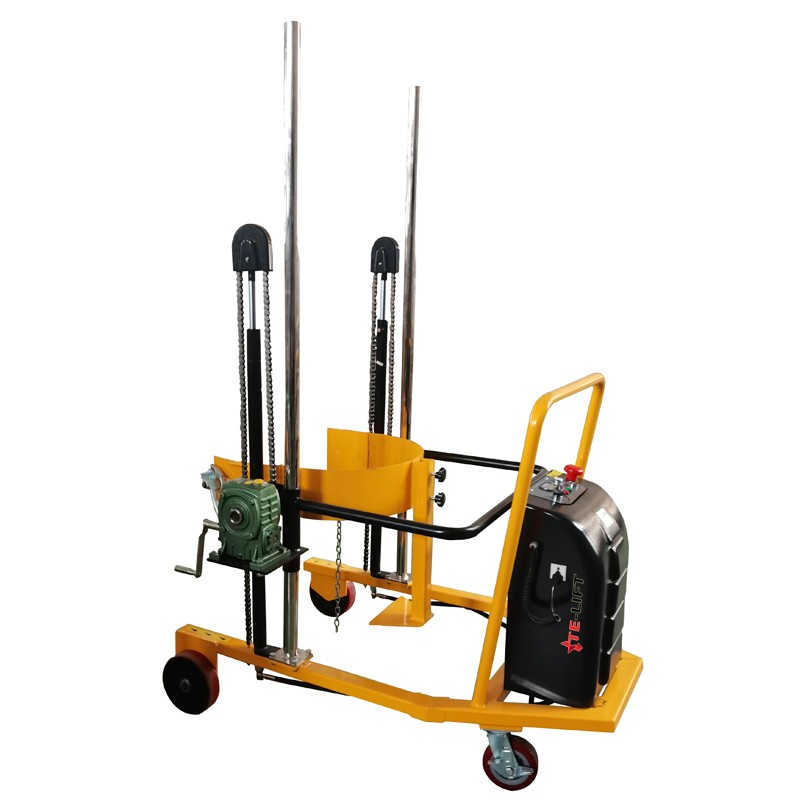

Hydraulic Oil Drum Lifting and Dumping Truck
Model WE30■ For lifting, turning, mixing, emptying and transporting drums.
■ Electric lifting by pump station, and manual rotary by reduction box.
■ Drums can be manually rotated to Max. 180 degree and kept at any angle.
■ For 200 litre steel oil drums, and plastic, fiber oil drums.
■ With lead-acid maintenance-free battery and automatic built-in charger.
■ With anchor ear structure and support frame for different types oil drums.
■ Double poles lifting structure provides a good view during lifting.

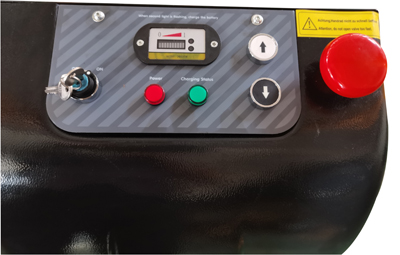

■ Integrated control panel, include key switch, coulombmeter, indicator lights, up/down buttons and emergency stop button.
| Model | WE30 | |
| Capacity | (kg) | 300 |
| Max. Lifting Height | (mm) | 1415 |
| Suitable for Drum Size | (mm) | Φ572x900 |
| Front Wheel Diameter | (mm) | Φ200 |
| Rear Wheel Diameter | (mm) | Φ150 |
| Lifting Speed | (mm/s) | 40 |
| Power Unit | (kw) | 0.8 |
| Battery | (V/Ah) | 12/60 |
| Net Weight | (kg) | 180 |
