Description
Hydraulic Drum Truck Suitable for European Pallet
Model DTR250 and DTW250

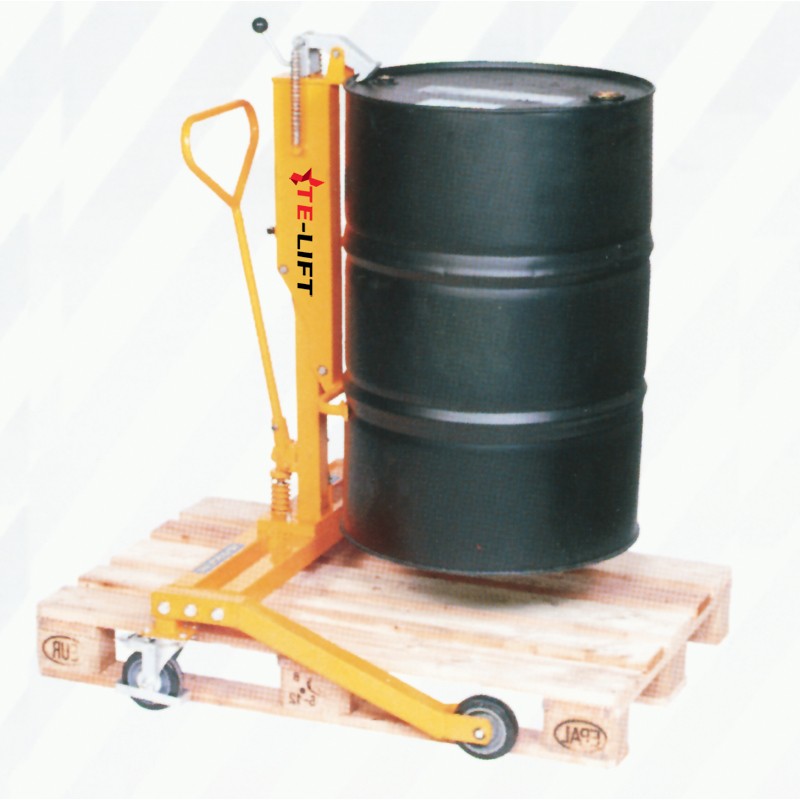

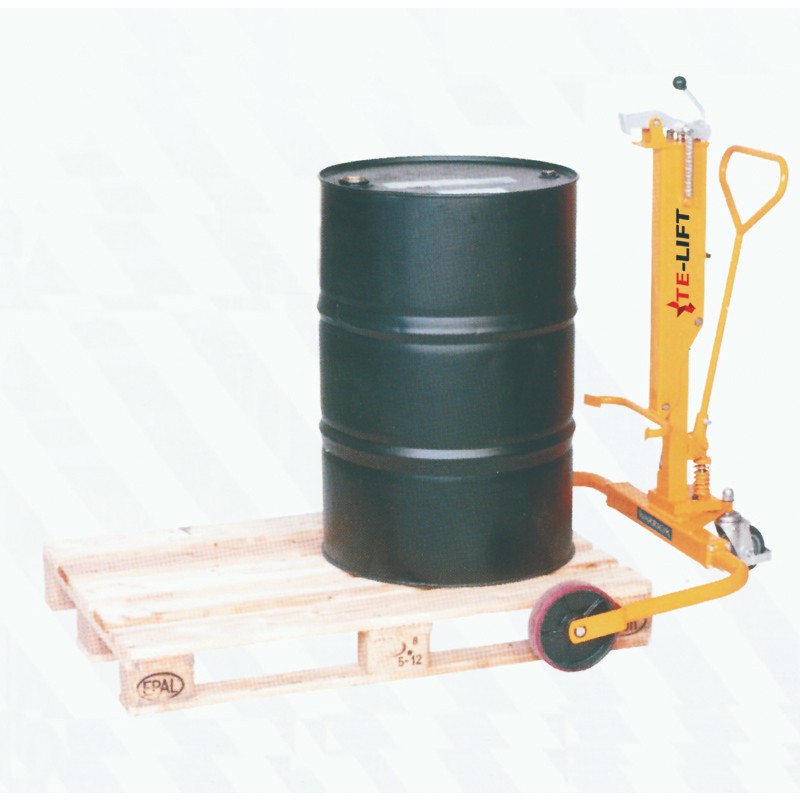

■ Ride-on Type DTR250 grabs drums from the middle of a Euro pallet with a drum clawgrab, raises the drums up, and redistributes them throughout the facility.

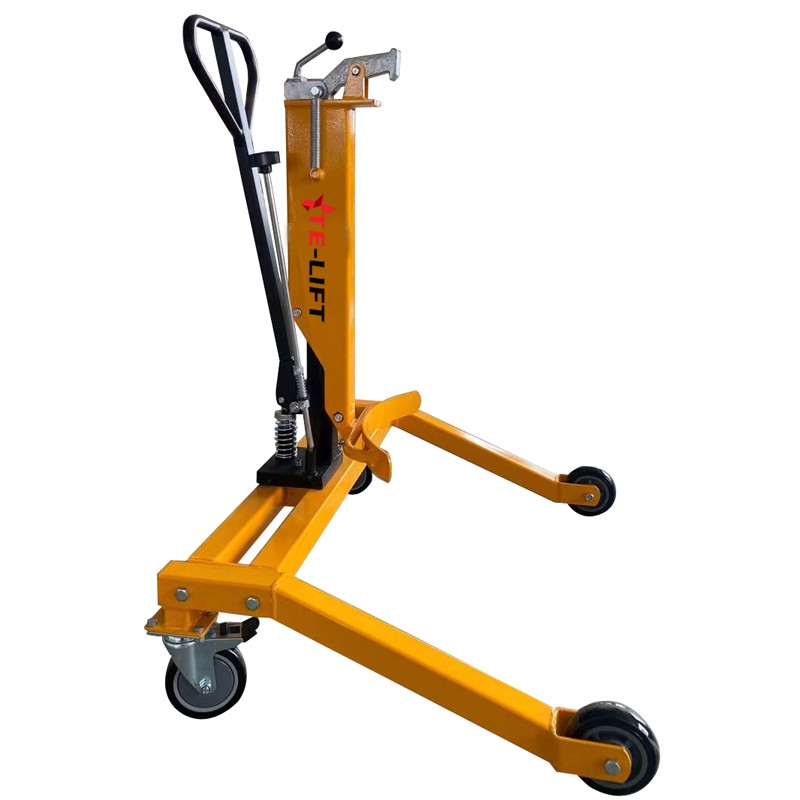

■ Straddle Leg Type DTW250 for picking up drums from a Euro Pallet.
■ Suitable for both Steel Drum and Plastic Drum.
■ Less lifting force by a reliable hydraulic pump.
■ Easy moving with two big size wheels and one swivel caster.
■ Ideal for lifting and transporting steel drums with a top lip.
■ Spring-loaded steel jaws securely grip the top lip of the drum.
■ Simple design is easy to use.
■ Unit features a manual mechanical hand ratchet crank lift mechanism.
■ Includes two rigid and one locking swivel caster for DTW250, two rigid and two locking swivel casters for DTR250.
■ Disassembled in carton for shipping.
| Model | DTR250 | DTW250 | |
| Type | Sraddle Leg Type | Ride-on Type | |
| Lifting Capacity | (kg) | 250 | 250 |
| Lifting Height | (mm) | 320 | 320 |
| Lifting Height per Stroke | (mm) | 22 | 22 |
| Suitable for Drum Diameter | (mm) | 572 | 572 |
| Suitable for Drum Capacity | (litre) | 210 | 210 |
| Net Weight | (kg) | 50 | 45 |
