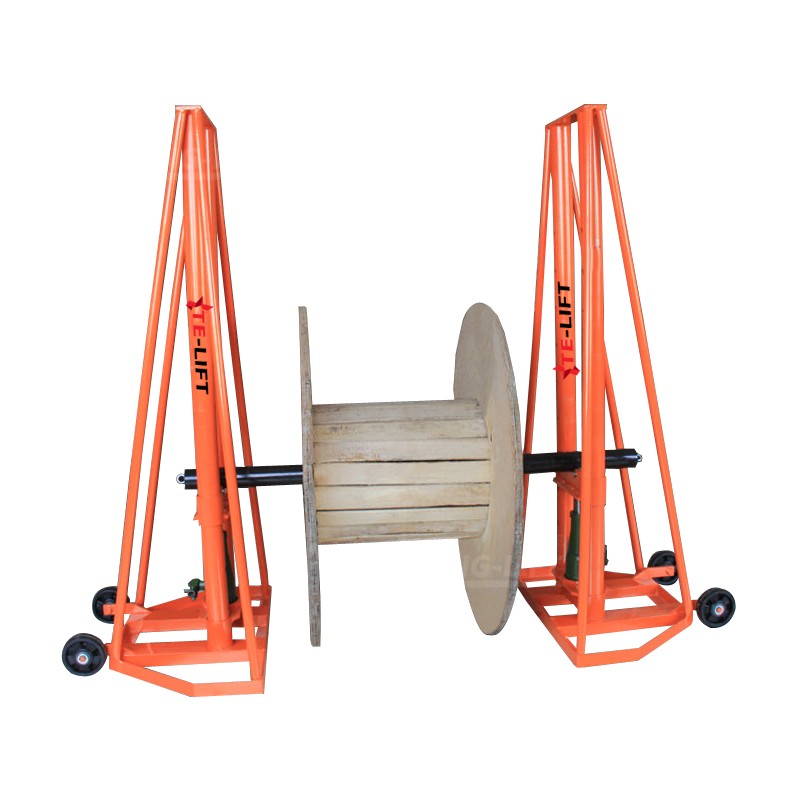

Wire Coil Dispenser Cable Drum Rack
Model TYX-4 and TYX-4A

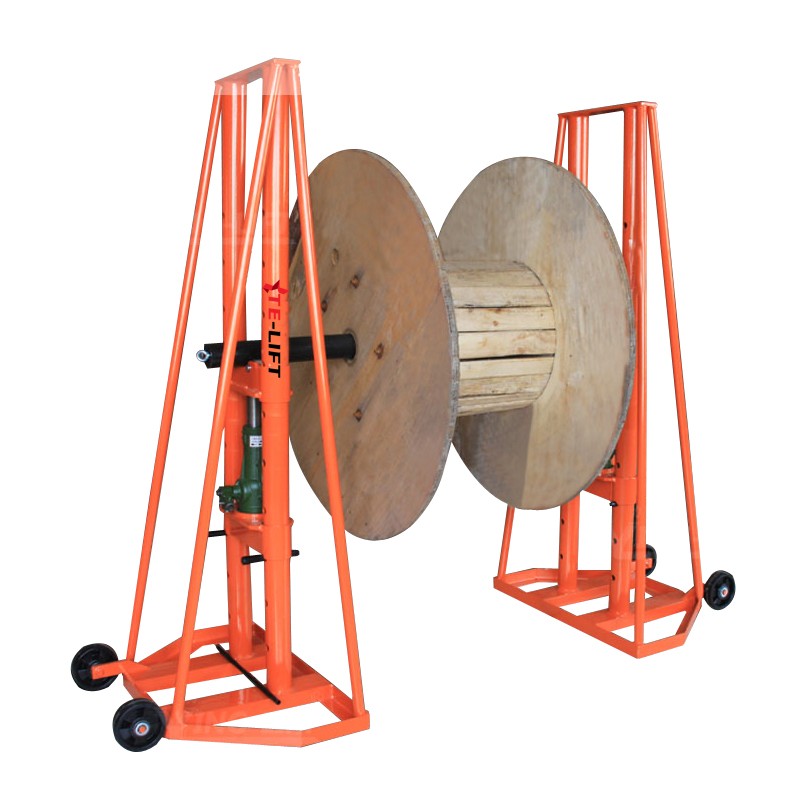

■ Cable drum can be rotated easliy when we use this cable drum rack.
■ Take calbe from cable drum easily by using this cable drum rack.
■ Lifting by hydraulic jack, suitable for different diameter cable drums, from Φ1500mm to Φ3500mm.
■ Adjustable overall width, which is suitable for different width of cable drums, from 100mm to 1200mm.
■ Combination by two brackets with castors and one axle, which can be moved easily by single person.

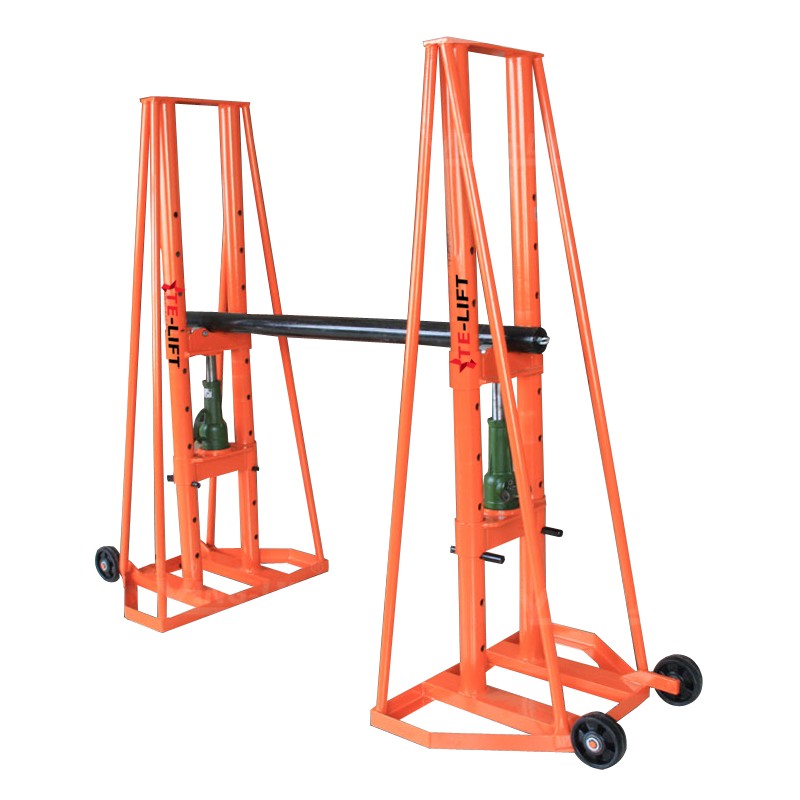

■ With several holes for mounting the hydraulic jacks, so we can lift the cable drum one layer by layer.

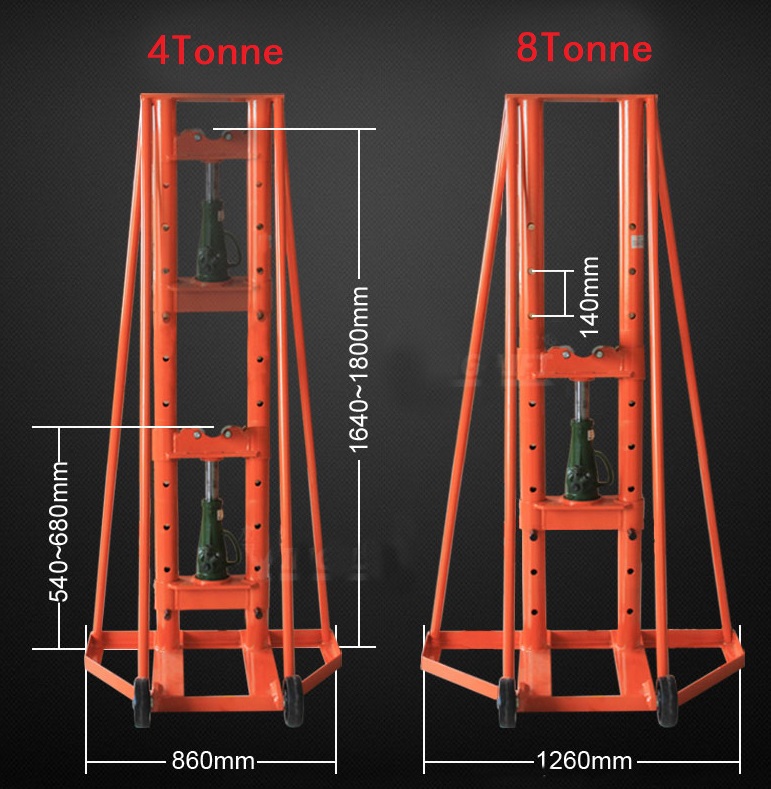

| Model | TYX-4 | TYX-4A | |
| Capacity | (kg) | 4000 | 8000 |
| Axle Diameter | (mm) | Φ76 | Φ76 |

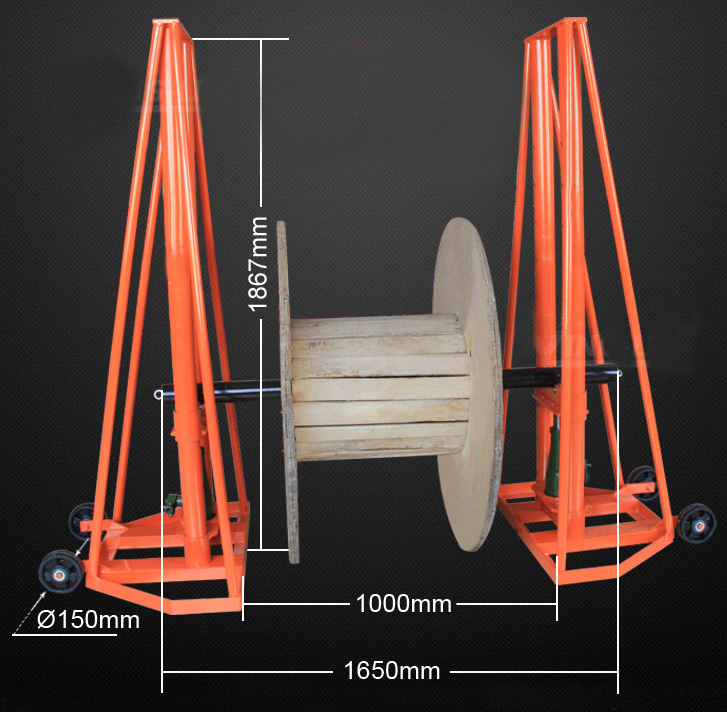

| Axle Length | (mm) | 1650 | 1650 |
| Applicable Wire Coil Width | (mm) | 100~1200 | 100~1200 |
| Applicable Wire Coil Diameter | (mm) | Φ1500~Φ3500 | Φ1500~Φ3500 |
| Net Weight | (kg) | 228 | 278 |
