Description
Stainless Steel Electric Platform Work Lifters
E100S and E150S
■ Standard one is platform version, with PVC platform. Optional with stainless platform or other attachments.
■ SUS304 material, good for corrosive acids application.
■ Ideal for use in narrow aisles and confined spaces.
■ Perfect for all applications from pharmaceutical to catering, from packing line to food processing, from warehouse to office, kitchens, laboratories, retail outless, etc...
■ Automatic electronic overload protection system ensures safety.
■ Maintenance free and sealed batteries, automatic charger.

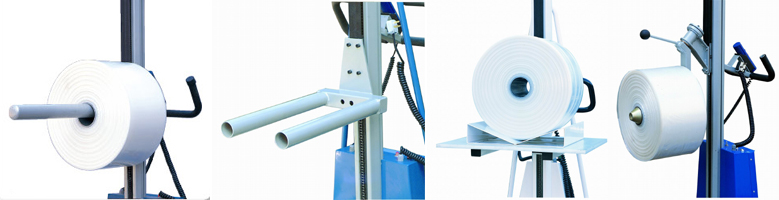

■ Quick change attachment options available.
| Model | E100S | E100HS | E150S | |
| Max. Capacity | (kg) | 100 | 100 | 150 |
| Load Centre | (mm) | 235 | ||
| Max. Platform Height | (mm) | 1700 | 2000 | 1500 |
| Min. Platform Height | (mm) | 130 | ||
| Leg Height | (mm) | 110 | ||
| Platform Size D×W | (mm) | 475×605(PVC/Stainless) | ||
| Overall Size L×W×H | (mm) | 870×600×1990 | 870×600×2290 | 870×600×1790 |
| Front Wheel Diameter | (mm) | Φ75(PU) | ||
| Rear Wheel Diameter | (mm) | Φ125(PU) | ||
| Power Unit | (V/W) | 24/150 | ||
| Battery | (V/Ah) | 2×12/12 | ||
| Net Weight | (kg) | 66 | 68 | 63 |
