Description

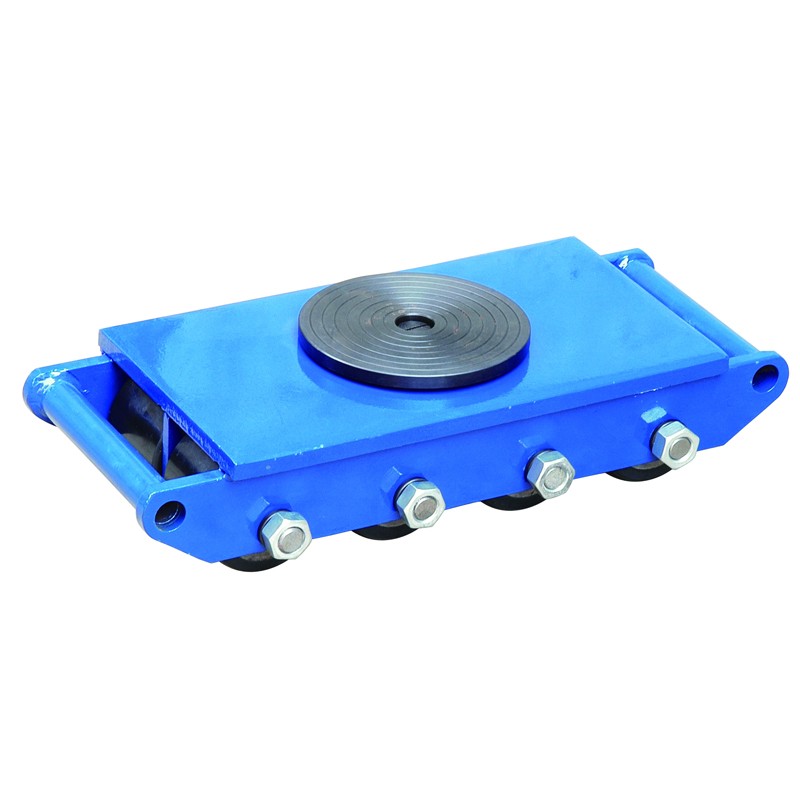

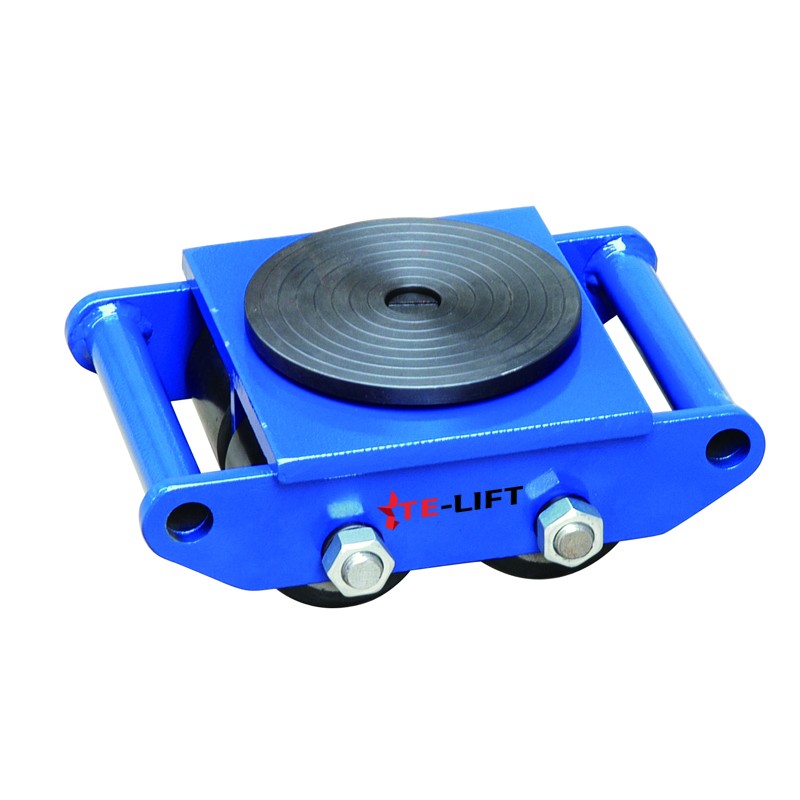

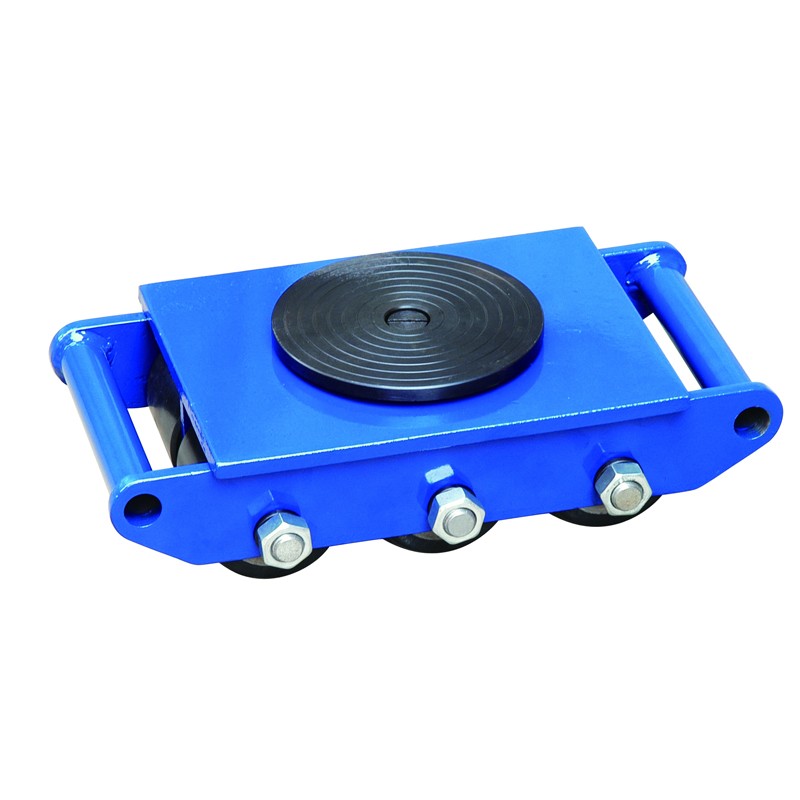

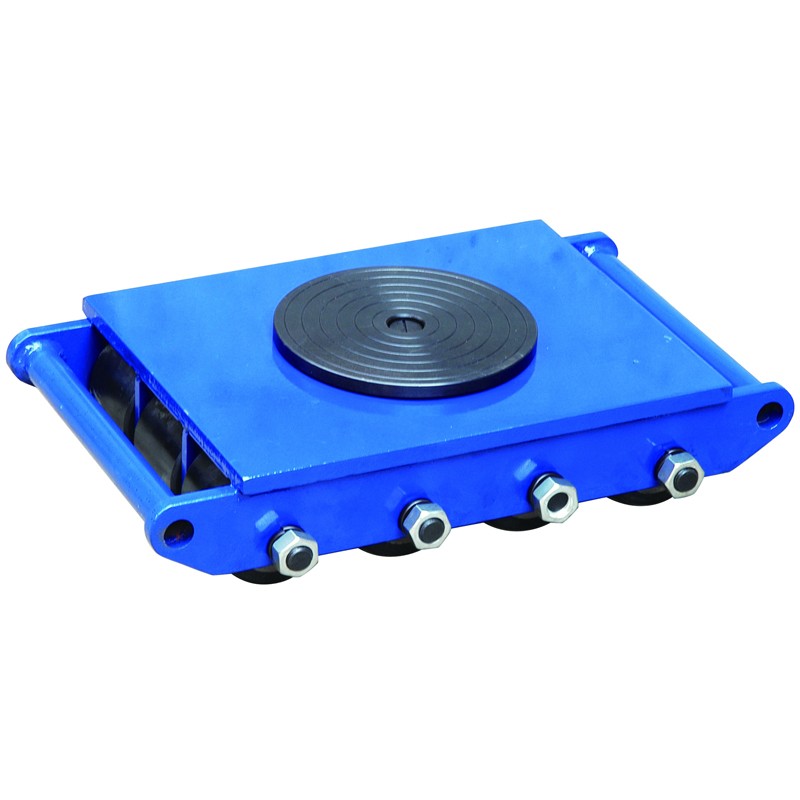

Heavy Goods Moving Roller Skates with Turntable
CTA series■ With steel turntable on the top platform for 360 degree rotation.
■ For the easy and safe transport of heavy objects.
■ With large ball-bearing nylon rollers.
■ With hardened steel shafts.
■ With strong steel structure.
■ Two different roller material polyurethane and nylon for choice.
■ Roller size is diameter 80mm and width 70mm.
| Model | CTA-4 | CTA-6 | CTA-8 | CTA-9 | CTA-12 | CTA-16 | CTA-20 | CTA-25 | |
| Capacity | (tonne) | 6 | 8 | 12 | 15 | 18 | 24 | 30 | 36 |
| Number of Rollers | (pcs) | 4 | 6 | 8 | 9 | 12 | 16 | 20 | 25 |
| Roller Size Dia.xWidth | (mm) | Φ80x70 | |||||||
| Roller Material | Polyurthane/Nylon | ||||||||
| Length | (mm) | 300 | 400 | 500 | 400 | 500 | 500 | 600 | 600 |
| Width | (mm) | 222 | 222 | 222 | 308 | 312 | 420 | 420 | 518 |
| Height | (mm) | 110 | 110 | 110 | 110 | 110 | 110 | 120 | 120 |
| Net Weight | (kg) | 16 | 23 | 30 | 37 | 48 | 55 | 73 | 87 |
