Manual Balancing Load Crane Forks

Product Item：CK10, CK15, CK20, CK30, CK50

Capacity 1T~5T

Forged forks length 1000mm or 1200mm

With adjustable overall forks width

With adjustable height

Manual Balancing Load Crane Forks

CK series

■ Fork length 1200mm as optional.

■ Available as 1.0, 1.5, 2.0, 3.0 & 5.0 Ton Models.

■ Able to safely lift even Large 48" x 48" Pallets.

■ Different lifting positions for manual balancing.

■ Includes Load Retention Chain.

■ Crane operator will not need to leave cab of lorry or crane.

■ Forks will remain horizontal when loaded and unloaded.

■ Adjustable overall forks width with 5 positions

■ With three positions for adjustable height, to use with different sized loads.

■ The Overhead Load Lifters are designed for lifting and moving pallets, skids, and crates in industrial applications.

■ Use with an overhead lifting crane for optimal results.

■ Includes an adjustable bail for keeping the load level when moving.

■ Meets or exceeds all ASME B30.20 Below the Hook Lifting Requirements.

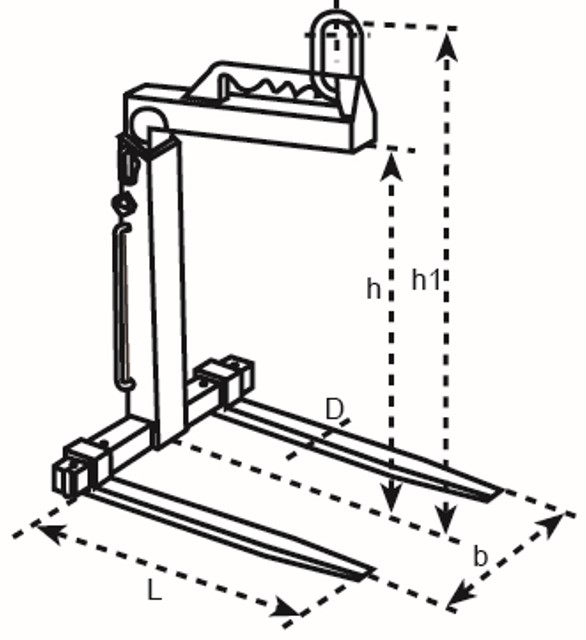

Model	Work Load Limit	Adjustable Overall Forks Width	Hook Height	Effective Height	Fork Length	Individual Fork Size	Overall Size	Net Weight
	wll	b	h1	h	L	D	(L×W×H)
	(tonne)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(kg)
CK10	1	350-900	1390-1890	1100-1600	1000/1200	100×30	1120×920×1390	130
CK15	1.5	350-900	1600-2300	1300-2000		100x40	1120×920×1600	151
CK20	2	400-900	1640-2340	1300-2000		120×40	1140×920×1640	200
CK30	3	450-900	1670-2370	1300-2000		120×50	1140×920×1670	250
CK50	5	530-1000	1700-2400	1300-2000		150×60	1160×1020×1700	370
