Description
Stainless Steel Manual Hydraulic Pallet Truck with Digital Scale
ACWS series
■ 100% stainless Grade 304.
■ Ideal for applications in food and medical industry.

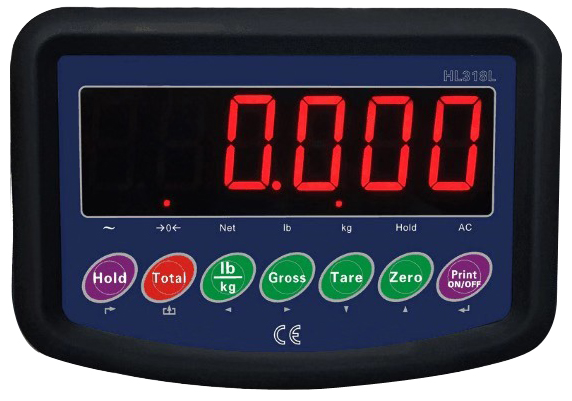

■ Small and compact electronics specially developed for mobile weighing.
■ With high quality AC type pump.
■ Accuracy 0.1% of the weight applied to the scale.
■ Graduation 1kg.
■ 3"(75MM) lowered fork height available.
■ The pallet truck with digital scale allows you to weigh your load on the spot for maximum efficiency.
■ The frame uses heavy-duty steel construction for maximum strength and durability.
■ This model is very user friendly and is suitable for low height lifting.
■ The built-in scale allows you to weigh your load as you are handling it.
■ The scale is selectable in a variety of increments to adjust to the size of your load.
■ It has keyboard calibration and functional setup with automatic zero capabilities.
■ Digital filtering is used to help compensate for vibration and motion to make the pallet truck with digital scale smooth and accurate.
■ Factory calibrated for shipping destination.
■ Scale is powered with 4 C batteries. AC adapter included. Step approval also available.
Model | ACWS20S | ACWS20L | ACWSP20S | ACWSP20L | |
Capacity | (kg) | 2000 | 2000 | ||
Printer | without | with | |||
Max. Fork Height | (mm) | 200 | 200 | ||
Min. Fork Height | (mm) | 85 | 85 | ||
Fork Length | (mm) | 1150 | 1150 | ||
Overall Forks Width | (mm) | 545 | 690 | 545 | 690 |
Individual Fork Width | (mm) | 162 | 162 | ||
Net Weight | (kg) | 106 | 110 | 107 | 111 |
