Description

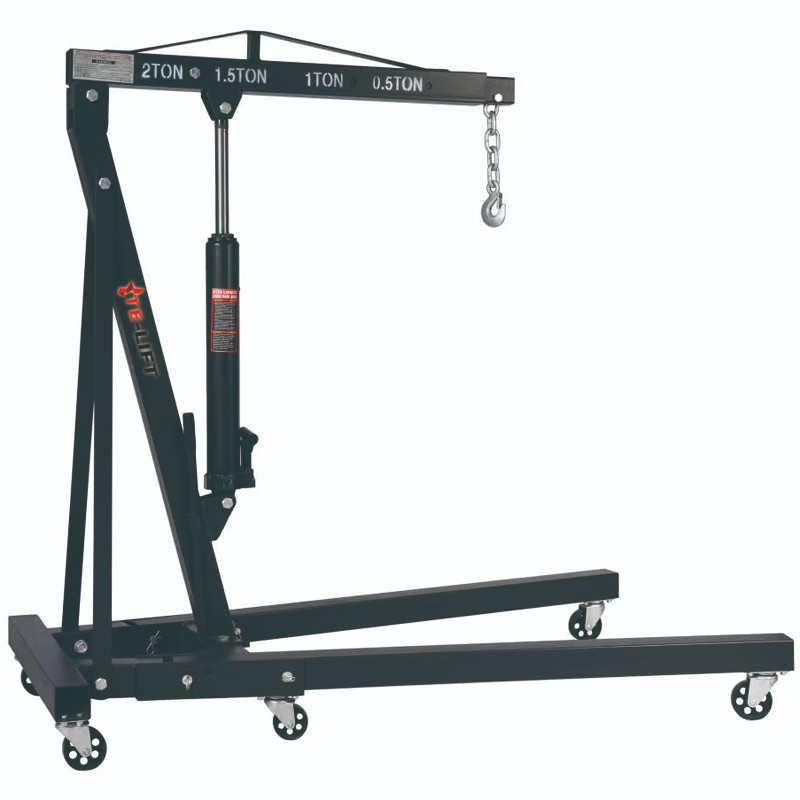

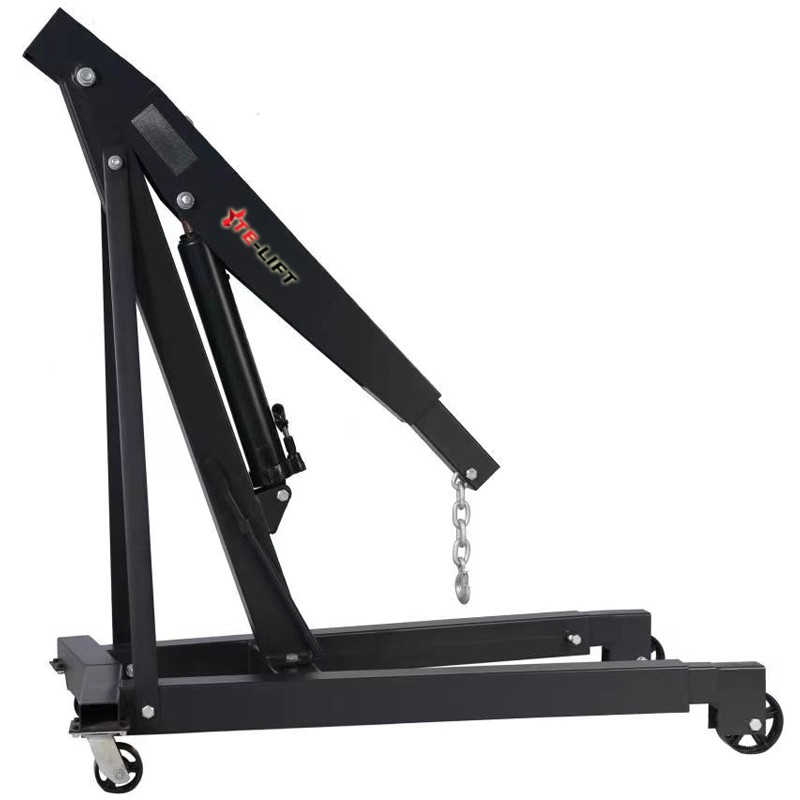

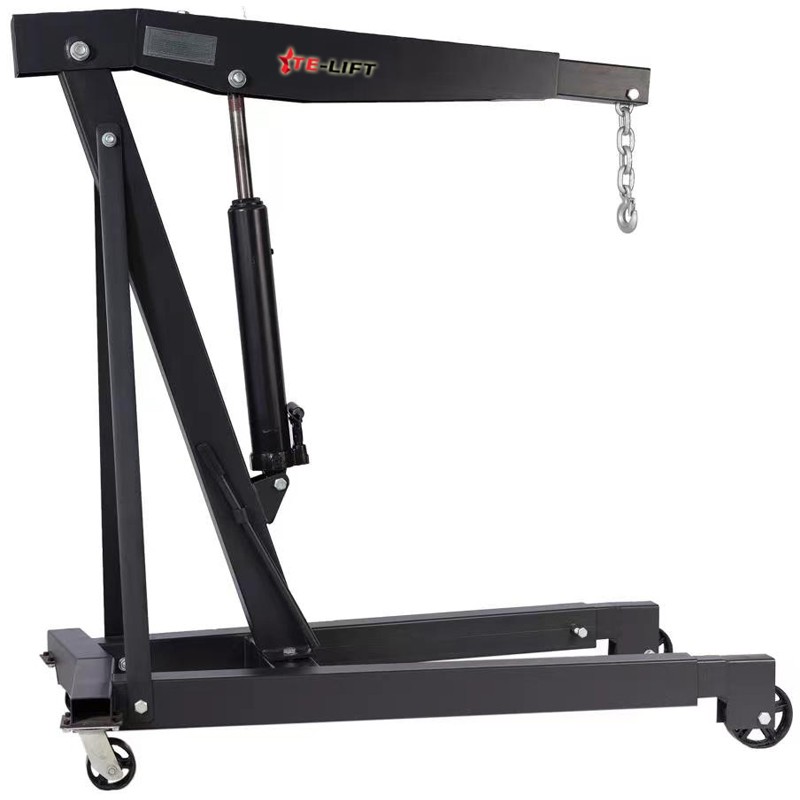

Foldable Shop Crane Adjustable Jib Length Crane
SE series
■ With four hook position, P1, P2, P3, P4.
■ Smooth, quite operation.
■ Hard chrome rams and pump piston.
■ Full swivel hook with safety clip fitted as standard.
■ Controlled lowing with positive stop.
■ With overload valve.
■ Top of stroke by-pass prevents hydraulics locking at full height if overpumped.

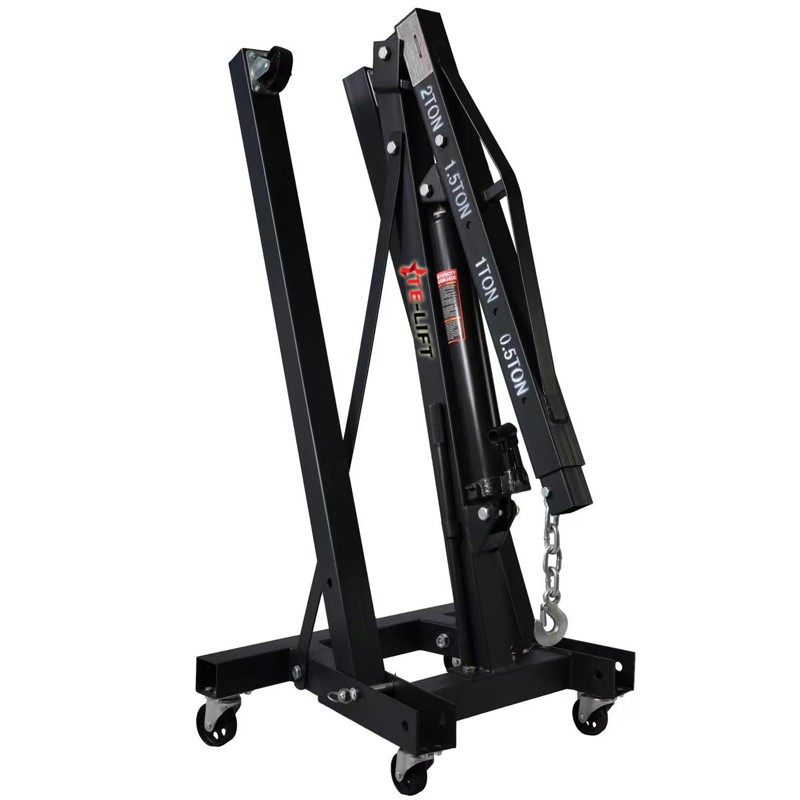

■ Jacks from folded to upright position.
■ With long chain, hook can touch the ground.
■ Disassembled in carton for transport.

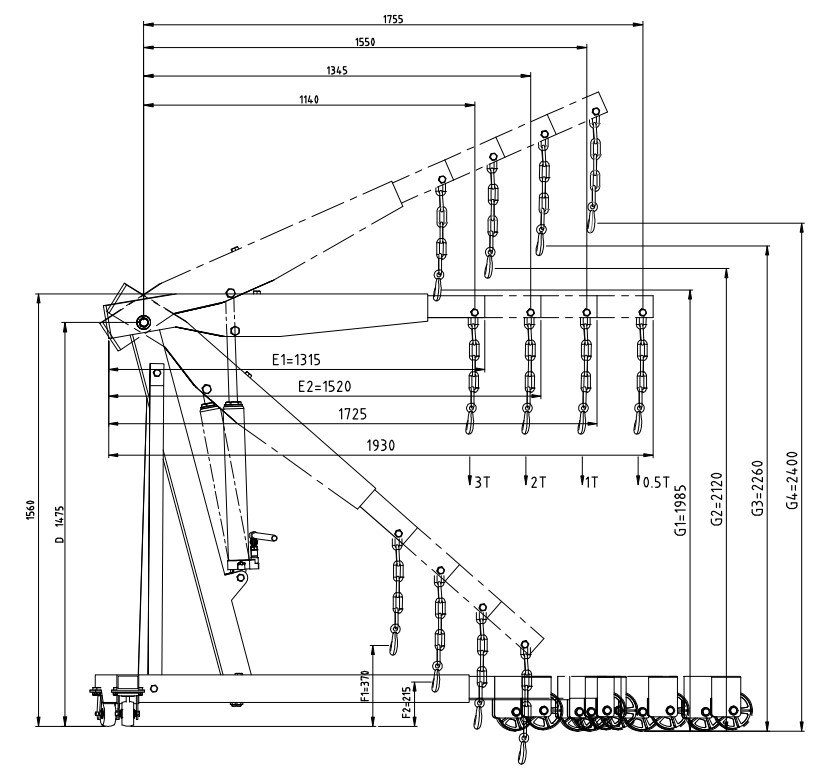

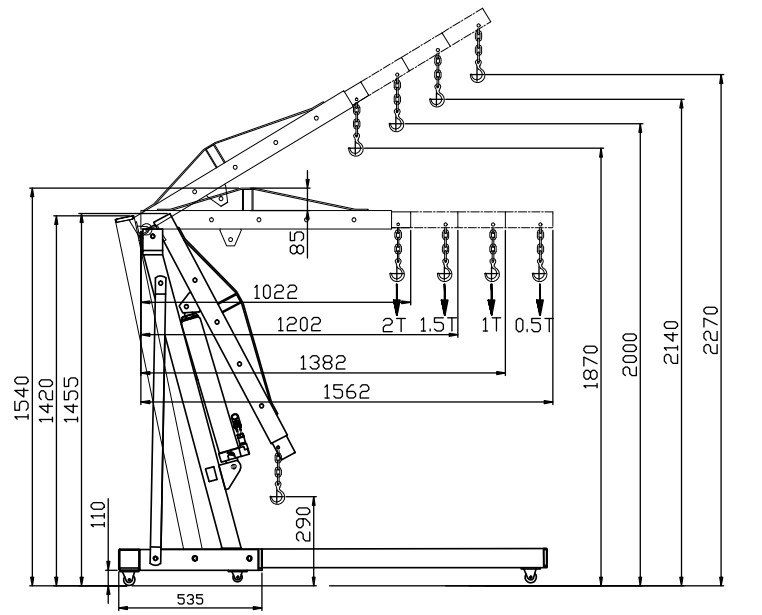

| Model | SE2000 | SE3000 | ||
| Max. Capacity | (kg) | 2000 | 3000 | |
| Capacity at Position | (kg) | P1 | 2000 | 3000 |
| P2 | 1500 | 2000 | ||
| P3 | 1000 | 1000 | ||
| P4 | 500 | 500 | ||
| Max. Hook Height at Position | (mm) | P1 | 1870 | 1985 |
| P2 | 2000 | 2120 | ||
| P3 | 2140 | 2260 | ||
| P4 | 2270 | 2400 | ||
| Jib Length | (mm) | P1 | 1022 | 1315 |
| P2 | 1202 | 1520 | ||
| P3 | 1382 | 1725 | ||
| P4 | 1562 | 1930 | ||
| Net Weight | (kg) | 88 | 112 |
