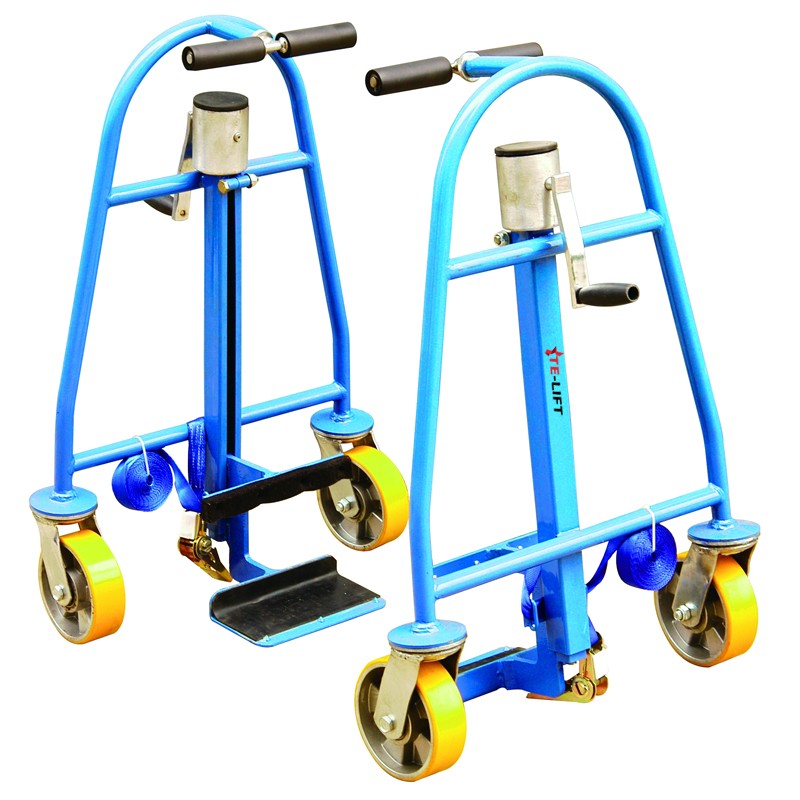

Manual Furniture Mover Winch Type Goods Carrier

Product Item：FM60

Capacity 600kg per set

Lifting Height 300mm

Lifting Plate 225×120mm

Wheel Diameter Φ150(Polyurethane)

Winch Type Goods Carrier Manual Furniture Mover

Model FM60

■ Maximum load capacity 600kg per set.

■ Safety operated by one person.

■ Robust lifting mechanism.

■ Sold in one set only.

■ Including two transport unit with safety spindle winch with safety stop and built-in securing straps. Strap length 5 meters.

■ For bulky and heavyweight items.

■ Ideal for removal, maintenance, installation applicatons.

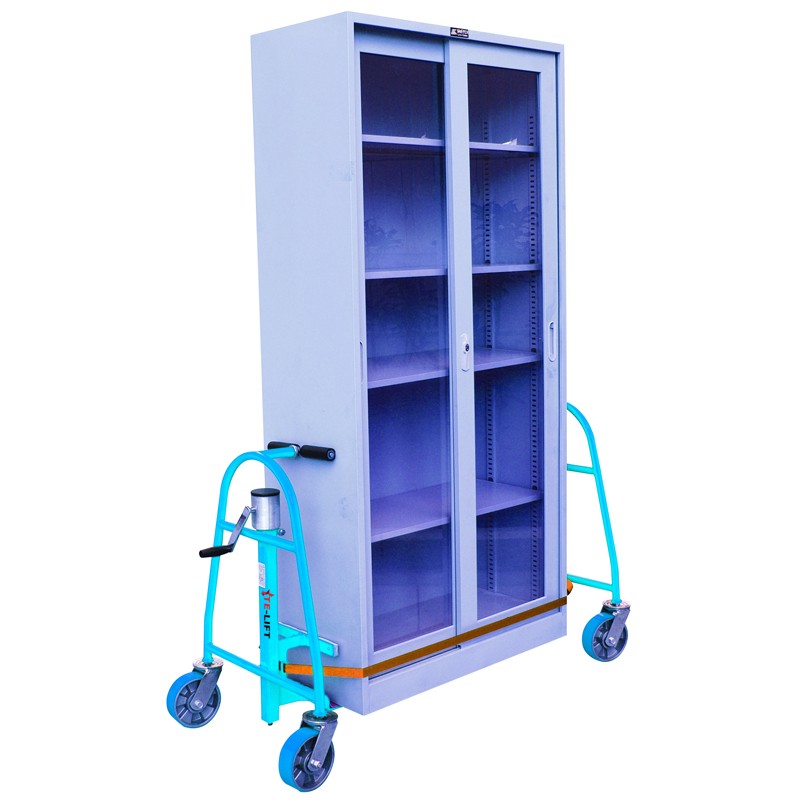

■ Operation: Position lifting plates underneath item to be moved, adjust upper support rail and tension securing straps.

■ Lift item on both sides to equal height and move.

■ Lifting plates with non-slip covering.

■ Upper and lower support rails with protective covering.

■ Winch with crank handle and gear mechanism.

■ 4 swivel castors with roller bearings. Non-marking polyurethane wheel suitable for carpeted flooring.
