Overhead Crane Pallet Lifter with Adjustable Overall Forks Width

Product Item：CC10A, CC15A, CC20A

Capacity 1Tonne 1.5Tonne 2Tonne

Adjustable Fork total width 320-1500mm

Fork Length 1000mm

Adjustable fork height 1650-2095mm

Overhead Load Crane Lifterswith Adjustable Overall Forks Width

CC-A series

■ The Overhead Load Lifters are designed for lifting and moving pallets, skids, and crates in industrial applications.

■ Use with an overhead lifting crane for optimal results.

■ Includes an adjustable bail for keeping the load level when moving.

■ Includes three height positions for use with different sized loads.

■ Welded steel construction and powder coating finish.

■ Available as 1.2, 1.5, & 2.0 Ton Models.

■ Able to safely lift even Large 48" x 48" Pallets.

■ No slings or chains necessary.

■ Crane operator will not need to leave cab of lorry or crane.

■ Forks will remain horizontal when loaded and unloaded.

■ Easily operate by one person with safety.

■ Meets or exceeds all ASME B30.20 Below the Hook Lifting Requirements.

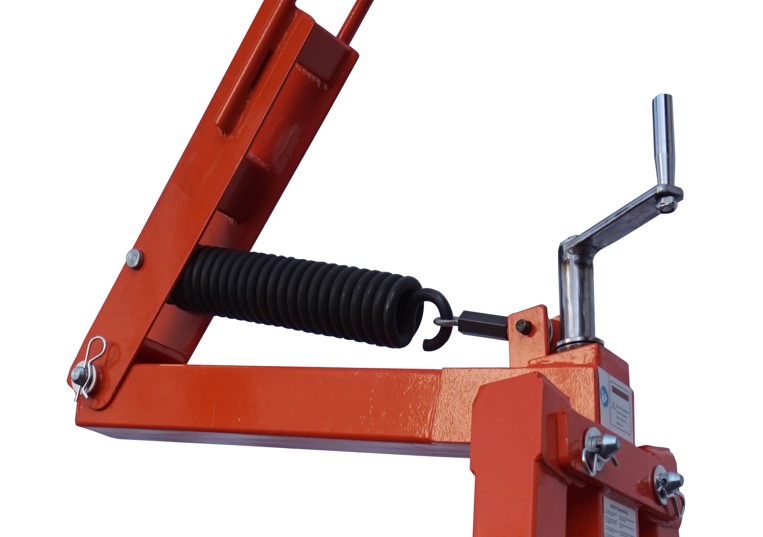

■ Hand winch for adjusting the overall forks width easily.

■ Big spring for automatic balancing and centering of Loads.

Model		CC10A	CC15A	CC20A
Work Load Limit	(kg)	1000	1500	2000
Adjustable Overall Forks Width	(mm)	320-1500	320-1500	320-1500
Fork Length	(mm)	1000	1000	1000
Hook height	(mm)	1650-2095	1650-2095	1800-2270
Individual Fork Size Width×Thickness	(mm)	100×30	100×35	120×40
Net Weight	(kg)	75	115	145
