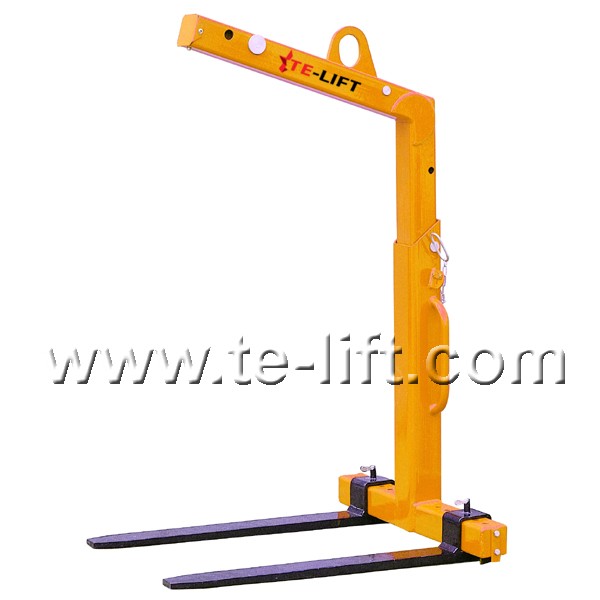

Self Balancing Crane Load Forks

Product Item：CY10, CY15, CY20, CY30, CY50

Capacity 1T~5T

Forged forks length 1000mm or 1200mm

With adjustable overall forks width

With adjustable height

Self Balancing Crane Forks

CY Series

■ Fork length 1200mm as optional.

■ Available as 1.0, 1.5, 2.0, 3.0 & 5.0 Ton Models.

■ Able to safely lift even Large 48" x 48" Pallets.

■ With gas spring inside for self-balancing.

■ Includes Load Retention Chain.

■ Crane operator will not need to leave cab of lorry or crane.

■ Forks will remain horizontal when loaded and unloaded.

■ Adjustable overall forks width with 5 positions.

■ With three positions for adjustable height, to use with different sized loads.

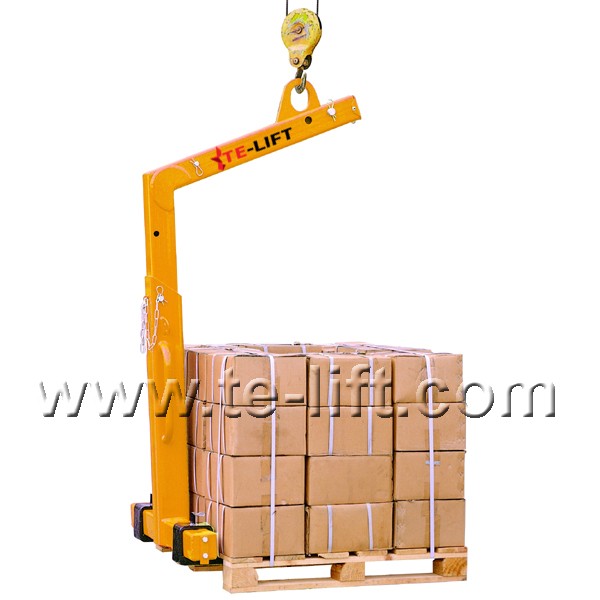

■ The Overhead Load Lifters are designed for lifting and moving pallets, skids, and crates in industrial applications.

■ Use with an overhead lifting crane for optimal results.

■ Includes an adjustable bail for keeping the load level when moving.

■ Welded steel construction. Painted finish.

■ Meets or exceeds all ASME B30.20 Below the Hook Lifting Requirements.

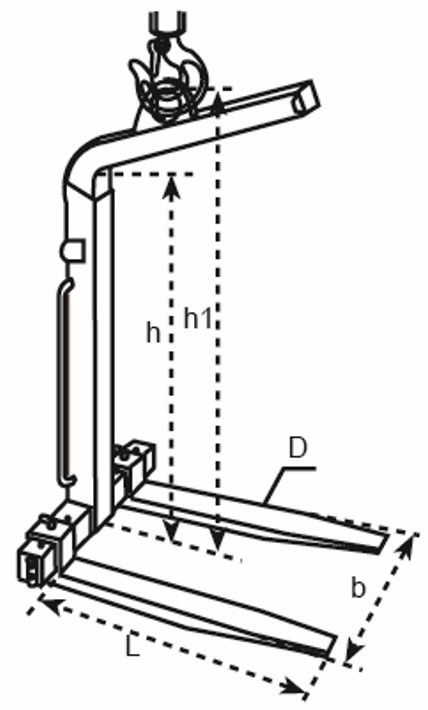

Model	Work Load Limit	Adjustable Overall Forks Width	Hook Height	Effective Height	Fork Length	Individual Fork Size	Overall Size	Net Weight
	wll	b	h1	h	L	D	(L×W×H)
	(tonne)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(kg)
CY10	1	350-900	1420-1920	1100-1600	1000/1200	100×30	1120×920×1530	140
CY15	1.5	350-900	1650-2350	1300-2000		100×40	1120×920×1770	166
CY20	2	400-900	1655-2355	1300-2000		120×40	1140×920×1775	220
CY30	3	450-900	1750-2420	1300-2000		120×50	1140×920×1850	280
CY50	5	530-1000	1710-2410	1300-2000		150×60	1160×1020×1850	380
