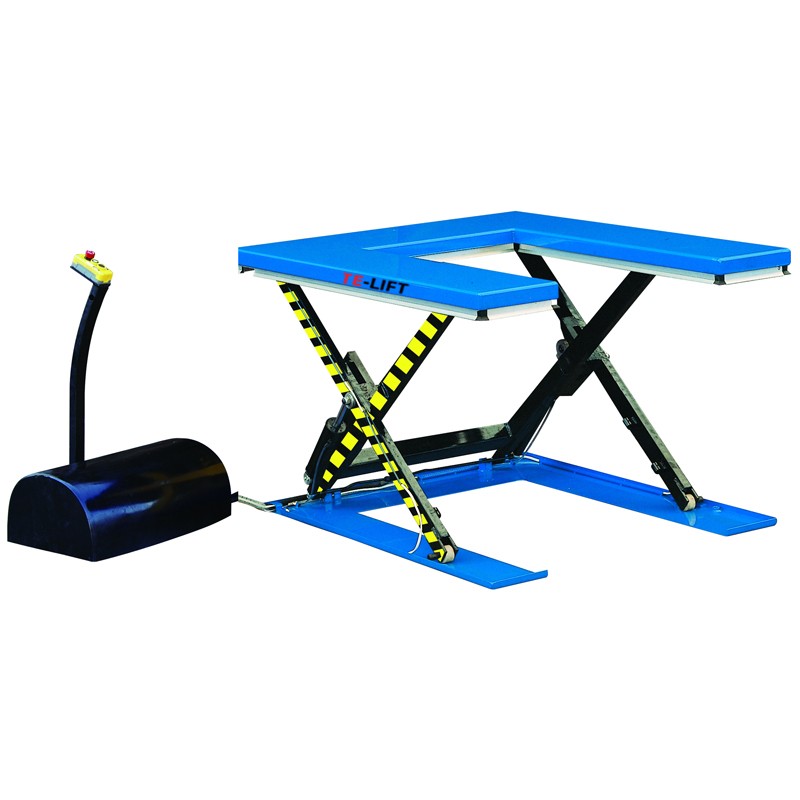

'U' Type Low Profile Hydraulic Electric Static Scissor Lift Table Lifting Platform

Product Item：HU600, HU1000, HU1500

Capacity 600KG, 1000KG, 1500KG

Lowered platform height 85mm or 105mm

380V/50HZ-3Phase or 220V/50HZ-Single phase

AC power

U Type Low Profile Hydraulic Electric Static Scissor Lifting Table Lifting Platform

HU series

■ 'U' Shaped Top Platform.

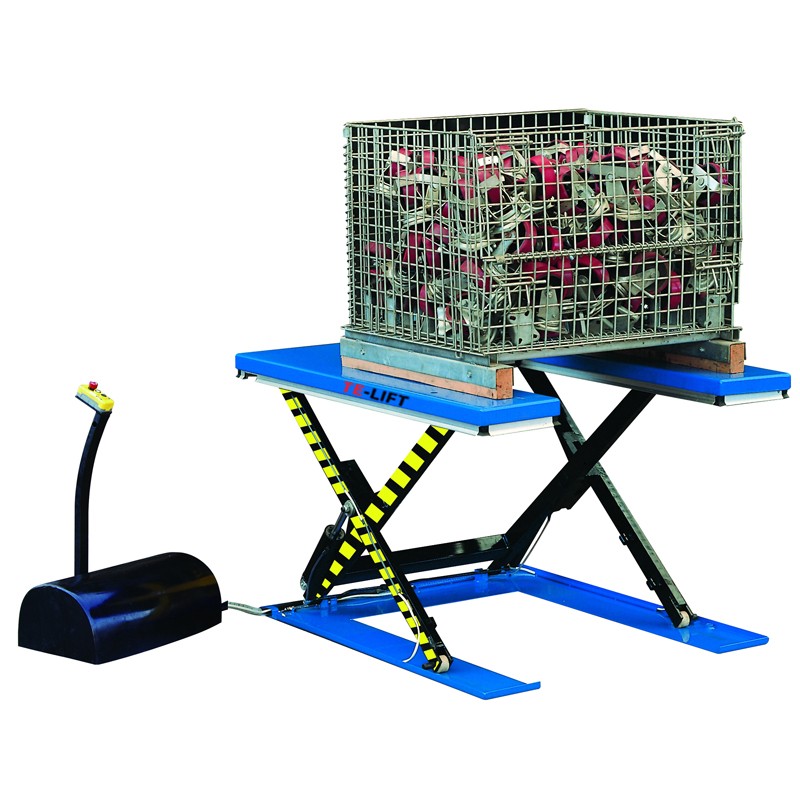

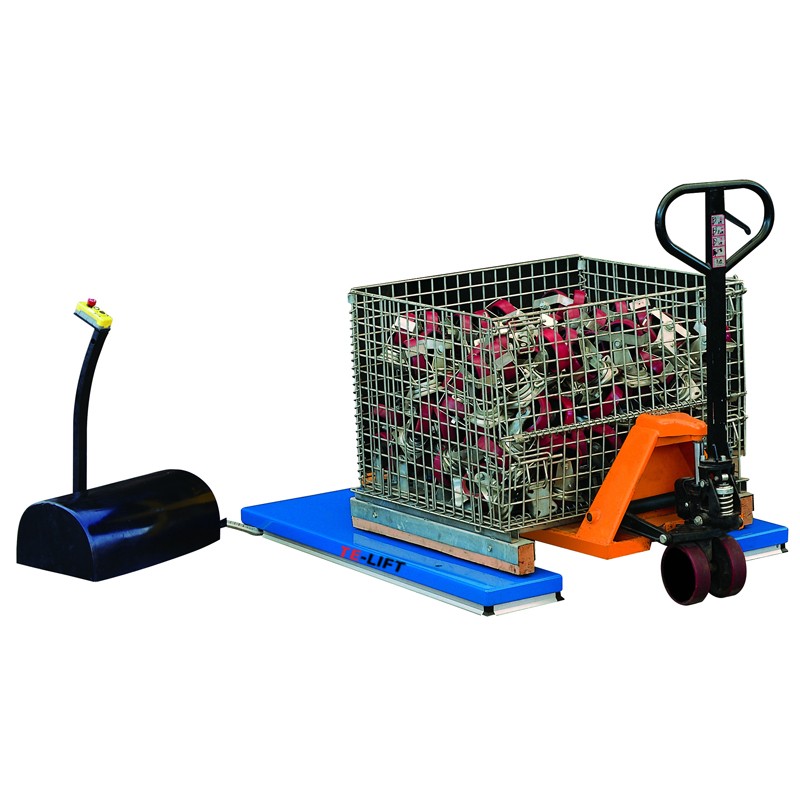

■ 'U' shaped table are specially for handling pallets, no need for a pit or load ramps.

■ They are manufactured to all European safety standards including EN1570:1990.

■ Remote power pack with pedestal and controls ,pretected to IP54.

■ Upper platform fitted with safety perimeter to prevent descent on contact with obstructions.

■ 24V control box with UP and DOWN buttons and emergency stop.

■ External power pack equipped with a relief valve against overloading and a compensated flow valve for controlling lowering speed.

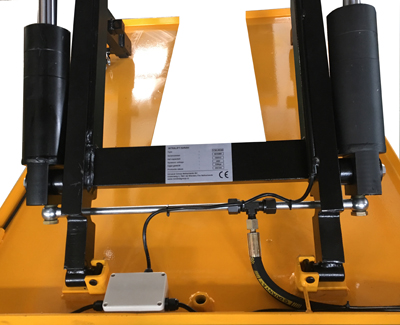

■ Hose burst safety valve to stop the lift table lowering in case of hose breakage.

■ Removable lifting eyes to facilitate handling and installation of the lift table.

■ Mechanical safety chocks for maintenance.

■ Oiless bushings on pivot points.

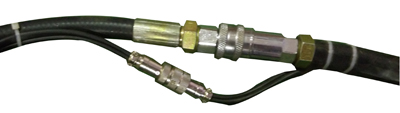

■ Quick assembly joint for oil hose.
