Description

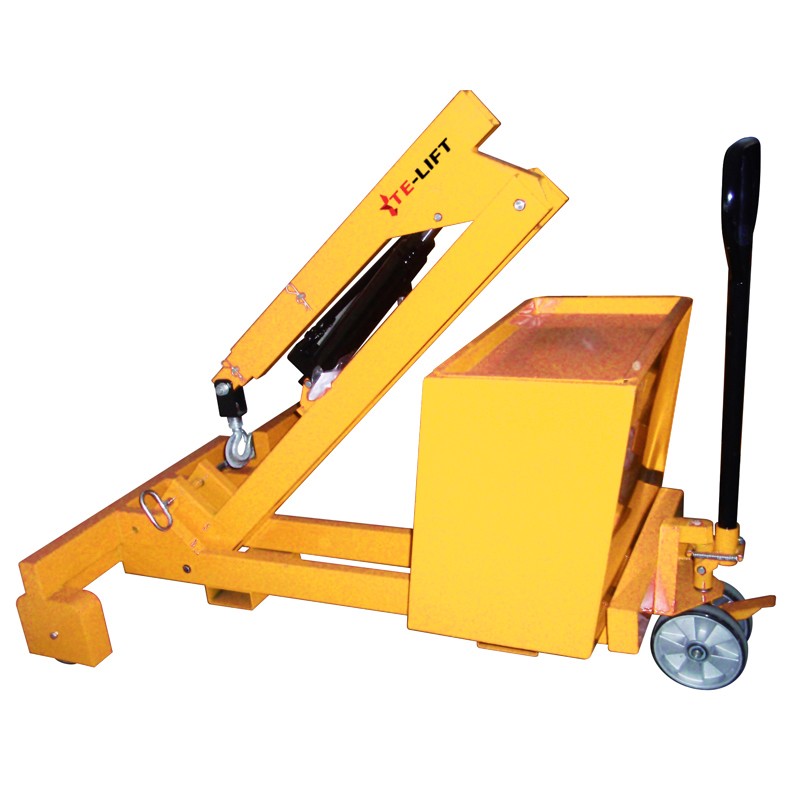

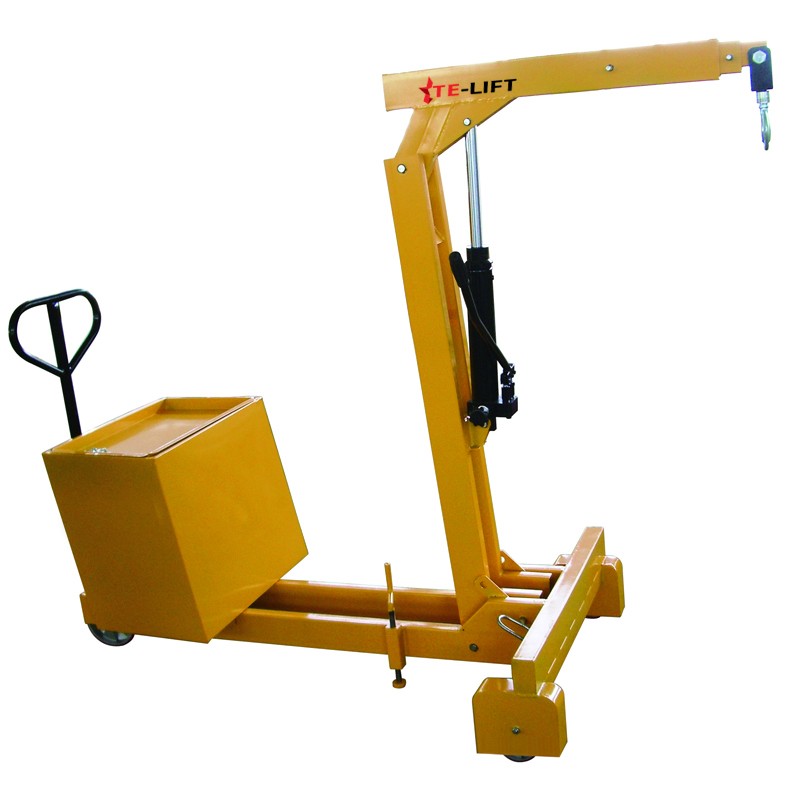

Counter Balance Hydraulic Shop Crane
SCB series■ Counter balanced design is suitable for more applications.

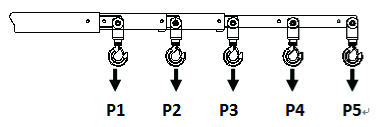

■ Five positions for adjusting the length of the jib, for different applications.
■ Top of stroke by-pass prevents hydraulics locking at full height if overpumped.
■ Chrome plated lifting piston and pump piston.
■ Relief valve to prevent overload.
■ Forged heavy duty swivel hook.
■ 125% overload testing before delivery.
■ Conforms to CE safety standard.
■ Optional double action pump for faster lifting.
| Model | SCB550 | SCB750 | |
| Max Capacity at 5 Positions | (kg) | 150/250/350/450/550 | 190/330/470/610/750 |

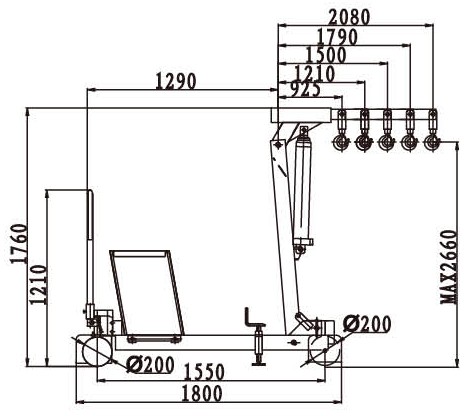

| 5 Adjustable Positions | (mm) | 2080/1790/1500/1210/925 | 2080/1790/1500/1210/925 |
| Balance Weights | (kg) | 300 | 410 |
| Net Weight(with balance weights) | (kg) | 450 | 600 |
