Description

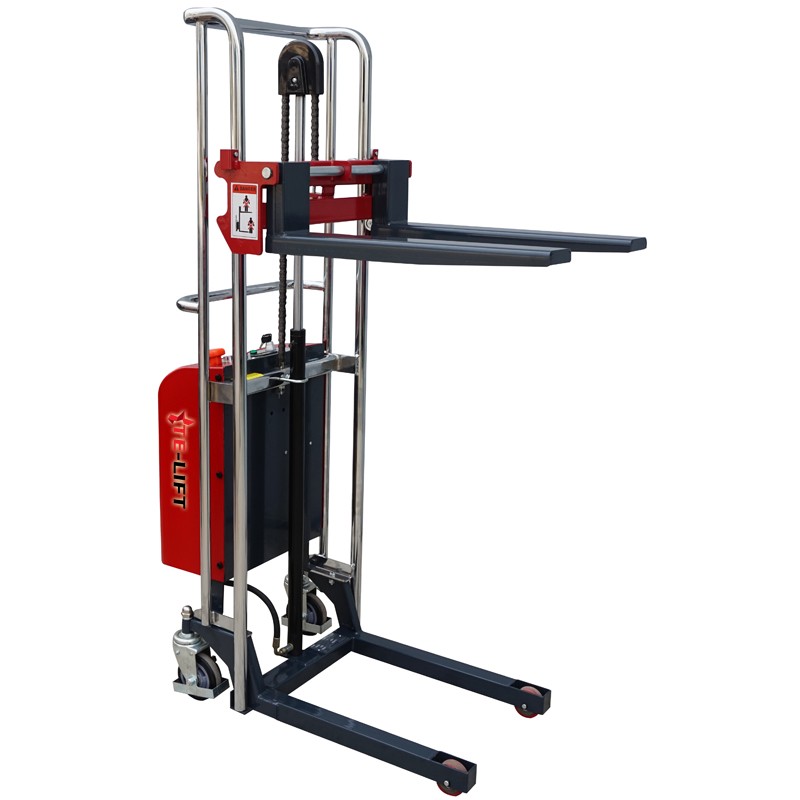

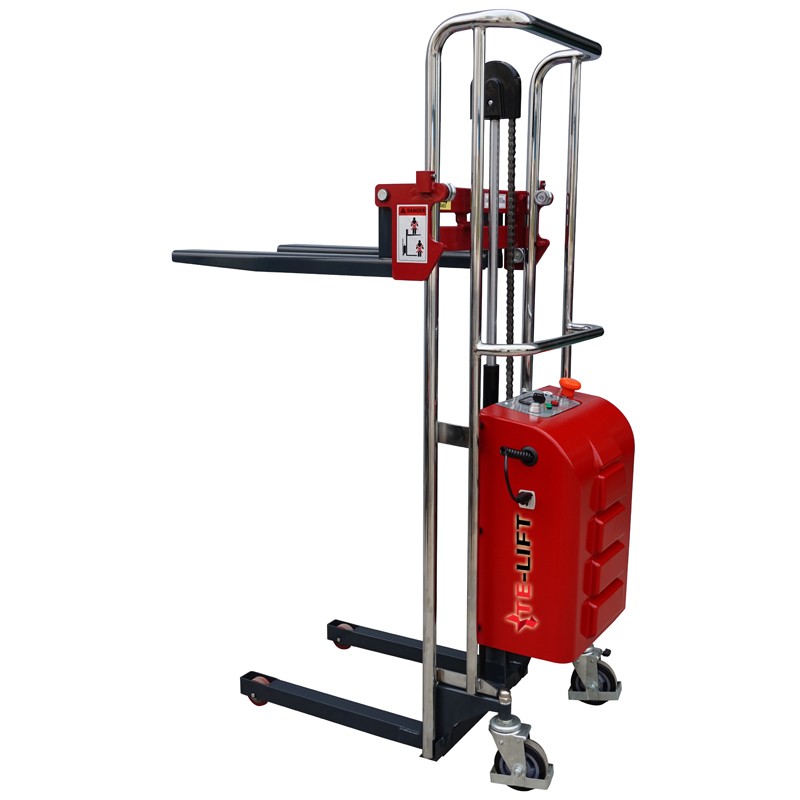

Min Power Forklift Trucks Light Duty Electric Fork Lift Stackers
EJ and EF series
■ EJ series are with adjustable overall fork width, from 220mm to 550mm.
■ EF series are with fixed overall fork width 550mm.
■ Electric lifting makes high-efficiency.
■ Low profile forks(85mm height) can lift the pallet easily.
■ With hard chromium plated pipe frame, light truck weight for easy operation.
■ With polyurethane load rollers and steering wheels, to protect your floor.
■ Service free battery and high quality lifting pump station.

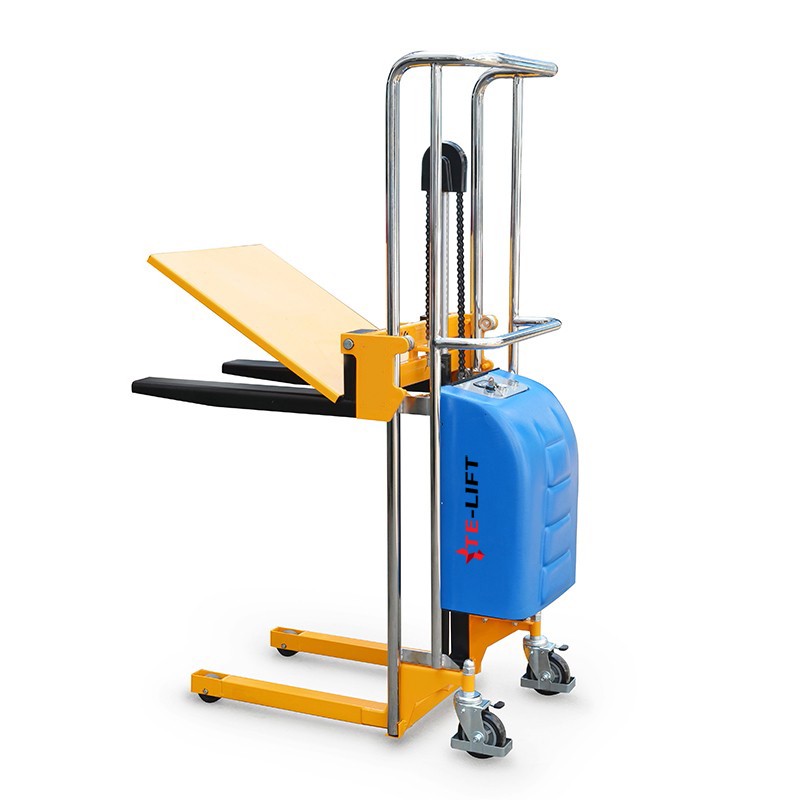

■ Optional Platform LP20 for more application.

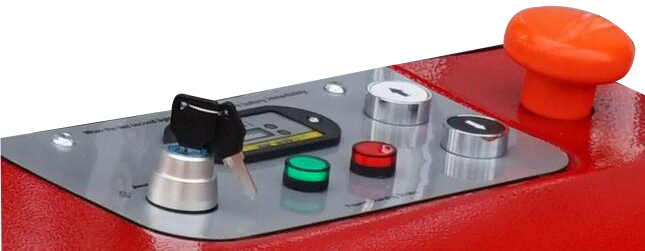

■ Intergrated control panel, include key switch, coulombmeter, lifting button, descending button, indicators and emergency stop button.
Model | Fixed Fork | EF4085 | EF4120 | EF4150 | EF4180 |
Adjustable Fork | EJ4085 | EJ4120 | EJ4150 | EJ4180 | |
Capacity | (kg) | 400 | |||
Max. Fork Height | (mm) | 850 | 1200 | 1500 | 1800 |
Min. Fork Height | (mm) | 85 | |||
Fork Length | (mm) | 650 | |||
Overall Fork Width | (mm) | 550(Fixed Fork)/220-550(Adjustable Fork) | |||
Individual Fork Width | (mm) | 100 | |||
Load Roller Diameter | (mm) | Ф75(PU) | |||
Steering Wheel Diameter | (mm) | Ф125(PU) | |||
Power Unit | (kw) | 0.8 | |||
Battery | (V/Ah) | 12/60 | |||
Overall Size LxWxH | (mm) | 1140x580x1080 | 1140x580x1430 | 1140x580x1730 | 1140x580x2030 |
Net Weight | (kg) | 100 | 121 | 126 | 131 |
