Description

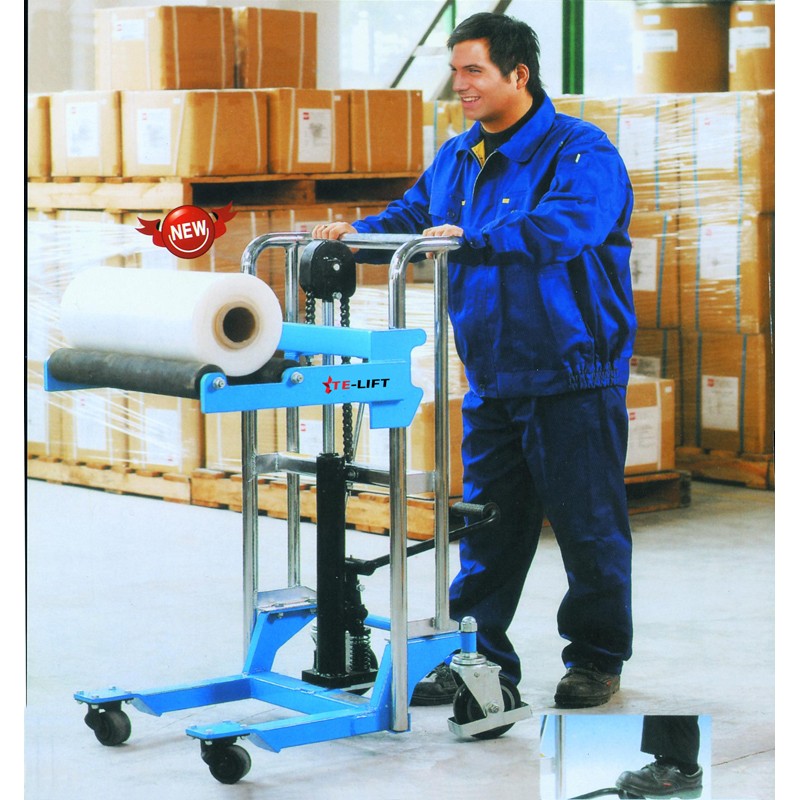

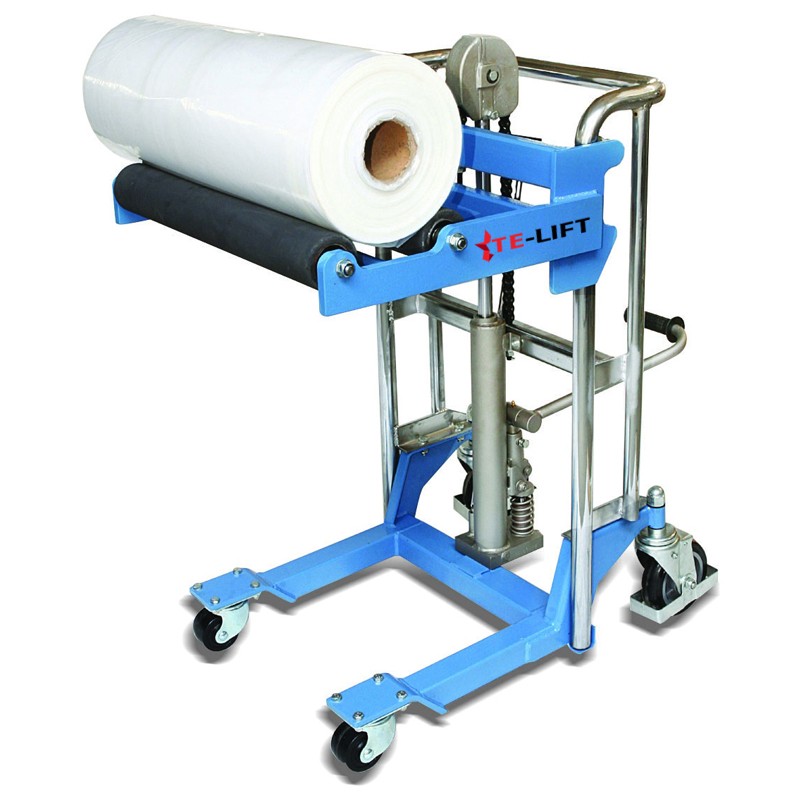

Reel Lifter Roll Work Positioner
PFG series
■ This lifter is designed for printing, packaging and paper industry specially, which used for handling rolls of different materials.
■ Easy to use and operate, and reduce the injuries on the job.
■ Single person can operate it well, that will save labor and time.
■ Best method to avoid the damage of media.
■ With two rubber rollers, which can hold the media carefully, and move the reel in and out easily and safely.
| Model | PFG4085W | PFG4120W | PFG4150W | |
| Capacity | (kg) | 400 | ||
| Max. Rollers Bed Height | (mm) | 870 | 1200 | 1500 |
| Min. Rollers Bed Height | (mm) | 220 | ||
| Suit for Max. Roll Diameter | (mm) | 544 | ||
| Rubber Roller Size Dia.xWidth | (mm) | Φ76x550 | ||
| Distance between Two Rubber Rollers | (mm) | 180 | ||
| Total Length | (mm) | 780 | ||
| Total Width | (mm) | 630 | ||
| Total Height | (mm) | 1070 | 1420 | 1720 |
| Steering Roller Diameter | (mm) | Φ125 | ||
| Load Roller Diameter | (mm) | Φ75 | ||
| Net Weight | (kg) | 72 | 78 | 85 |
