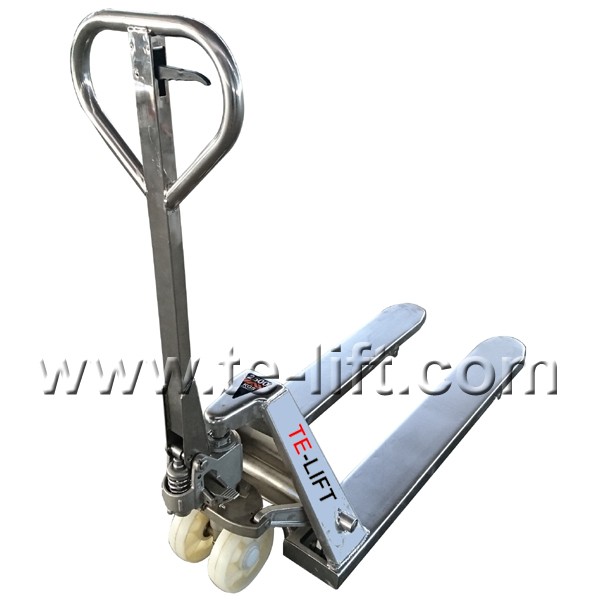

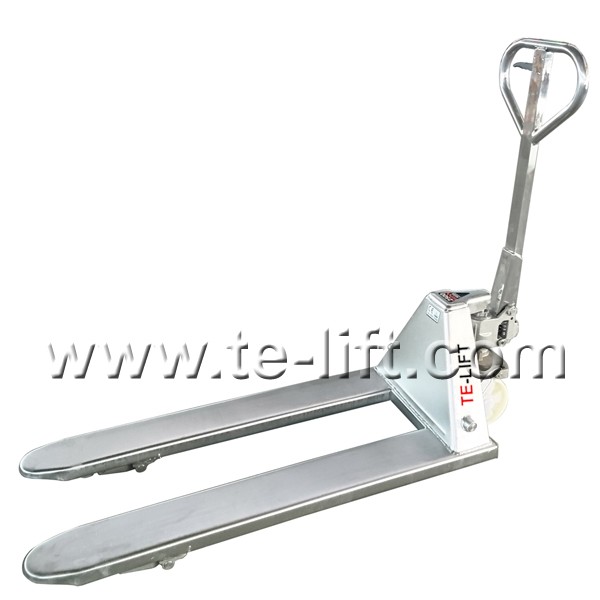

Anticorrosive Stainless Steel Hydraulic Pallet Trucks
BFS series■ All metal parts made completely stainless steel, including hydraulic pump, fork frame, handle, push rod, bearing, pin and bolt, etc…
■ Ideal transport aid for application in damp or harsh environments such as meat or fish processing plants, dairies, pharmaceutical and chemical industry.
■ With pressure relief valve and overload valve to prevent pump damages when loads exceeds weight limits.
■ The enclosed fork tips ensure there is no dead corner where corrosive spatters remains and damages the truck.
■ Specially designed for applications where hygiene is of utmost importance.
■ Nylon steering wheels and fork rollers as standard option for damp or harsh.
■ 75 mm (3") lowered fork height available.
■ The forks size can be customized made.
Model | BFS20S | BFS25S | BFS20L | BFS25L | |
Capacity | (kg) | 2000 | 2500 | 2000 | 2500 |
Overall Forks Width | (mm) | 540 | 685 | ||
Min. Fork Height | (mm) | 85/75 | |||
Max. Fork Height | (mm) | 200/190 | |||
Steering Wheel | (mm) | 200x50/180x50 | |||
Load Roller Single | (mm) | 80x93/74x93 | |||
Load Roller Tandem | (mm) | 80x70/74x70 | |||
Individual Fork Size | (mm) | 160x60 | |||
Fork Length | (mm) | 1000/1100/1150/1220 | |||
Net Weight | (kg) | 75 | 77 | 78 | 80 |
