Description
Big Platform Scissor Lift Trolley Large Table Size Lifting Truck
BS-L and ES-L series

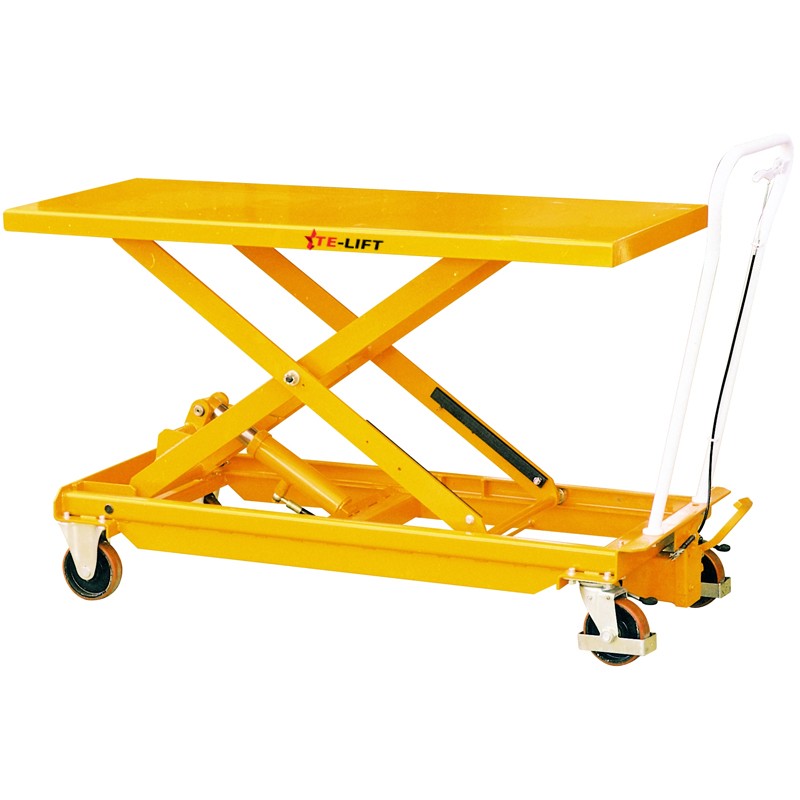

■ BS series are with foot pedal operated hydraulic lifting, split type hydraulic lifting pump.

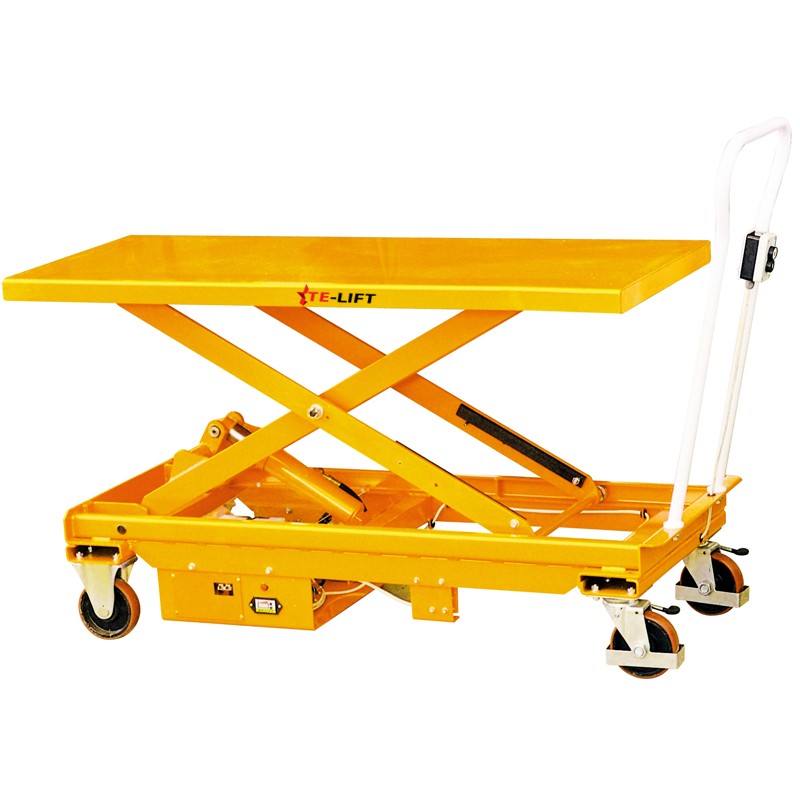

■ ES series are with electric battery operated hydraulic lifting.
■ Super big platform size for special application.
■ Max. Capacity 500kg and 1000kg.
■ Provide a suitable working position or lifting height.
■ Option protection board on handle.
| Model | BS50LA | BS50LB | BS100L | ES50LA | ES50LB | ES100L | |
| Type | Manual Lifting | Electric Lifting | |||||
| Capacity | (kg) | 500 | 500 | 1000 | 500 | 500 | 1000 |
| Table Size LxW | (mm) | 1525x620 | 1200x800 | 1200x800 | 1525x620 | 1200x800 | 1200x800 |
| Min. Table Height | (mm) | 400 | 370 | 425 | 440 | 430 | 430 |
| Max. Table Height | (mm) | 1100 | 1190 | 1225 | 1150 | 1220 | 1220 |
| Power Pack | (w) | -- | -- | -- | 800 | 800 | 800 |
| Battery | (V/Ah) | -- | -- | -- | 12/80 | 12/80 | 12/80 |
| Net Weight | (kg) | 175 | 160 | 163 | 215 | 220 | 225 |
