Description

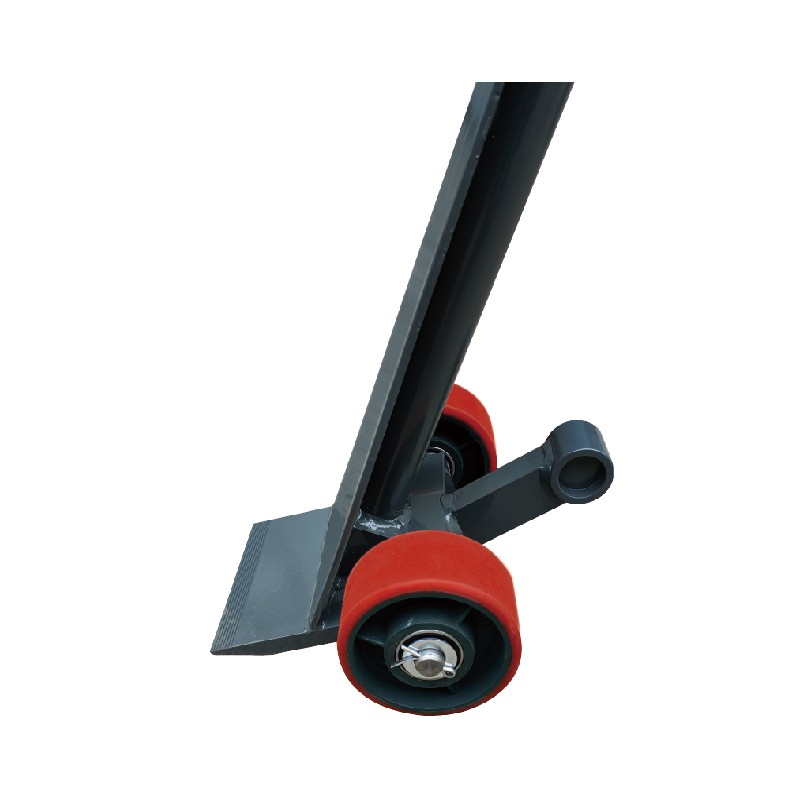

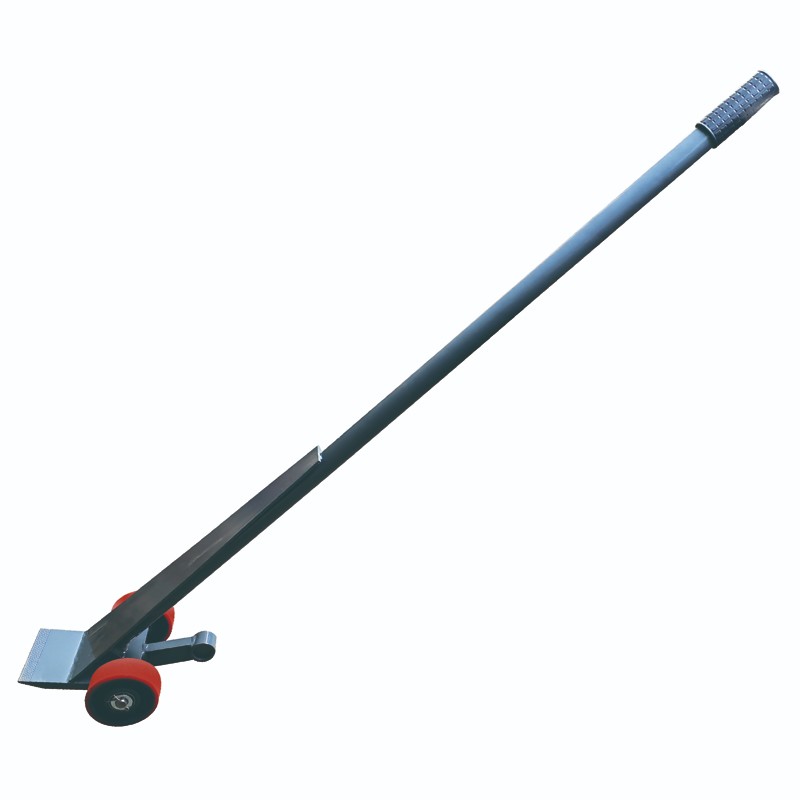

Steel Pry Lever Bar
PLB series
■ The Steel Pry Lever Bar is idea for dock workers, riggers and freight handlers.
■ The Steel Pry Lever Bar allows the user to get under heavy objects for precise positioning.
■ The unit is constructed of steel with a powder coating for long lasting life and durability.
■ With 5FT, 6FT, 7FT length.
■ Capacity 5000lbs(2300kg).
■ Pry Lever Bar design provides personal with the needed leverage.
■ Thick steel nose plate with beveled edge allows user to easily get under loads.
■ Polyurthane-on-Steel wheels offer a strong durable base.
■ Bar length gives user the ergonomic edge to avoid injury.
| Model | PLB-5S | PLB-6S | PLB-7S | |
| Capacity | (tonne) | 2.3 | ||
| Bar Length | (mm) | 1525 | 1825 | 2130 |
| Caster and Bearing Size | (inch) | 5"x2"(6204-2Z) | ||
| Caster Quantity | (pcs) | 2 | ||
| Caster Material | (mm) | Polyurethane-on-Steel | ||
| Nose Plate Width/Length | (mm) | 150x88 | ||
| Usable Lip | (mm) | 88 | ||
| Diameter of Bar | (mm) | Φ43*3 | ||
| Nose Plate Thickness | (mm) | 16 | ||
| Ovearall Size LxWxH | (mm) | 1545x290x335 | 1845x290x335 | 2145x290x335 |
| Net Weight | (kg) | 18.5 | 19.5 | 20.5 |
