Description

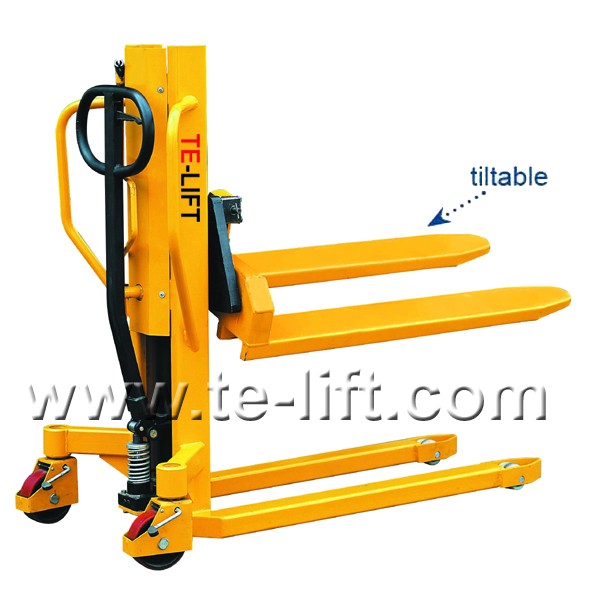

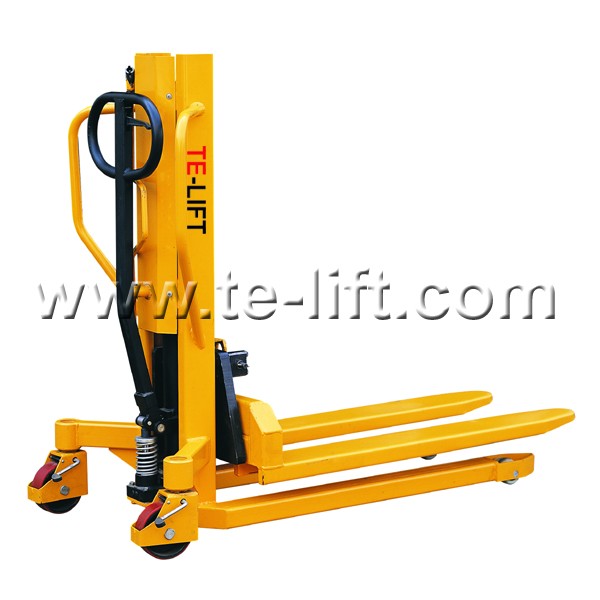

Manual Hydraulic Pallet Tilting Truck Pallet Lateral Tilter
Model LT0892
■ Designed to give the user an ergonomically correct position to reach loads easily without the necessary of bending down or stretching up.
■ Combination of pallet lifting and pallet tilting.
■ Forks can be titled up to 20° both left and right sides by thread.
■ With big handle in mast, easy to push or pull.
■ Supplied as standard with packing brake and foot protectors.
■ Conforms to EN1757-1.
| Model | LT0892 | |
| Capacity | (kg) | 800 |
| Min. Fork Height | (mm) | 88 |
| Max. Fork Height | (mm) | 920 |
| Fork Length | (mm) | 1150 |
| Overall Forks Width | (mm) | 540 |
| Individual Fork Width | (mm) | 150 |
| Titable Degree | left or right 20° | |
| Net Weight | (kg) | 210 |
