Description

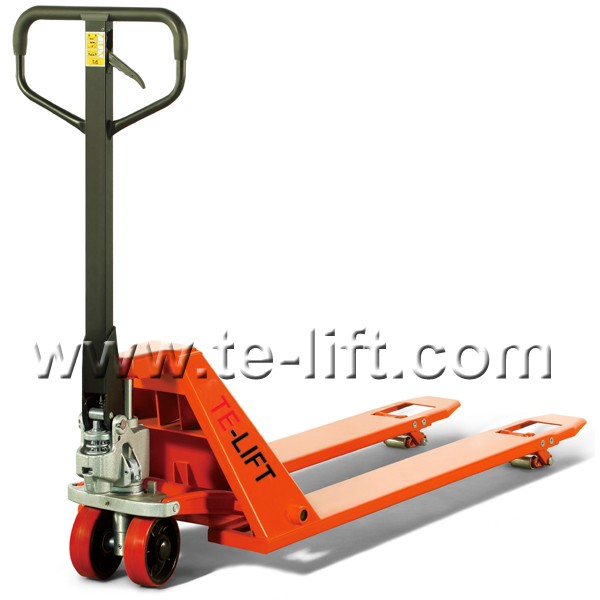

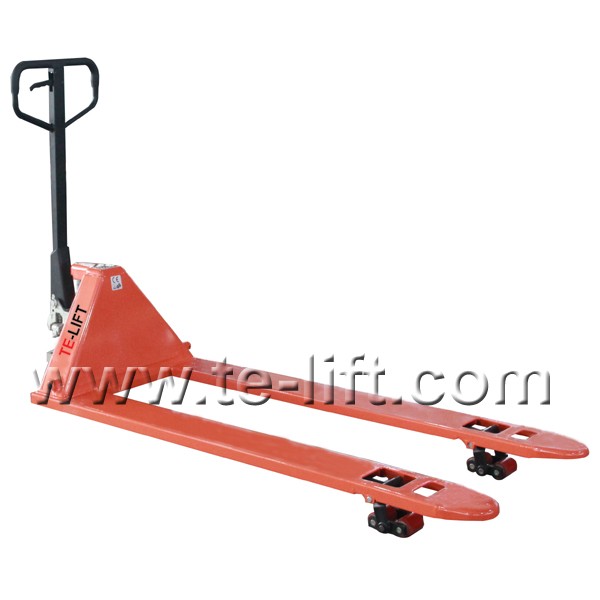

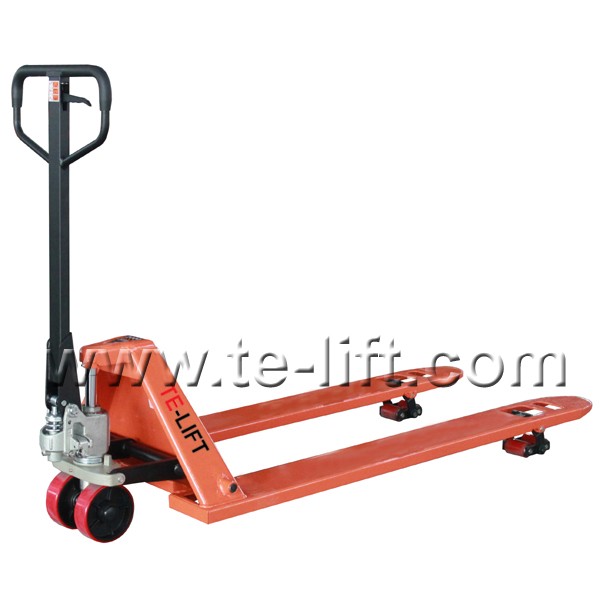

Low Profile Forks Hydraulic Pallet Jacks 35mm and 51mm Forks Height
ACL and ACM series
■ Min. Height: 35mm, 51mm only! For super low pallet.
■ Easy access to the lowest pallets and containers with the minimum floor clearance of 35mm and 51mm only.
■ Your handy choice to handle the low pallets which can only be handled by counterbalanced forklifts.
■ Rollers: Polyurethane for ACL model, Steel for ACM model.
■ Steering wheels: Nylon, Polyurethane or Rubber.
■ Conforms to EN1757-2.
Model | ACL20S | ACL20L | ACM10S | ACM10L | |
Type | Low Profile | Super Low | |||
Capacity | (kg) | 2000 | 2000 | 1000 | 1000 |
Min. Fork Height | (mm) | 51 | 51 | 35 | 35 |
Max. Fork Height | (mm) | 165 | 165 | 90 | 90 |
Overall Forks Width | (mm) | 540 | 685 | 540 | 685 |
Fork Length | (mm) | 1000/1100/1150/1220 | |||
Net Weight | (kg) | 75 | 79 | 70 | 74 |
