Description

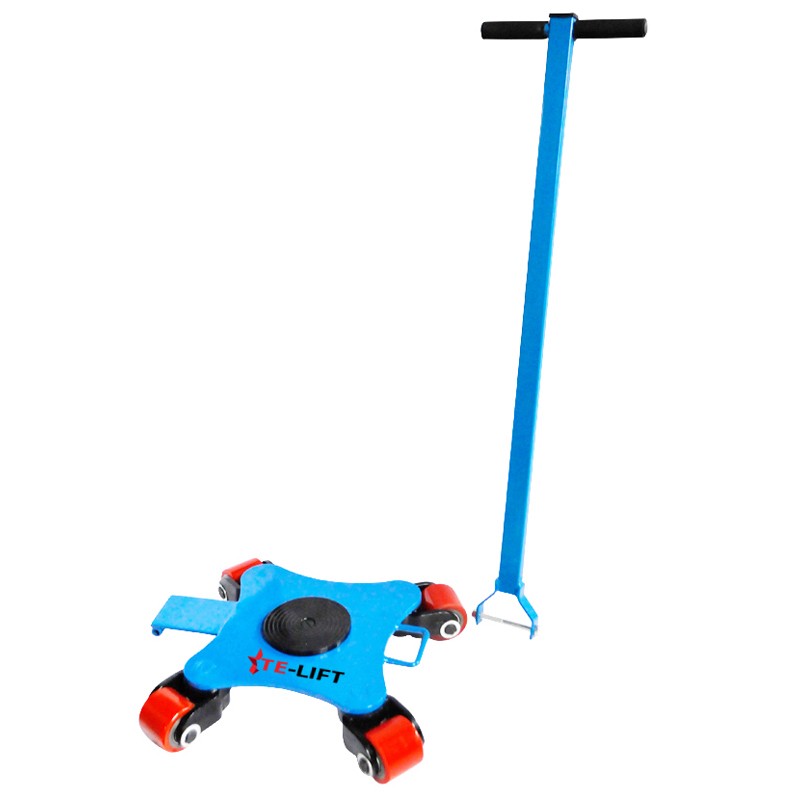

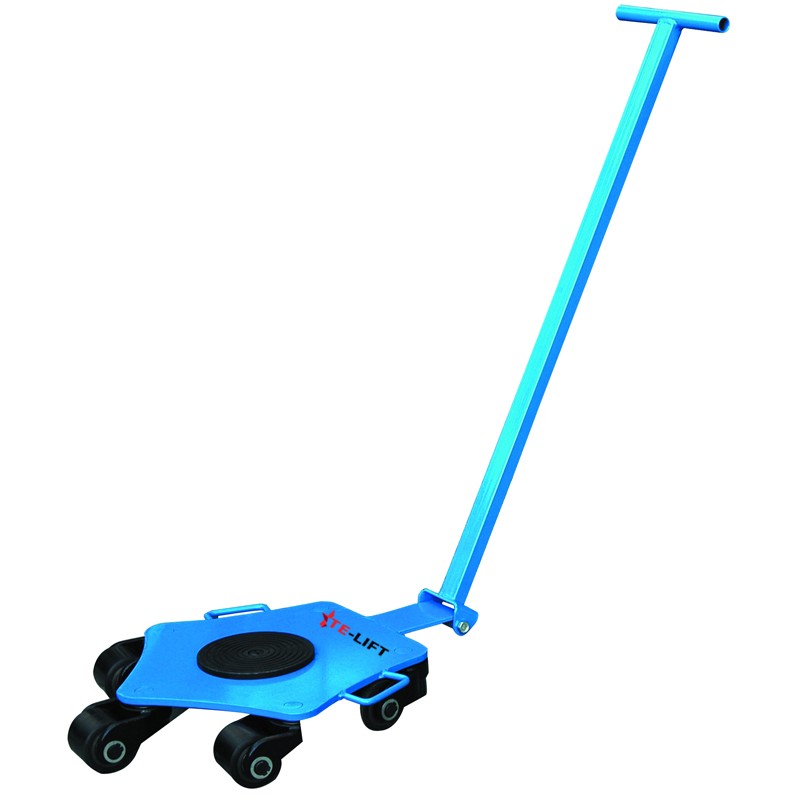

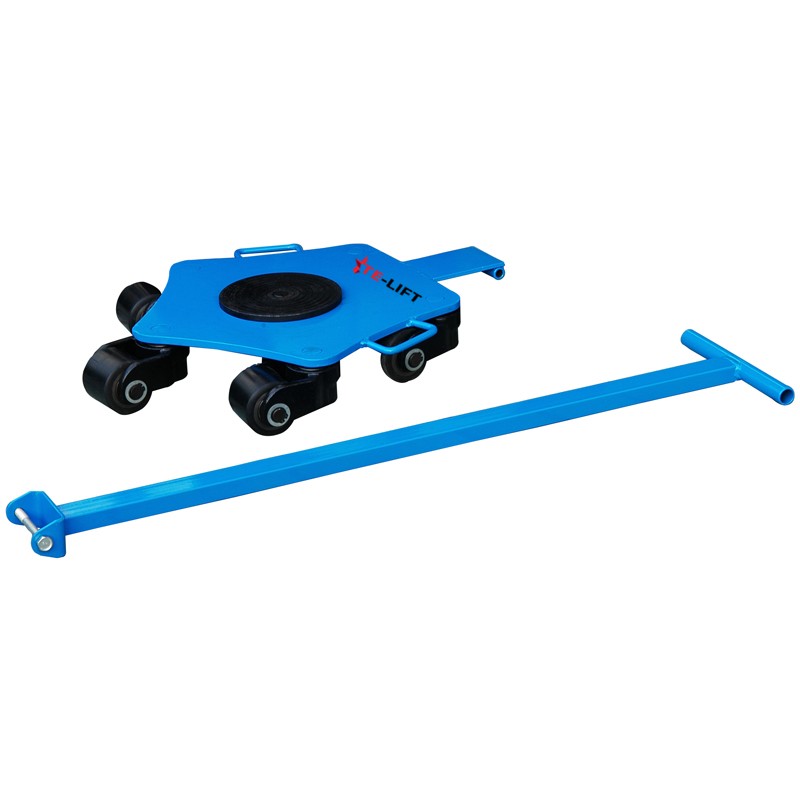

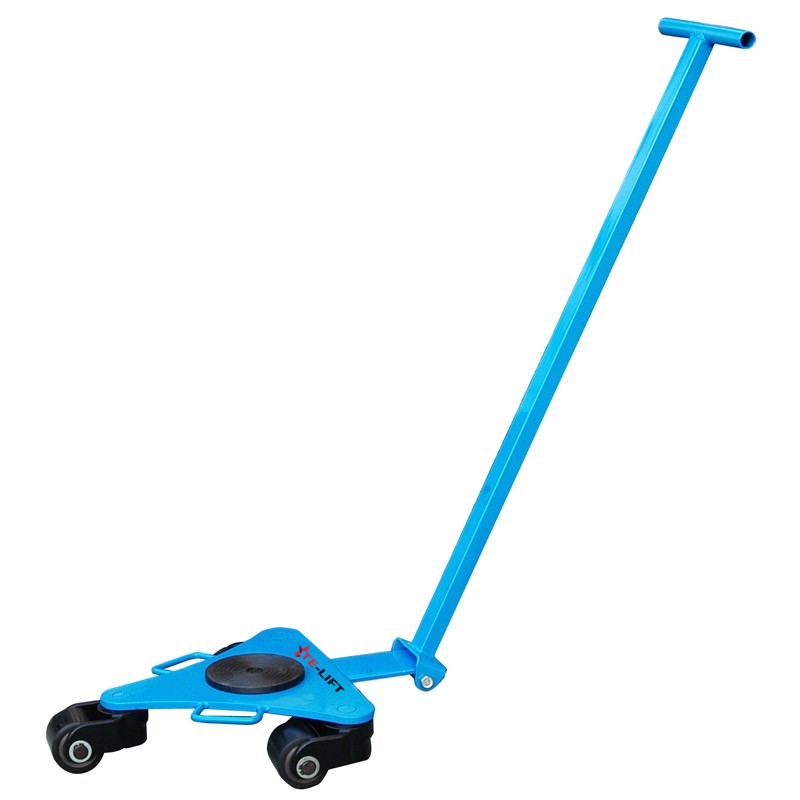

Rotating Roller Machine Skates
WCRP series■ Drawbar is as standard configuration, without drawbar as optional.
■ 360 degree rotating rollers provide with maximum maneuverability.
■ With turntable on the top.
■ With small handle for easy carrying the skates.
■ Polyurthane rollers as standard, nylon rollers as optional.
■ For short, variable transportation distances.
■ For the easy and safe transport of heavy objects.
■ The drawbar give you precise control making it easy to manoeuvre large machinery or into tight areas.
■ Moving speed no exceeding 5m/min.
■ The track surface is important for the safe transportation of the load, not the carrying capacity of the Roller Skate.
■ Due to the little effort required to overcome the rolling resistance(4-7% of the total load) precautionary measures must be taken for use on inclined surfaces.
Model | WCRP-3 | WCRP-4 | WCRP-5 | |
Load Capacity | (tonne) | 2 | 3 | 4 |
Number of Rollers | (pcs) | 3 | 4 | 5 |
Roller Size Dia.xW | (mm) | Φ80x70 | Φ80x70 | Φ80x70 |
Diameter of Rotating Platform | (mm) | 150 | 150 | 200 |
Platform Height | (mm) | 110 | 110 | 110 |
Net Weight | (kg) | 21 | 29 | 35 |
