Description

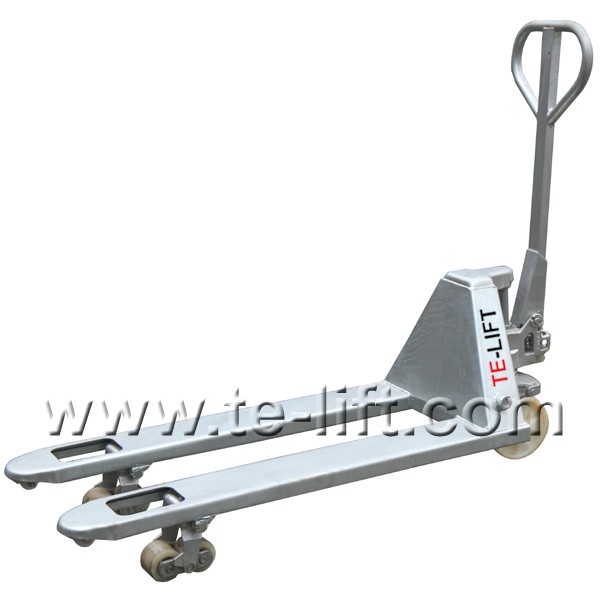

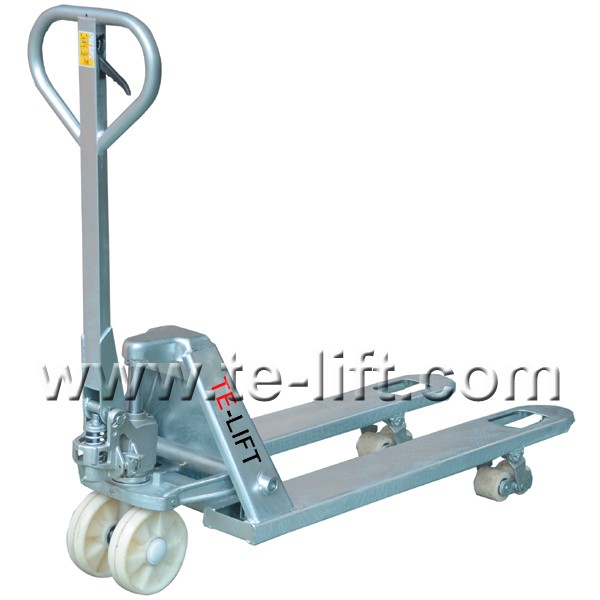

Galvanized Hydraulic Pallet Jack Zinc Plated Manual Forklift
ACG series
■ Ideal transport aid for application in damp or harsh environments such as meat or fish processing plants, dairies, pharmaceutical and chemical industry.
■ All the exposed parts of the whole truck galvanized, including hydraulic pump, fork frame, handle and so on.
■ Special application in cold and wet environments resists the effects of cold, condensation and washing.
■ Nylon steering wheels and fork rollers as standard option for damp or harsh.
■ Hot-dipped galvanizing technology offers longer span life and prevent corrosion.
■ For use in corrosive environment, cold room or clean room applications.
■ Chrome plated piston and valve.
■ Galvanized structure including fork frame, wheel frame, push rod, handle.
■ Zink plated AC pump.
■ 75 mm (3") lowered fork height available.
■ The forks size can be customized made.
■ Conforms to EN1757-2.
Model | ACG20S | ACG25S | ACG30S | ACG20L | ACG25L | ACG30L | |
Capacity | (kg) | 2000 | 2500 | 3000 | 2000 | 2500 | 3000 |
Overall Forks Width | (mm) | 540 | 685 | ||||
Min. Fork Height | (mm) | 85/75 | |||||
Max. Fork Height | (mm) | 200/190 | |||||
Steering Wheel | (mm) | 200x50/180x50 | |||||
Load Roller Single | (mm) | 80x93/74x93 | |||||
Load Roller Tandem | (mm) | 80x70/74x70 | |||||
Individual Fork Size | (mm) | 160x60 | |||||
Fork Length | (mm) | 1000/1100/1150/1220 | |||||
Net Weight | (kg) | 76 | 77 | 80 | 79 | 80 | 83 |
