Description

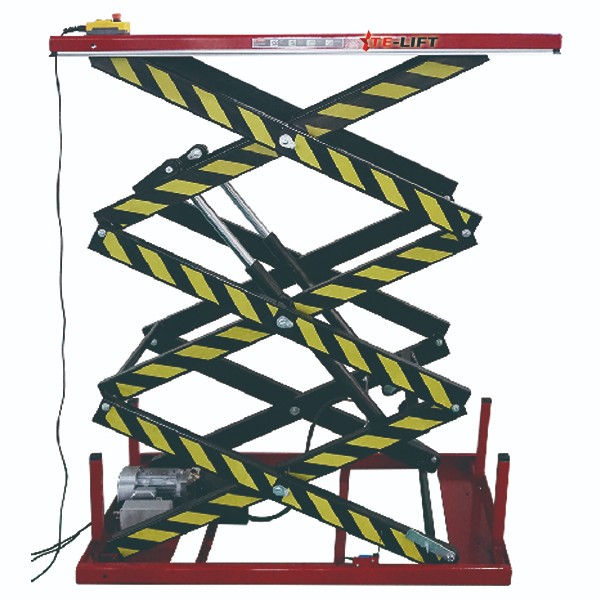

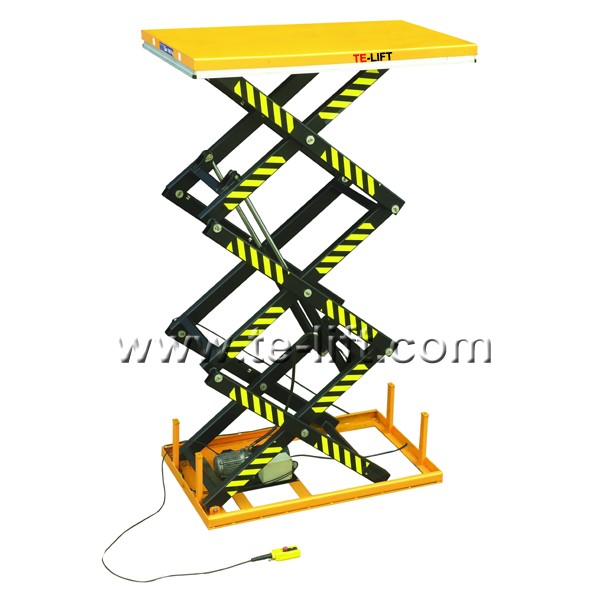

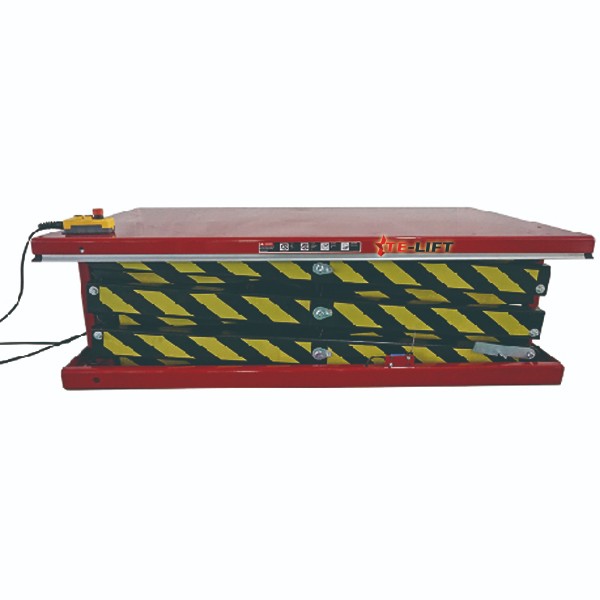

Electric Hydraulic Triple Scissors Goods Lift Tables Elevating Platform
HT series
■ Heavy duty design.
■ Meet EN1570 norm and ANSI/ASME safety standard.
■ These models can be used in above-floor or in-floor pit applications.
Standard Safety Features
■ Internal power pack equipped with relief valve against overloading and compensated flow valve for controlled lowering speed.
■ Heavy duty cylinders with drainage system and check valve to stop the lift table lowering in case of hose burst.
■ Safety clearance between scissors to prevent trapping during operation.
■ Upper platform lifted with aluminum safety bar preventing descent on contact with obstructions.
Other Standard Features
■ Removable lifting eye to facilitable handling and lift table installation.
■ Self lubricating bushings on pivot points.
| Model | HT1000 | HT2000 | HT4000 | HT5000 | |
| Capacity | (kg) | 1000 | 2000 | 4000 | 5000 |
| Platform Size L×W | (mm) | 1700×1000 | 1700×1000 | 1700×1200 | 2980×2000 |
| Lowered Platform Height | (mm) | 470 | 560 | 625 | 890 |
| Raised Platform Height | (mm) | 3000 | 3000 | 3200 | 5100 |
| Base Frame Size L×W | (mm) | 1600×1000 | 1606×1010 | 1610×1140 | 2980×2000 |
| Lift Time | (sec) | 35-45 | 50-60 | 70-80 | 90-105 |
| Power Pack | 380V/50HZ, AC 2.2kw | 380V/50HZ, AC 3kw | |||
| Net Weight | (kg) | 433 | 494 | 910 | 1500 |
