Trailer Stabilizer Rack Jacks

Product Item：TJ60, TJ60A

Static Capacity 45Tonne 100000LBS

Lifting Capacity 22.7Tonne 50000LBS

Service Range 39-1/2~51inch 1000~1300mm

Beam Size 6''/150mm width 24''/610mm length

Description

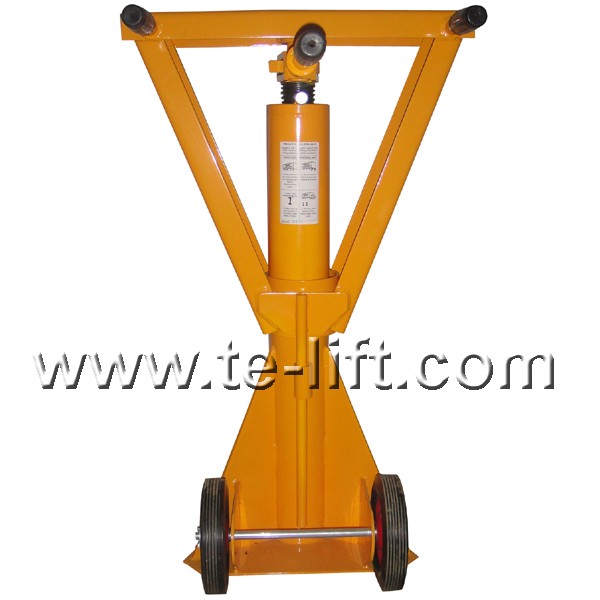

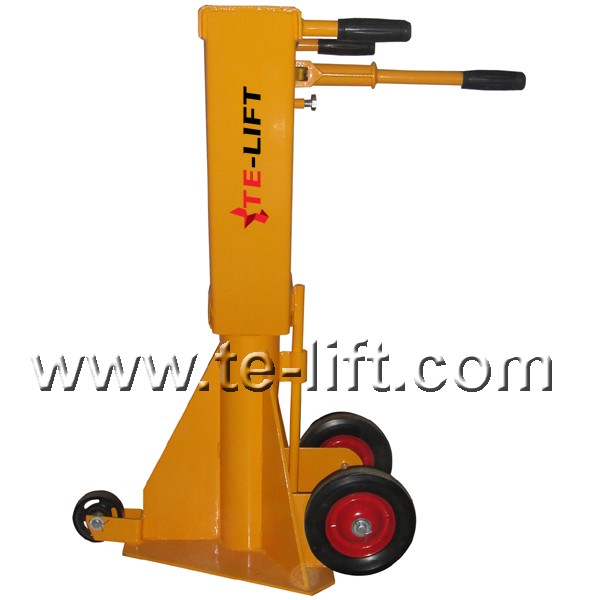

Steel Trailer Stabilizing Rack Jacks

TJ60 and TJ60A

■ Trailer Stabilizing Jacks are used to prevent up-ending semi-trailers when they are not connected to a tractor during loading and unloading operations.

■ A 'must' for safely loading and unloading trailers!

■ Also used to level trailers parked on sloped ground and to prevent landing gear from sinking into a soft surface.

■ High strength steel construction.

■ Flush-type zerk fitting for lubricating ACME screw.

■ Meets OSHA regulations when used with wheel chocks.

Model		TJ60	TJ60A
Service Range	(inch/mm)	39-1/2~51 1000~1300
Static Capacity	(Ibs/tonne)	100000/45	80000/36
Lifting Capacity	(Ibs/tonne)	50000/22.7	40000/18
Beam Size	(inch/mm)	6''/150 width 24''/610 length
Net Weight	(Ibs/kg)	195/88.5	180/82
