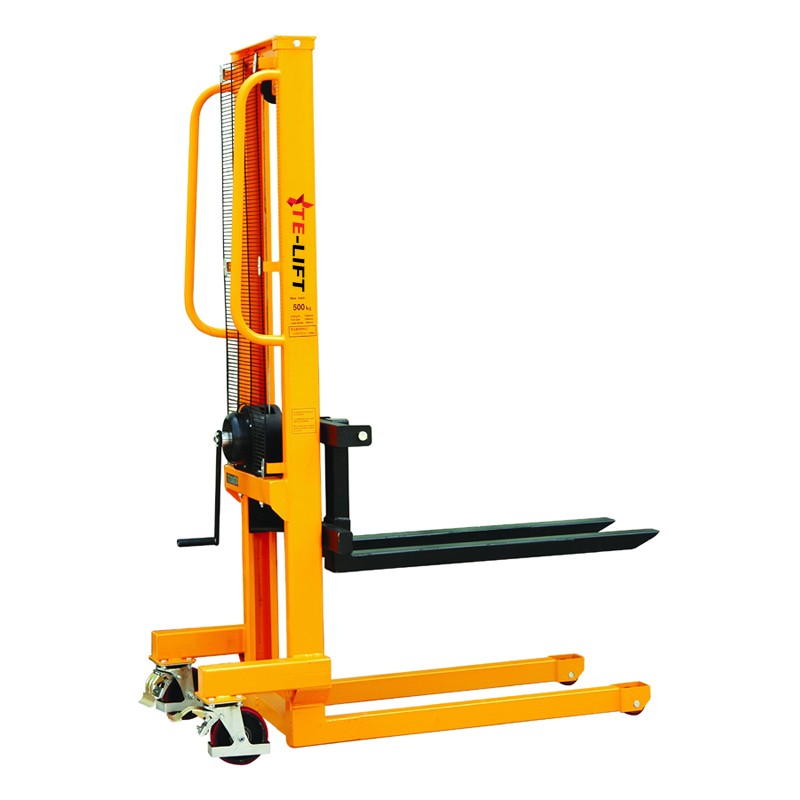

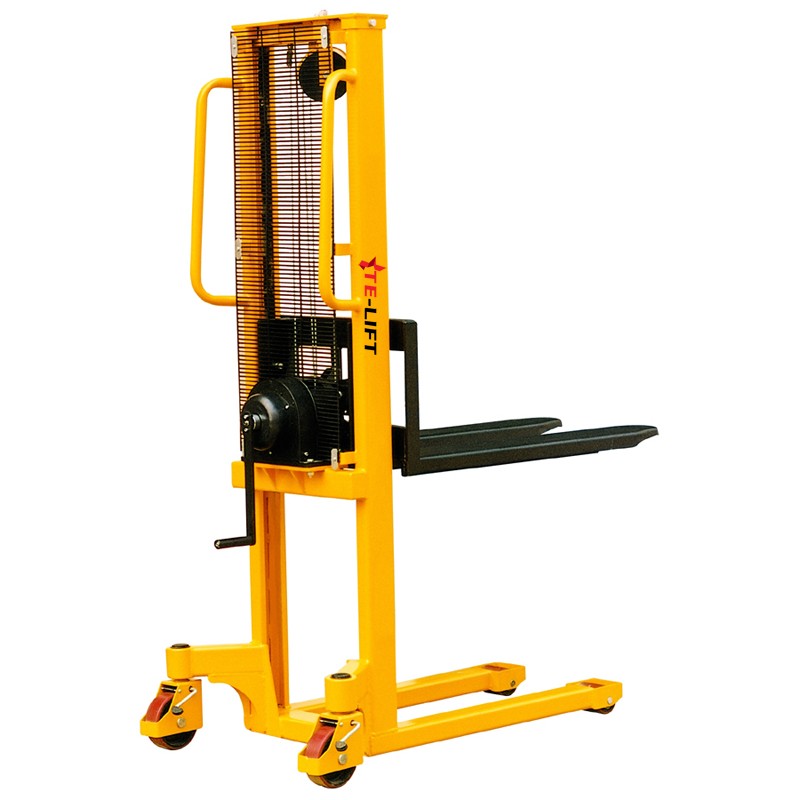

Hand Winch Stackers Manual Winch Forklift Trucks

Product Item：WS25, WS50, WS100

Capacity 250kg, 500kg, 1000kg

Adjustable Overall Forks Width 160-690mm

Max. Fork Height 1560mm, 1500mm

Fork Length 800mm, 1000mm, 1150mm

Manual Winch Forklift Trucks Hand Winch Stackers

WS series

■ Compact and service free design.

■ Unique design of winch for easier and safe lifting, it can be self-lock at any height automatically.

■ Heavy duty 'C' section mast, for max. capacity 1000kg WS100.

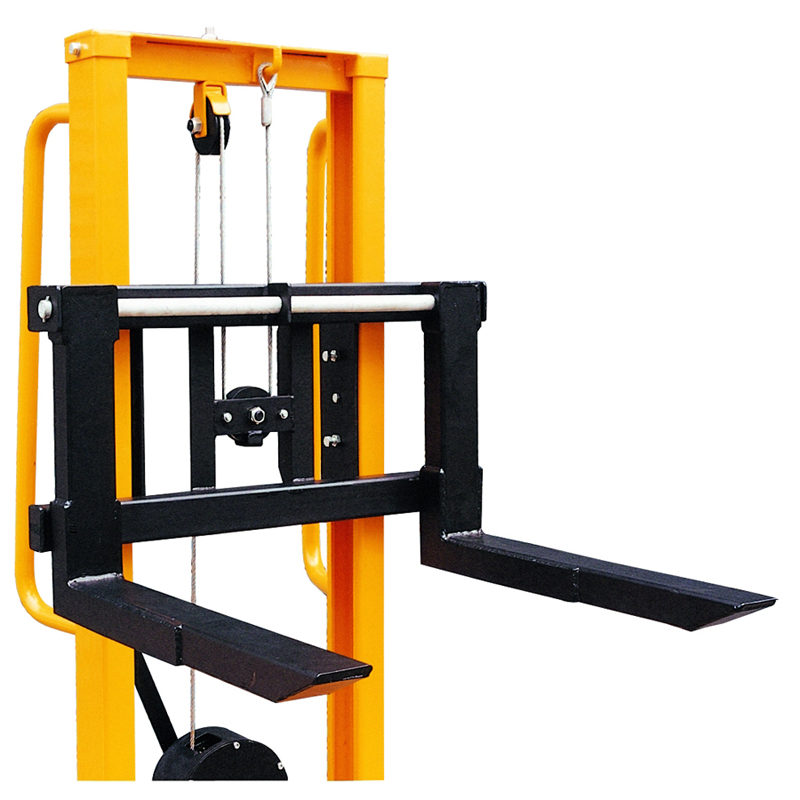

■ With adjustable overall forks width from 160mm to 690mm WS25 and WS50.

■ With big handles in mast, easy to push or pull.

■ Two parking brakes and foot protectors on steering wheels.

■ Conforms to EN1757-1

Model		WS25	WS50	WS100
Capacity	(kg)	250	500	1000
Load Centre	(mm)	400	500	575
Max. Fork Height	(mm)	1560	1560	1500
Min. Fork Height	(mm)	90	90	88
Fork Length	(mm)	800	1000	1150
Adjustable Overall Forks Width	(mm)	160-690	160-690	540(Fixed)
Individual Fork Width	(mm)	60	70	160
Ground Clearance	(mm)	18	18	24
Min. Turning Radius(outside)	(mm)	1075	1075	1250
Front Load Roller Size Dia.xWidth	(mm)	Φ80x47	Φ80x47	Φ80x94
Steering Wheel Size Dia.xWidth	(mm)	Φ150x40	Φ150x40	Φ150x50
Overall Size LxWxH	(mm)	1325x725x2030	1325x725x2030	1600x725x1930
Net Weight	(kg)	140	146	182
