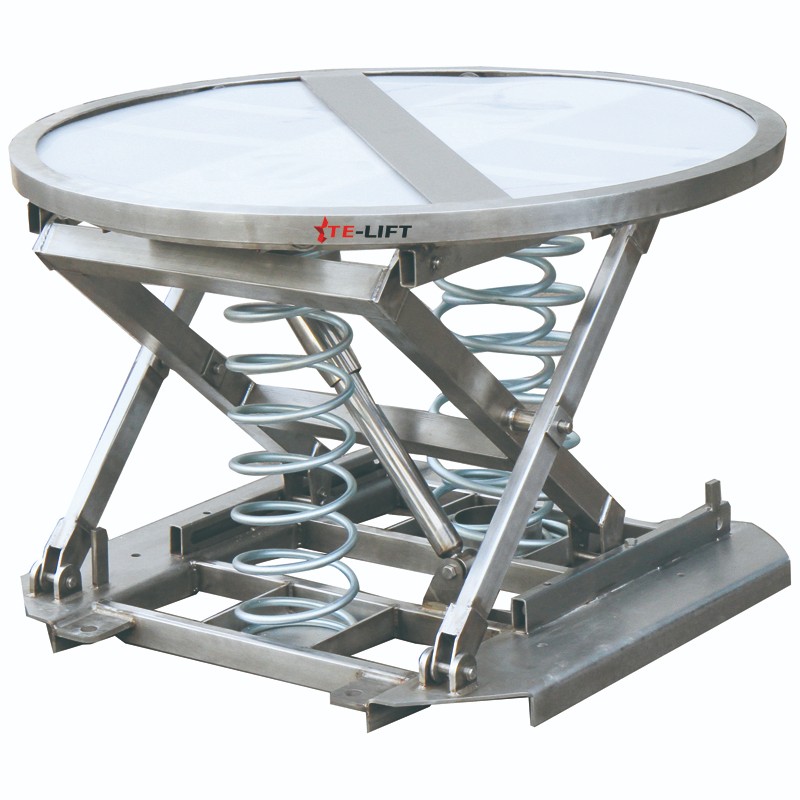

Stainless Steel Spring Actuated Rotary Pallet Leveller Spring Lift Platform

Description

Stainless Steel Spring Actuated Rotary Pallet Leveller Spring Lift Platform

SPP360-2000S and SPP360-2000CS

■ Stainless Steel for all the parts, except springs and absorber.

■ Used for application in damp or harsh environments such as meat or fish processing plants, dairies, pharmaceutical and chemical industry.

■ One of the best way to save workers backs.

■ Automatically keeps pallet or stillage loads at an optimum working height when loading or unloading goods.

■ Dramatically reduces the effort required to palletize goods.

■ Built-in turntable allows simple load rotation and access to all sides.

■ Includes a steel scissor lift mechanism and at least on large compression spring.

■ Easy to be moved with forklift truck.

■ With 3 springs, the different springs are chosen to match the weight and height of a fully loaded pallet.

■ With a shock absorber to eliminate tendency for the load to bounce on the springs.

■ SPP360-2000CS closed platform top type for Europe.

Model		SPP360-2000S	SPP360-2000CS
Type		Standard	Closed top
Capacity	(kg)	200~2000
Platform Diameter	(mm)	1110
Min. Platform Height	(mm)	240
Max. Platform Height	(mm)	710
Basement Size LxW	(mm)	1150x930
Net Weight	(kg)	128	150
