Description

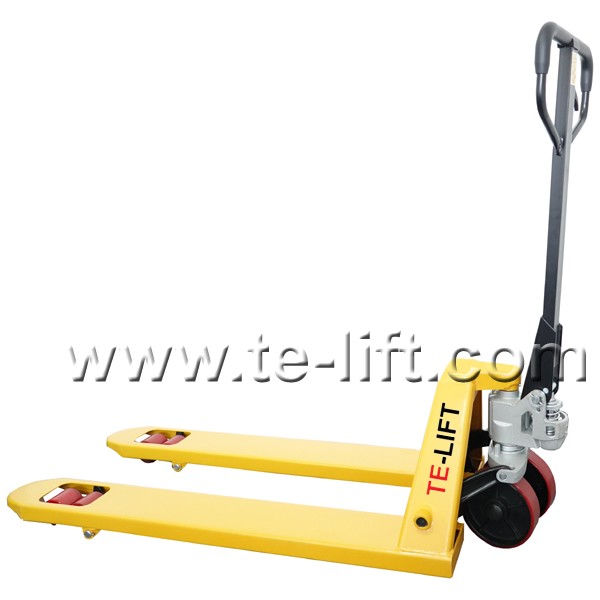

Hydraulic Pallet Jack Manual Forklift Trucks
AC series
■ Top class range of pallet trucks with excellent design.
■ Professional and ideal storage aid for all variety of manual transport tasks over short distances in stores and warehouses as well as factory plants.
■ Reliable, sturdy, torsion-resistant due to its extremely strong high quality steel profile Germany standard WAGNER painting system ensures best powder coating and painting quality.
■ All pivots points are greased ensures excellent maneuverability with effortless steering.
■ The chromed bearing bushes and joints ensure quiet running properties and particularly long service life.
■ Powder costed chassis manufactured from high grade steel.
■ World class quality with 2 years warranty pump.
■ Quick lift pump as optional.
■ World class quality AC pump,with fully sealed galvanized hydraulic unit housing.

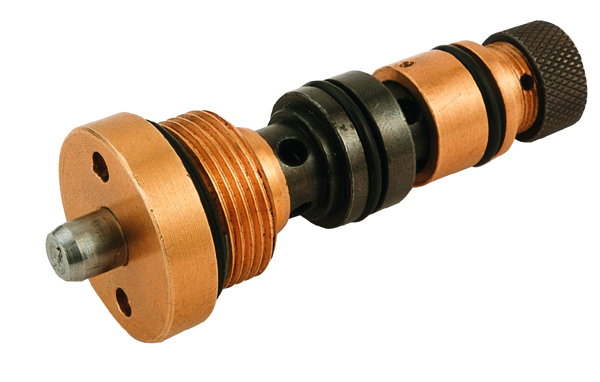

■ Single valve cartridge for easy maintenance.

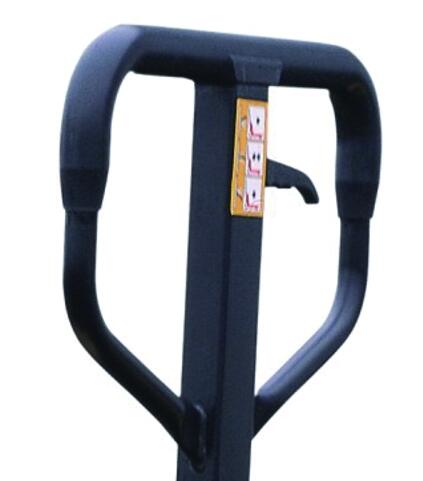

■ Rubber coated handle comfortable even under extreme temperature condition.

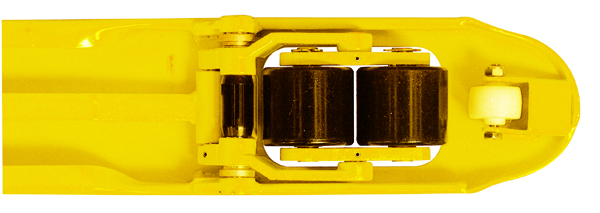

■ Lead-in and lead-out rollers reduce damage to pallets.

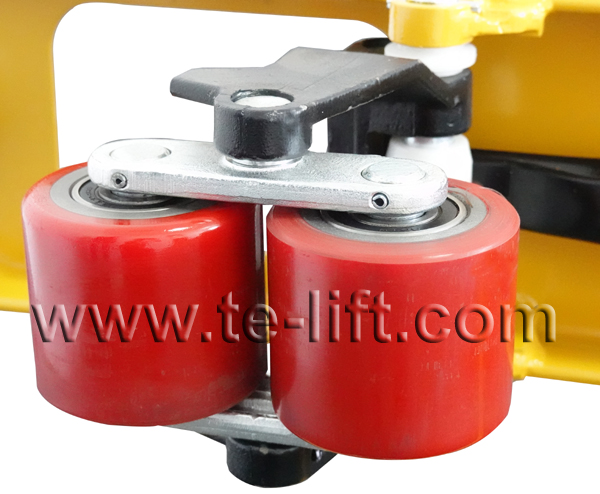

■ Tandem polyurethane or nylon rollers.
■ Different type loading roller and steering wheel as option.
Model | AC20S | AC20L | AC25S | AC25L | AC30S | AC30L | |
Capacity | (kg) | 2000 | 2000 | 2500 | 2500 | 3000 | 3000 |
Lifting Height | (mm) | 115 | |||||
Min. Fork Height | (mm) | 85/75 | |||||
Max. Fork Height | (mm) | 200/190 | |||||
Fork Length | (mm) | 1150 | 1220 | 1150 | 1220 | 1150 | 1220 |
Overall Forks Width | (mm) | 540 | 685 | 540 | 685 | 540 | 685 |
Individual Fork Width | (mm) | 160 | |||||

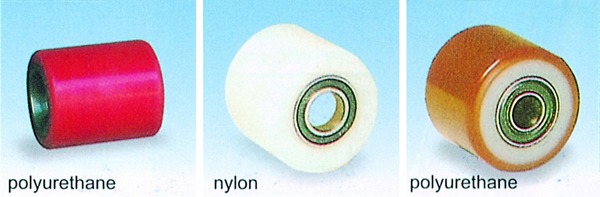

Load Roller | (mm) | Tandem φ80x70, Single φ80x93, Nylon, Polyurethane | |||||

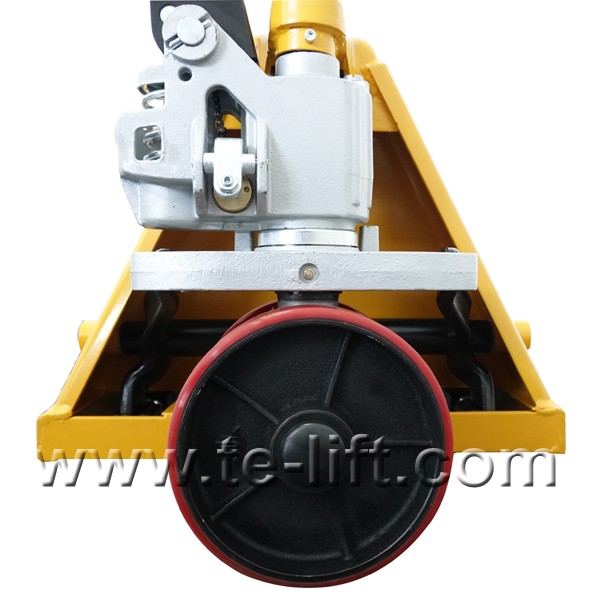

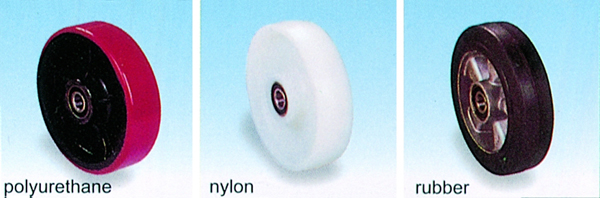

Steering Wheel | (mm) | φ200x50 (Nylon, polyurethane or Rubber) | |||||
Net Weight | (kg) | 80 | 83 | 82 | 85 | 85 | 87 |
