Description

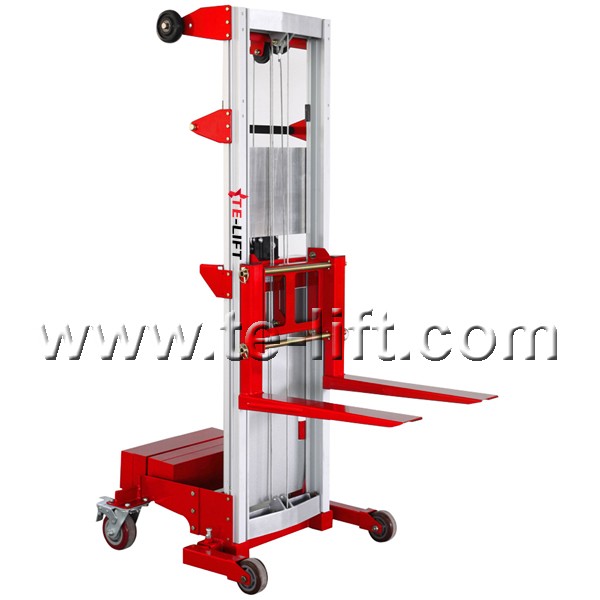

Counter Balance Aluminium Manual Winch Lift Stacker
BC series
■ Counter balance design, without support legs.
■ The min. fork height is only 50mm, which can touch the floor.
■ Forks down for lifting goods, forks up for supporting.
■ Easy disassembling and assembling.
■ Can fit into smaller space when disassembled.
■ Light aluminium mast, easy for handling.
■ Lift by winch, no any oil leakage risk.

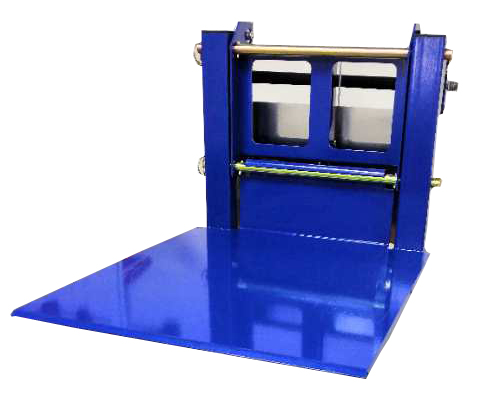

■ Optional platform is available.
| Model | Load Cap. | Lifting Height(mm) | Overall Dim.(mm) | Load Center(mm) | ||||
| (kg) | (lb) | Forks Up(mm) | Forks Down(mm) | L(mm) | W(mm) | H(mm) | ||
| BC-159 | 159 | 350 | 3600 | 3000 | 1170 | 736 | 2024 | 254 |
| BC-181 | 181 | 400 | 3000 | 2500 | 1170 | 736 | 1700 | 254 |
| BC-227 | 227 | 500 | 1800 | 1200 | 1170 | 736 | 1700 | 254 |
