Description

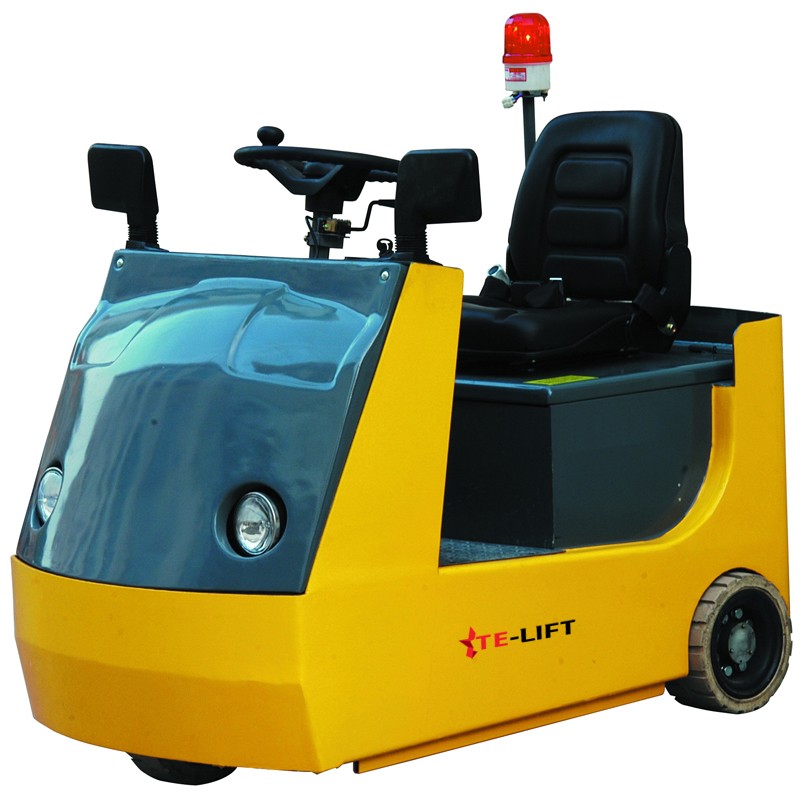

Ride Type Battery Power Tow Tractor
Model QD30 and QD40
■ Top quality AC controller system from Curtis, high reliablility, ensures best performance in different states.
■ High-strength frame design, suitable for tough workplaces, ensures longer service life.
■ Hydraulic brake, reliable and safe, flexible operation and steady starting.
■ 3-wheel and front-wheel drive, turning light and easy.
■ Configure with 385Ah large capacity battery, intelligent charger, REMA plug from Germany.
■ Optional EPS electric power steering system, light and nimble operation.
■ AC traveling motor, maintenance-free, provides stronger power and climbing capability.
■ With the function of automatic deceleration when turning.
■ If the operator get off the truck, the truck will cut off the power automatically.

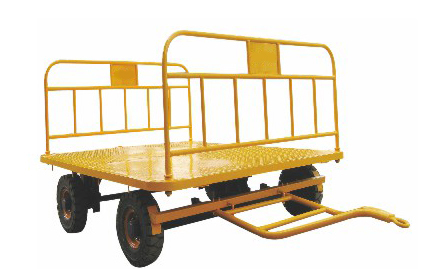

■ Optional QD-G platform tralier, capacity 2000kg, dimension 2400x1200mm.

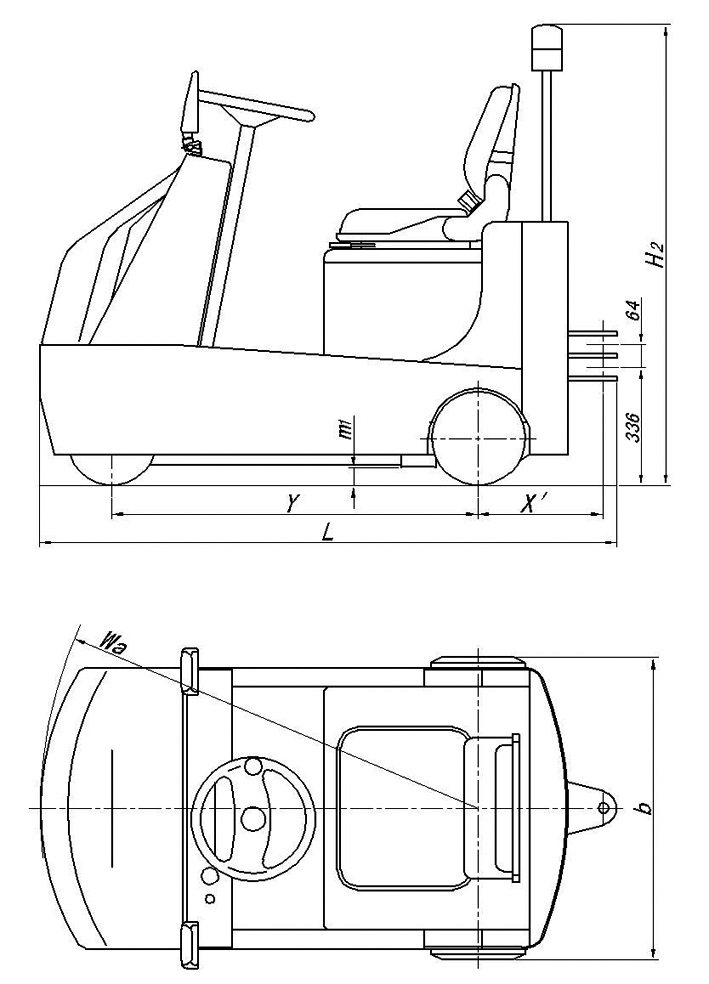

| Model | QD30 | QD40 | |
| Operation Type | Seating | Seating | |
| Traction Weight | (kg) | 3000 | 4000 |
| Overall Length | (mm) | 1640 | |
| Overall Width | (mm) | 860 | |
| Overall Height | (mm) | 1350 | |
| Wheelbase | (mm) | 1040 | |
| Rear Overhang | (mm) | 395 | |
| Minimum Ground Clearance | (mm) | 50 | |
| Turning Radius | (mm) | 1245 | |
| Drive Motor Power | (kw) | AC 2.0 | AC 2.8 |
| Steering Motor(EPS) | (kw) | 0.2 | |
| Battery | (V/Ah) | 24/385 | |
| Net Weight | (kg) | 1006 | |
