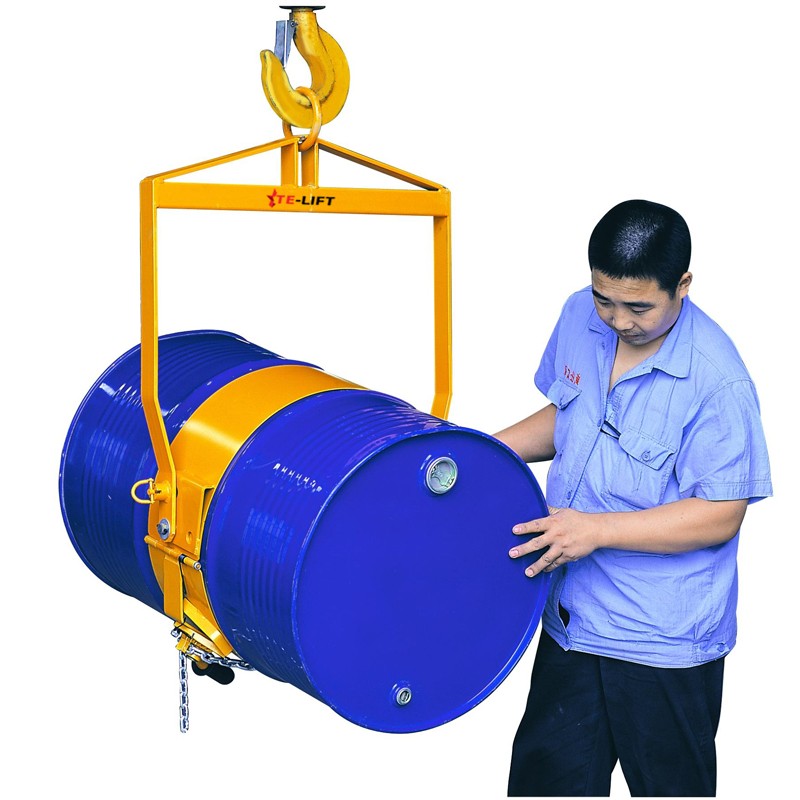

Overhead Dumping Dum Lifter
■ One-person operation saves time, reduces spilling waste, and improves productivity.
■ Simply attach or hang lifter on hook from an overhead hoist or crane, cinch saddle around drum, and raise to desired height and position.
■ Lift, transport and pour from open and closed head drum.

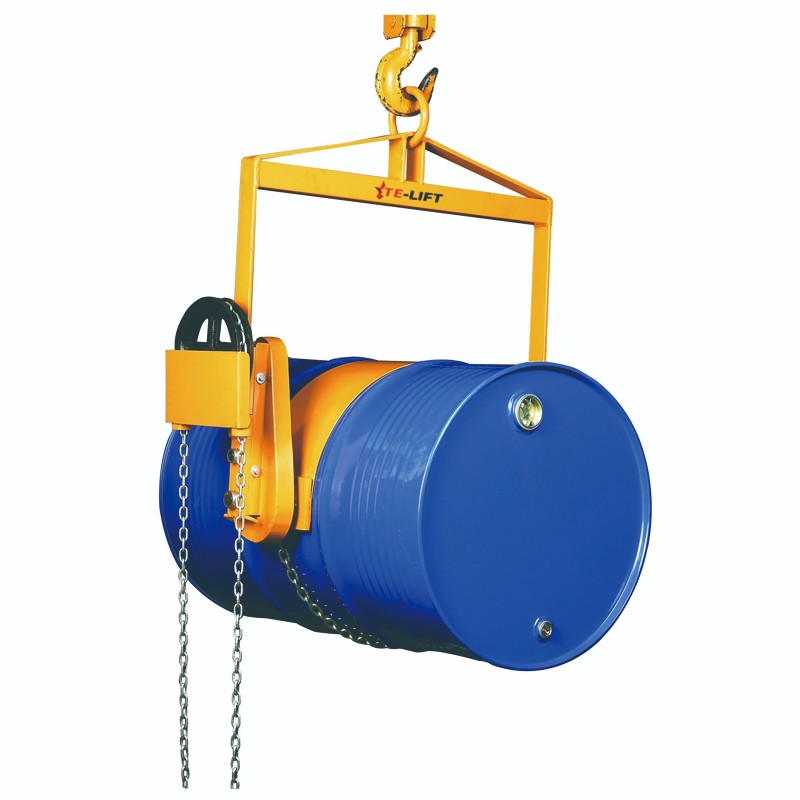

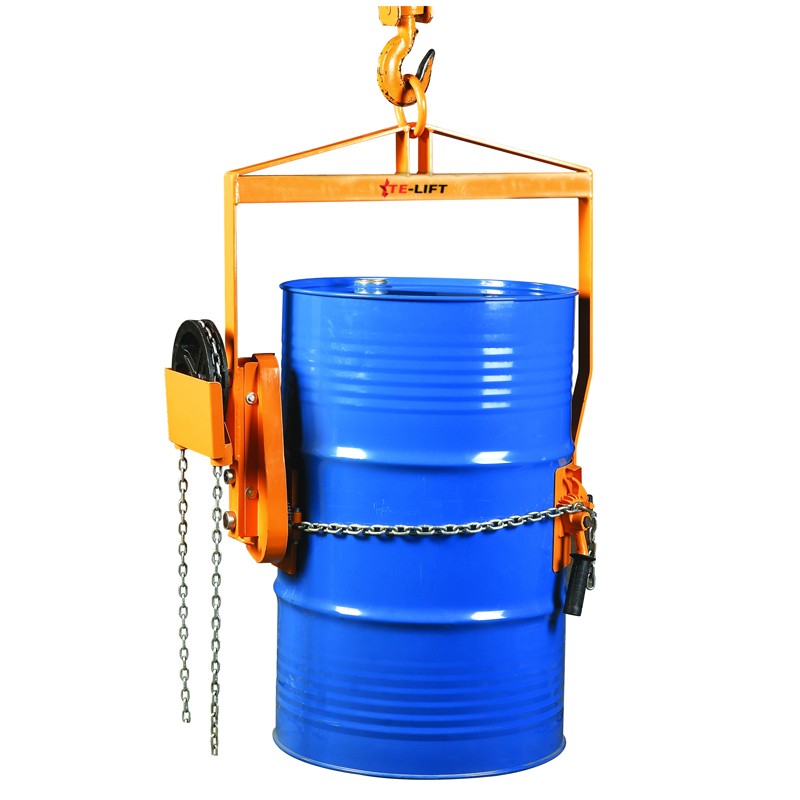

Geared Type Model LG800
■ 800lbs. full drum, 500lbs. half-full drum capacity.
■ For 55-gallon closed steel drums.
■ Allows remote pouring operations.
■ Geared chain control and low effort feature make this model useable at any height.
■ 10-ft control chain can be locked to secure drum in any position during transit and dispensing.
■ Overall dimensions: 39''H×28.5''W ×8''D.
■ Net weight 38kg/84lbs.

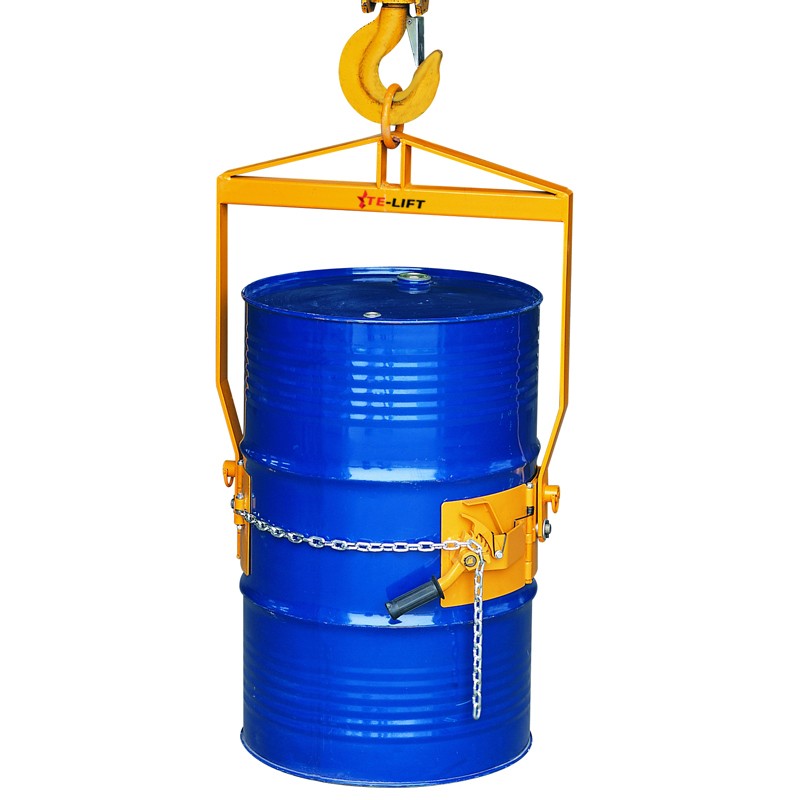

Manual Type Model LM800
■ 800lbs.full drum, 500lbs. half-full drum capacity.
■ For 55-gallon closed steel drums.
■ Idea for low lever pouring and dumping operations.
■ Positive tilt lock on drum saddle to hold drum upright in transit.
■ When released, the operator can manually tilt the drum to control pouring an the drum can be rotated 360° in either direction.
■ Locks also hold drum in horizontal position.
■ Overall dimensions: 39''H×28.5''W ×8''D.
■ Net weight 20kg/44lbs.
