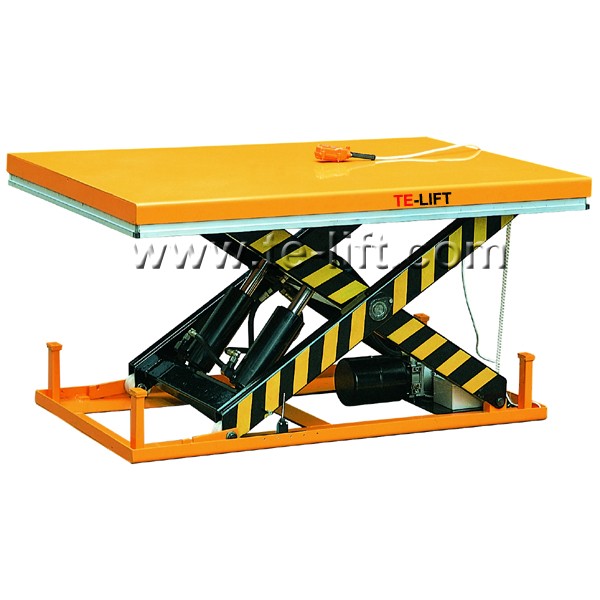

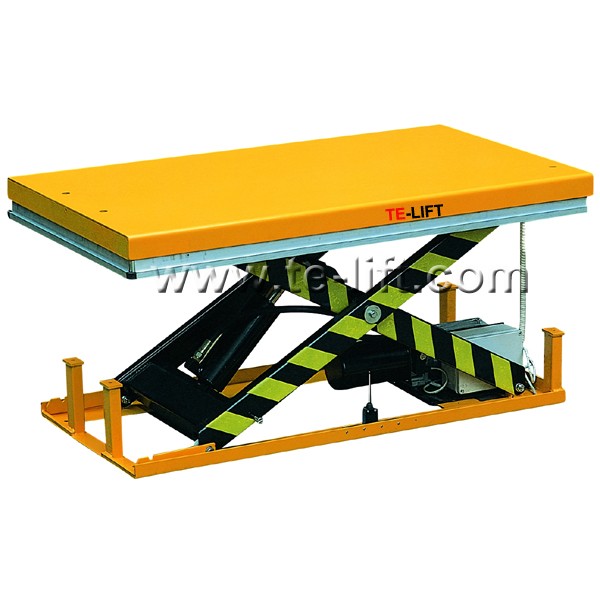

Stationary Electric Hydraulic Scissor Lift Table Elevating Platform

Description

Stationary Electric Hydraulic Scissor Lift Table Elevating Platform
HW series

■ Heavy Duty Design

■ HW series lift tables meet EN norm and ANSI/ASME safety standards.

■ These models can be used in above-floor or in-floor pit applications.

Standard Safety Features

■ Upper platform lifted with aluminum safety bar preventing descent on contact with obstructions.

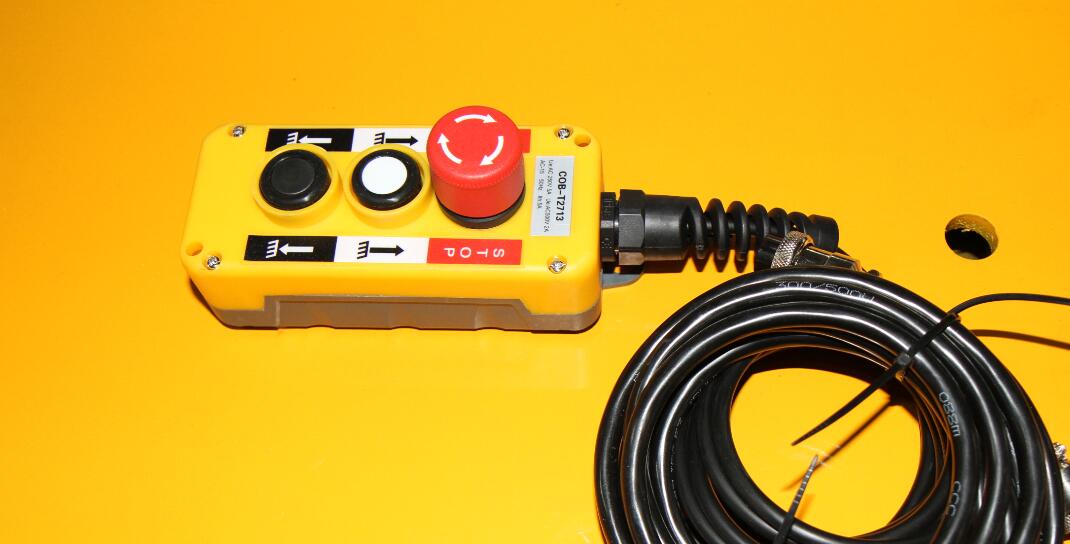

■ Low-tention(24V) control box with up-down buttons.

■ Internal power pack equipped with relief valve against overloading and compensated flow valve for controlled lowering speed.

■ Heavy duty cylinders with drainage system and check valve to stop the lift table lowering in case of hose burst.

■ Safety clearance between scissors to prevent trapping during operation.

Other Standard Features

■ Self lubricating bushings on pivot points.

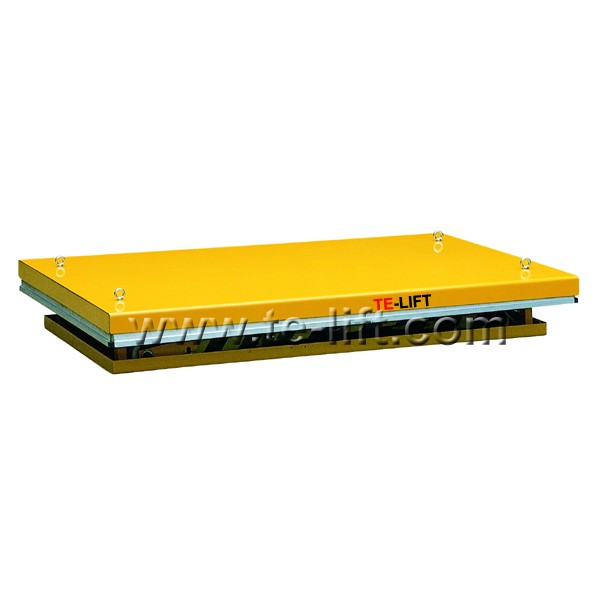

■ Removable lifting eye to facilitable handling and lift table installation.

■ High quality AC power packs

Model	Capacity	Lowered  Platform Height	Raised  Platform Height	Platform Size L×W	Base Frame Size L×W	Lift Time	Power pack	Net Weight
	(kg)	(mm)	(mm)	(mm)	(mm)	(sec)		(kg)
HW1001	1000	205	990	1300×820	1240×640	20~25	380v/50HZ,AC1.1kw	160
HW1002	1000	205	990	1600×1000	1240×640	20~25	380v/50HZ,AC1.1kw	215
HW1003	1000	240	1300	1700×850	1580×640	30~35	380v/50HZ,AC1.1kw	217
HW1004	1000	240	1300	1700×1000	1580×640	30~35	380v/50HZ,AC1.1kw	230
HW1005	1000	240	1300	2000×850	1580×640	30~35	380v/50HZ,AC1.1kw	200
HW1006	1000	240	1300	1000×2000	1580×640	30~35	380v/50HZ,AC1.1kw	240
HW1007	1000	240	1300	1700×1500	1580×1320	30~40	380v/50HZ,AC1.1kw	310
HW1008	1000	240	1300	2000×1700	1580×1320	30~40	380v/50HZ,AC1.1kw	430
HW2001	2000	230	1000	1300×850	1220×785	20~25	380v/50HZ,AC1.5kw	212
HW2002	2000	230	1000	1600×1000	1220×785	20~25	380v/50HZ,AC1.5kw	237
HW2003	2000	250	1300	1700×850	1600×785	25~35	380v/50HZ,AC1.5kw	260
HW2004	2000	250	1300	1700×1000	1600×785	25~35	380v/50HZ,AC1.5kw	285
HW2005	2000	250	1300	2000×850	1600×785	25~35	380v/50HZ,AC1.5kw	300
HW2006	2000	250	1300	2000×1000	1600×785	25~35	380v/50HZ,AC1.5kw	293
HW2007	2000	250	1400	1700×1500	1600×1435	30~40	380v/50HZ,AC1.5kw	415
HW2008	2000	250	1400	2000×1800	1600×1435	30~40	380v/50HZ,AC1.5kw	500
HW4001	4000	240	1050	1700×1200	1600×900	30~40	380v/50HZ,AC2.2kw	402
HW4002	4000	240	1050	2000×1200	1600×900	30~40	380v/50HZ,AC2.2kw	405
HW4003	4000	300	1400	2000×1000	2000×900	45~50	380v/50HZ,AC2.2kw	496
HW4004	4000	300	1400	2000×1200	2000×900	45~50	380v/50HZ,AC2.2kw	525
HW4005	4000	300	1400	2200×1000	2000×900	45~50	380v/50HZ,AC2.2kw	585
HW4006	4000	300	1400	2200×1200	2000×900	45~50	380v/50HZ,AC2.2kw	504
HW4007	4000	350	1300	1700×1500	1600×1400	45~50	380v/50HZ,AC2.2kw	560
HW4008	4000	350	1300	2200×1800	1600×1400	45~50	380v/50HZ,AC2.2kw	655
HW6001	6000	380	1150	1700×1000	1600×990	35~45	380v/50HZ,AC3kw	475
