Description

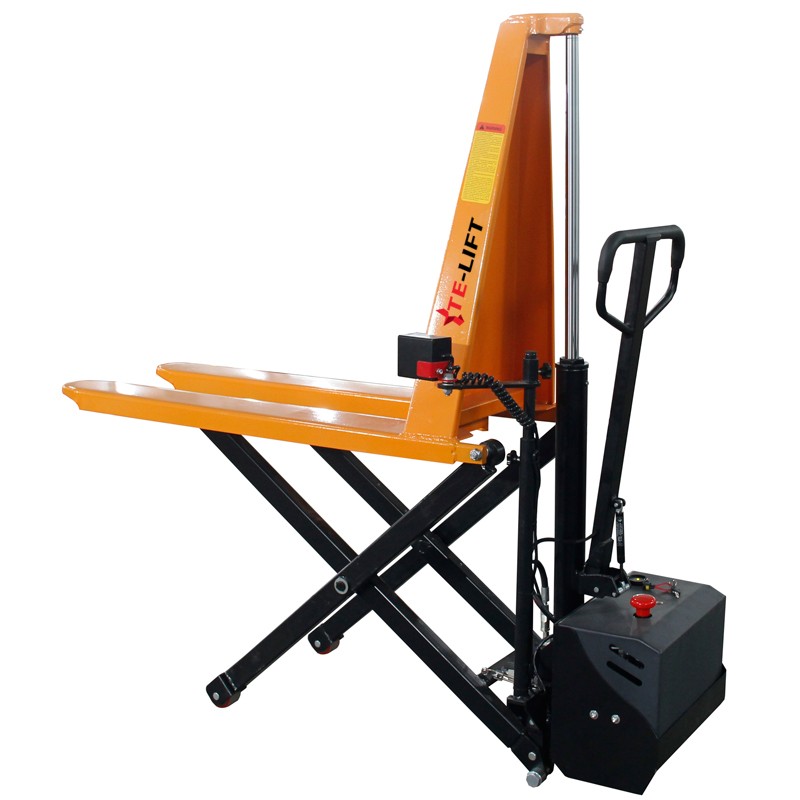

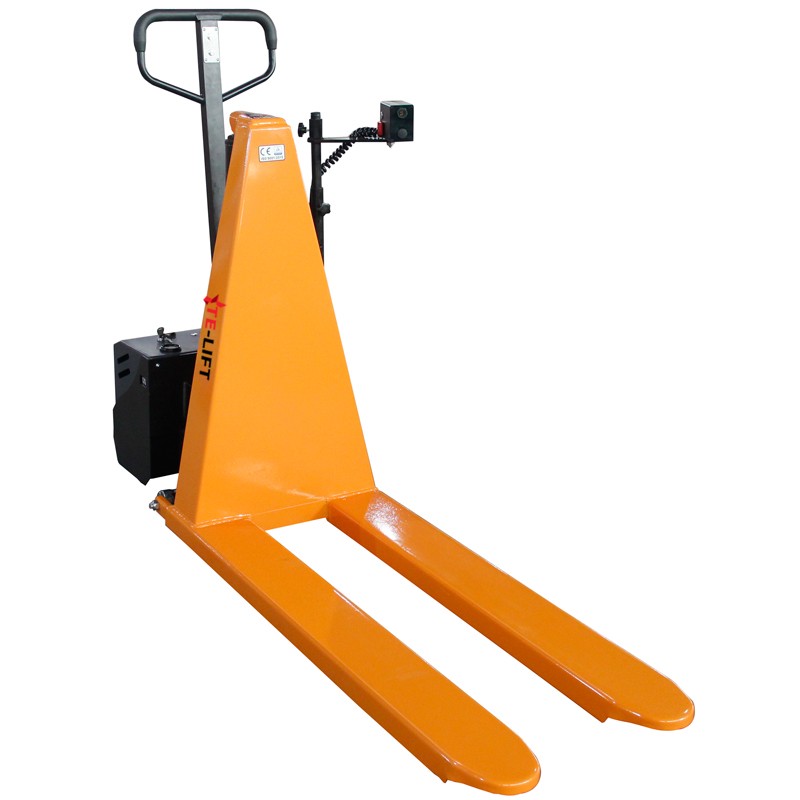

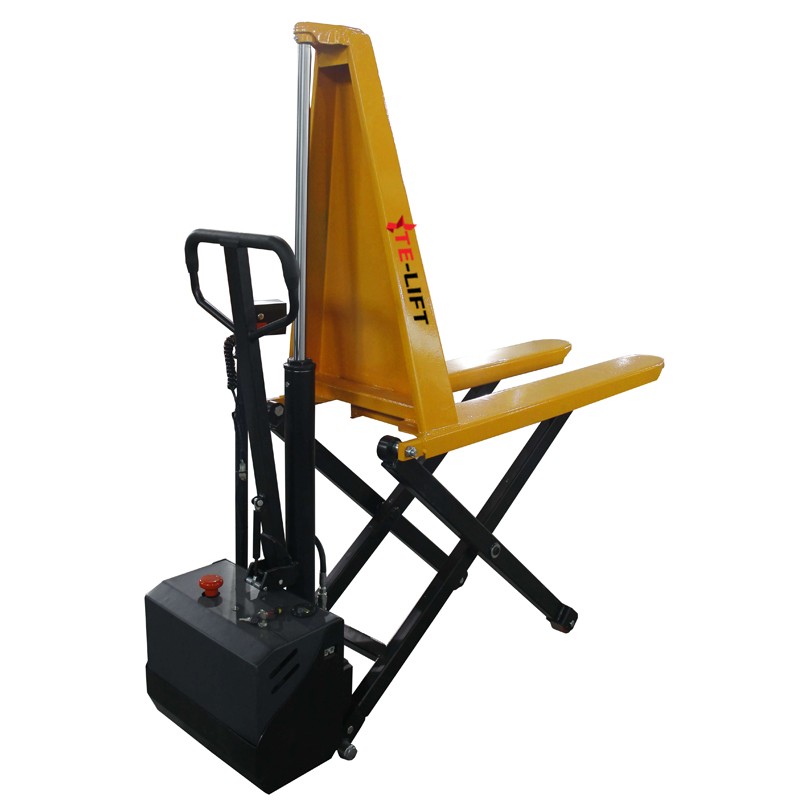

Electric High Lift Scissor Pallet Truck with Automatic Height Adjustment
HCY-E series■ Ideally used for automatic loading and unloading and automatic work positioning.
■ It's equipped with safty valve to avoid overload condition.
■ The enclosed fork tips and reinforced fork frames ensures long service life.
■ Equped with polyurethane loading roller and steering wheels to protect your floor.
■ The truck will be braked automatically when lift to the maximum height.

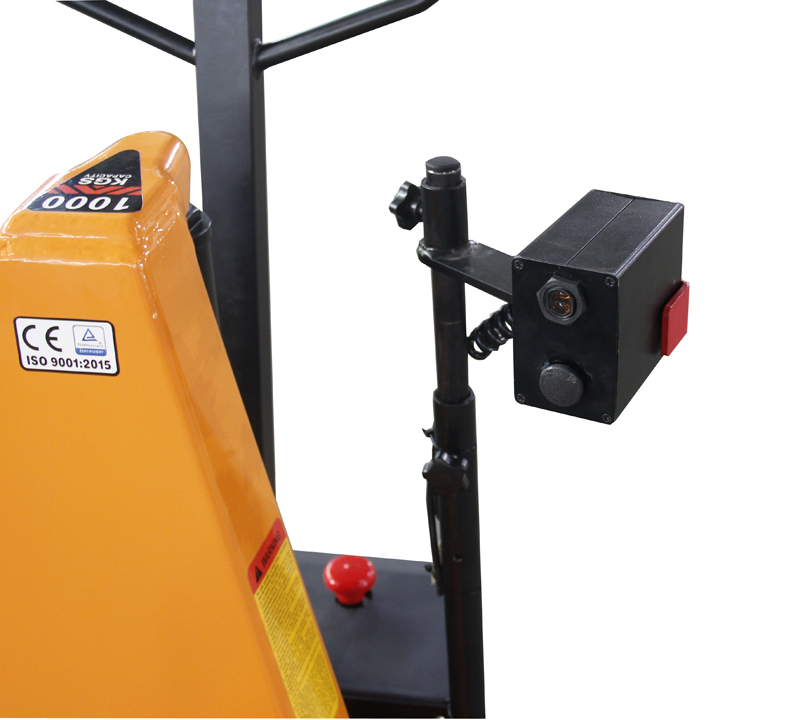

■ Key switch, emergency stop button and coulombmeter are easy to be accessed.
■ With built-out charger.
Model | HCY1054E | HCY1068E | HCY1554E | HCY1568E | |
Capacity | (kg) | 1000 | 1500 | ||
Min. Fork Height | (mm) | 85 | |||
Max. Fork Height | (mm) | 800 | |||
Overall Forks Width | (mm) | 540 | 685 | 540 | 685 |
Individual Fork Width | (mm) | 160 | |||
Fork Length | (mm) | 1150 | |||
Front Wheel Size | (mm) | Ø74x50 | |||
Steering Wheel Size | (mm) | Ø180x50 | |||
Working Distance | (mm) | 700~1000 | |||
Battery | (V/Ah) | 12/60 | |||
Net Weight | (kg) | 165 | 170 | 170 | 175 |
