Description

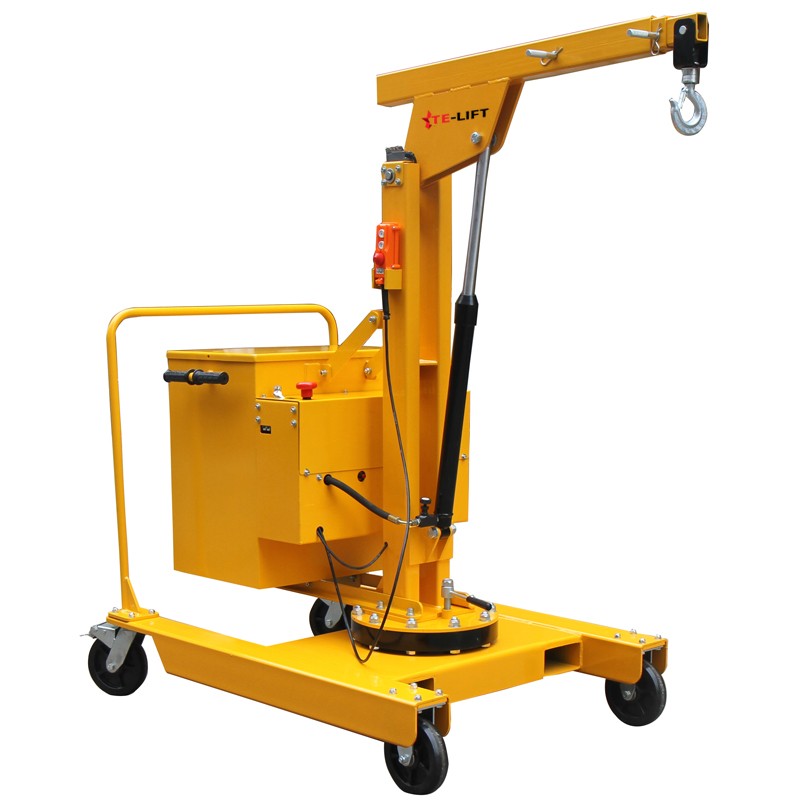

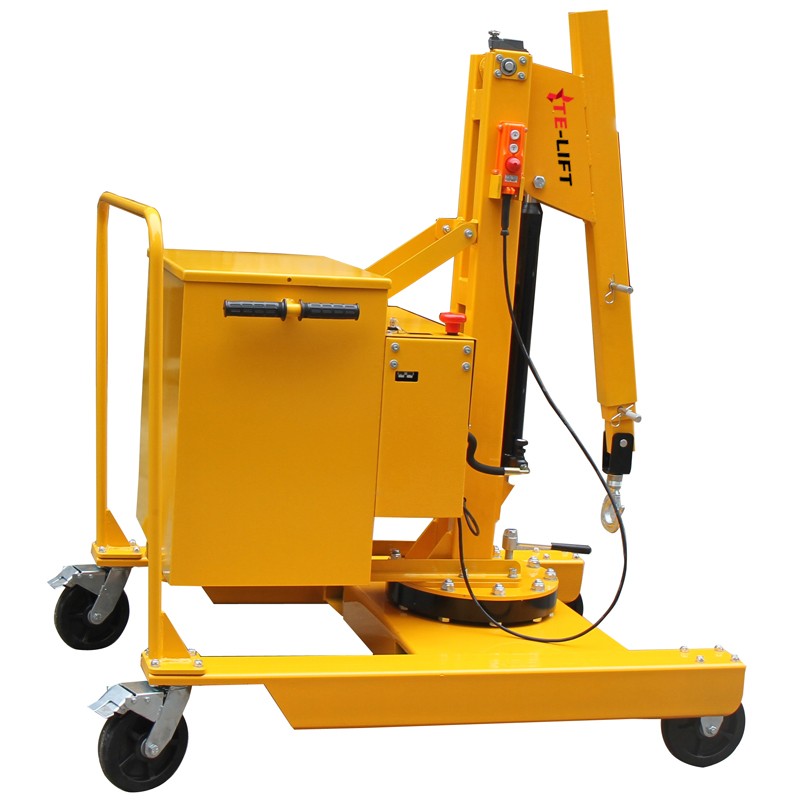

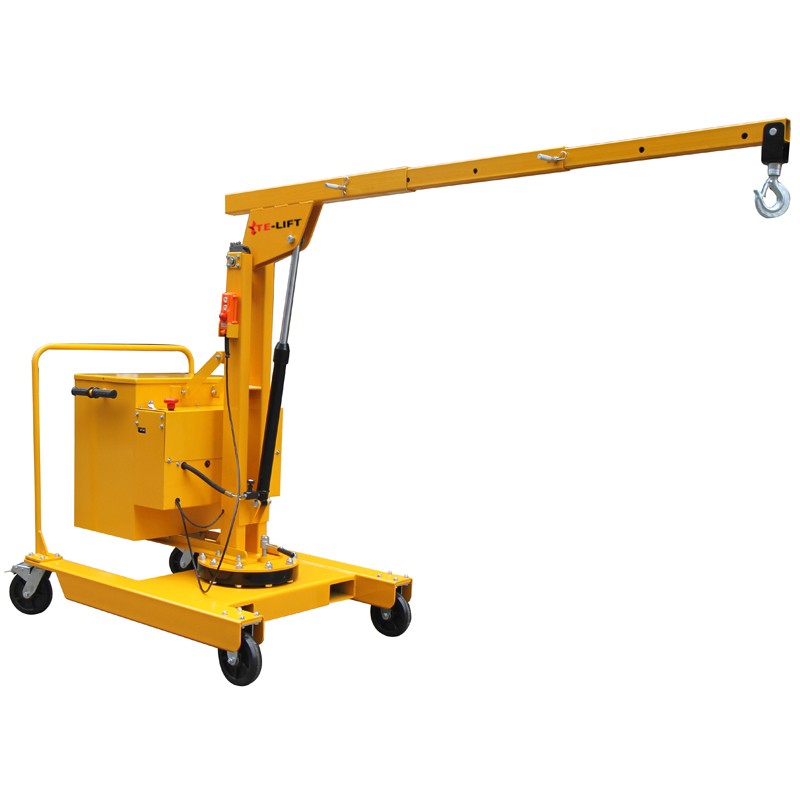

Electric Rotating Counter Balance Shop Crane
Model RSSCB550■ Electric lifting and manual moving type, control hand unit operates up and down.
■ Counter balanced design is suitable for more applications.
■ Five positions to adjust the length of the jib.

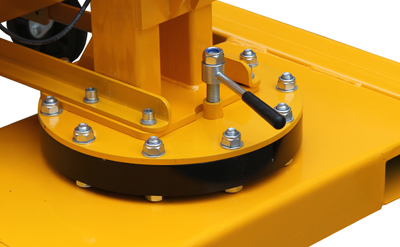

■ 360 degree rotating allows operating at any position you want.
■ Heavy duty design, tested 25% overload before delivery.
■ Forged heavy duty swivel hook.
■ Remote hand controller for electric lifting and descending.

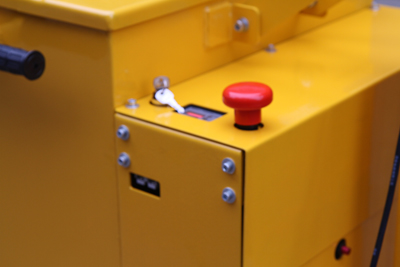

■ With emergency stop button, key switch and coulombmeter.
| Model | RSSCB550 | |||||
| Working Type | Electric lifting, 360 degree manual rotating | |||||

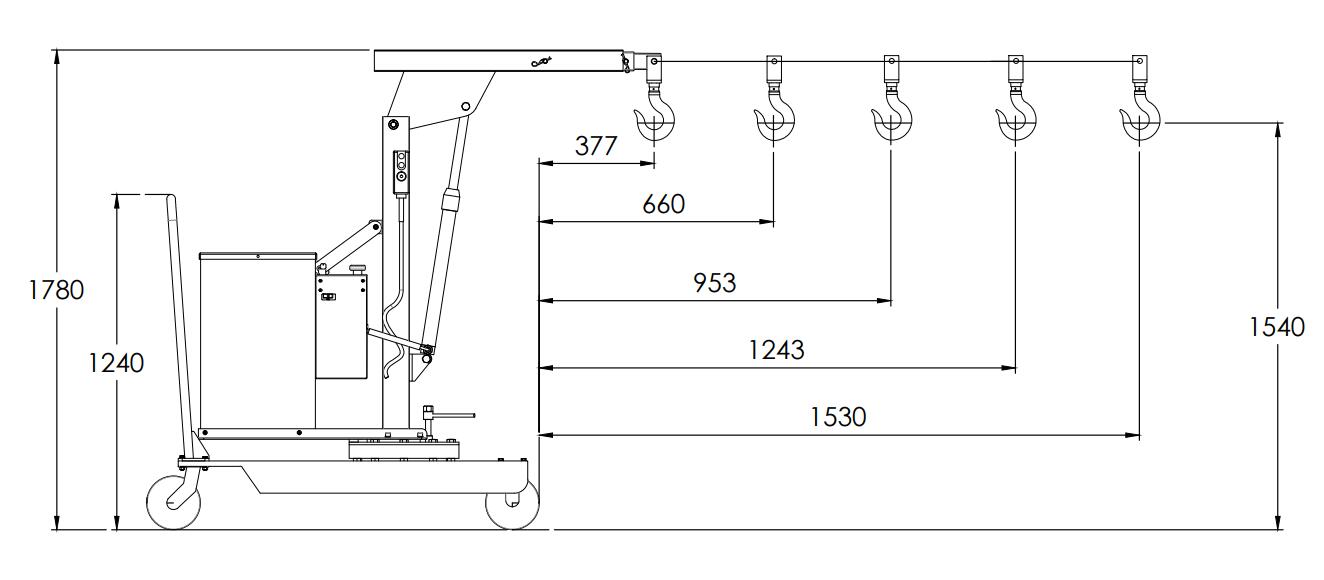

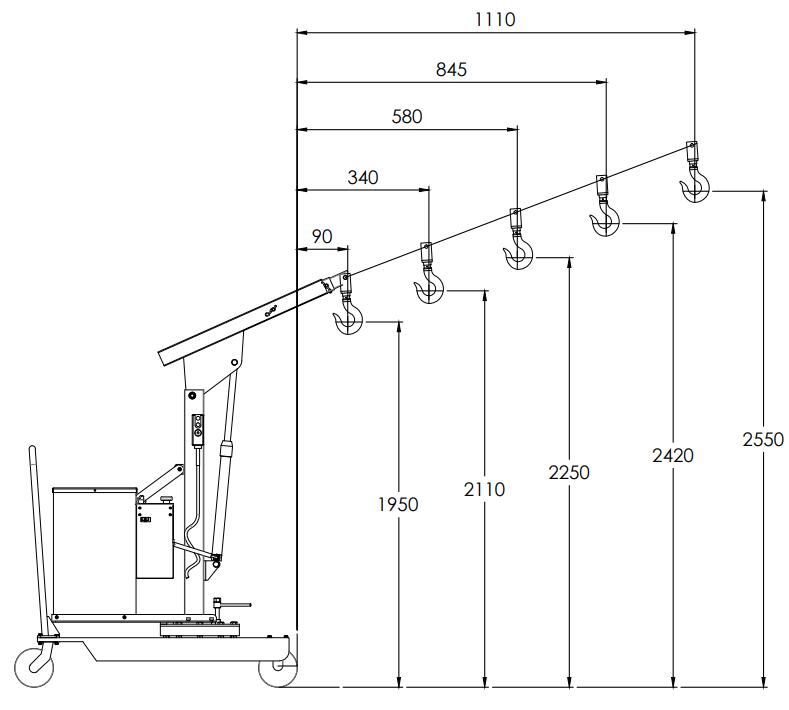

| 5 Adjustable Positions | (mm) | 1900 | 2160 | 2260 | 2450 | 2600 |
| Max Capacity at Positions | (kg) | 550 | 450 | 350 | 250 | 150 |
| Turning Radius at Positions | (mm) | 977 | 1267 | 1560 | 1850 | 2140 |

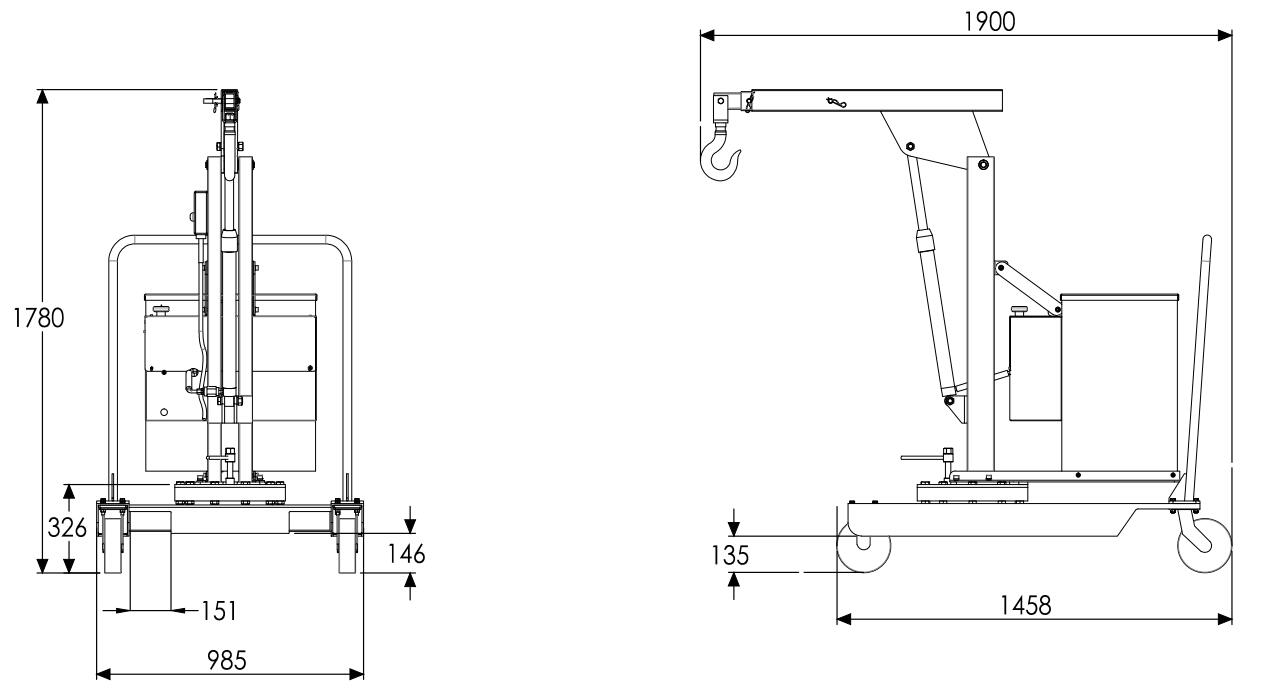

| Overall Size | (mm) | 1400x985x1600 | ||||
| Wheel Diameter | (mm) | Φ200 | ||||
| Balance Weight | (kg) | 250 | ||||
| Net Weight | (kg) | 662 | ||||
| Motor | (kw) | 0.8 | ||||
| Battery | (v/Ah) | 12/80 | ||||
| Battery Charger | (v/A) | 12/8 | ||||
| Fully Charge Time | (h) | 10 | ||||
