Hydraulic Tilt Table Truck Tilting Cart

Product Item：BL15, BL40, BL80, TS40, TS80

Capacity 150kg, 400kg, 800kg

Table size 830x500mm, 830x520mm

Max. table height 880mm, 900mm, 1000mm

Tilting angle 45degree

Description

Hydraulic Tilting Cart Tilt Table Truck

BL and TS series

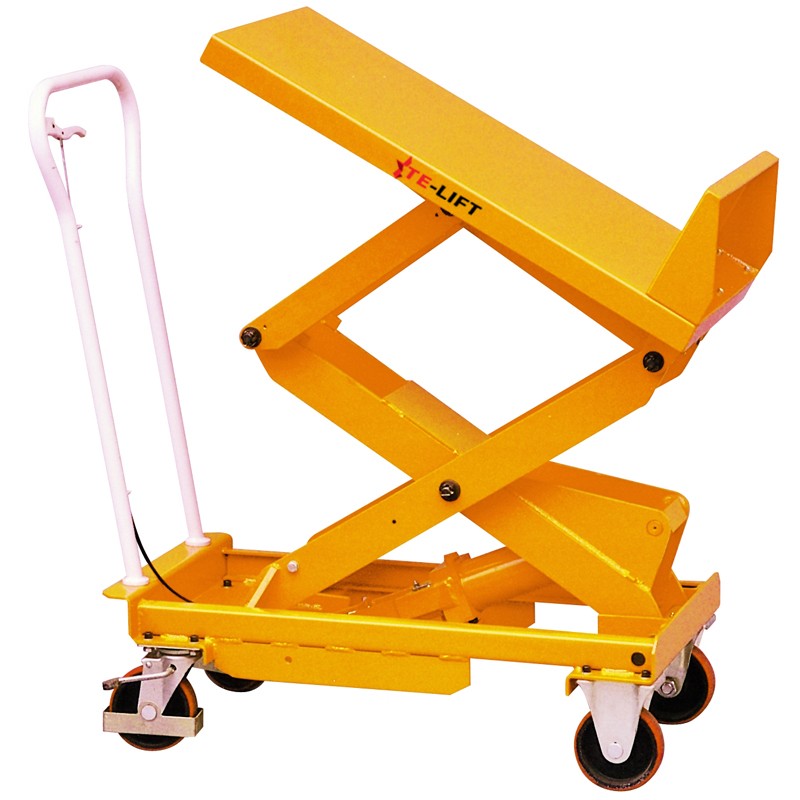

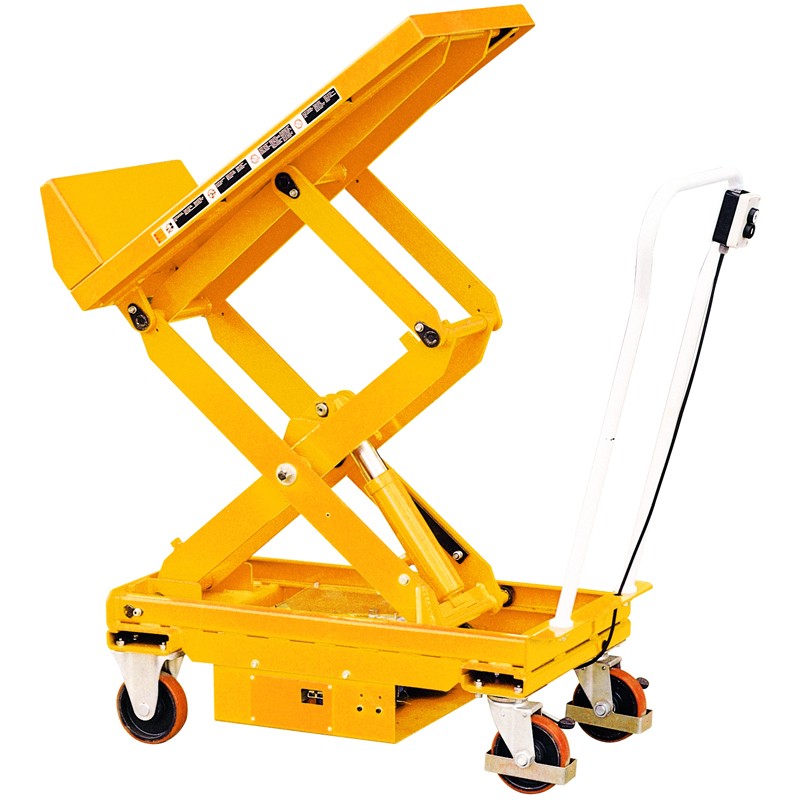

■ BL is with manual lifting and tilting, TS is with electric lifting and tilting.

■ The hydraulic tilt table trucks are specifically designed to allow an operator to feed and unload parts from boxes or containers quickly and easily without bending or stretching.

■ When at its lift and tilt position, the truck holds boxes or containers at a comfortable working height and angle that allows operators to reach parts easily.

■ The working table is elevated by means of a foot actuated hydraulic cylinder.

■ While the table is lifting, it automatically tilts to an angle of 45 at full elevation.

■ Built-in retaining lip keeps containers in place.

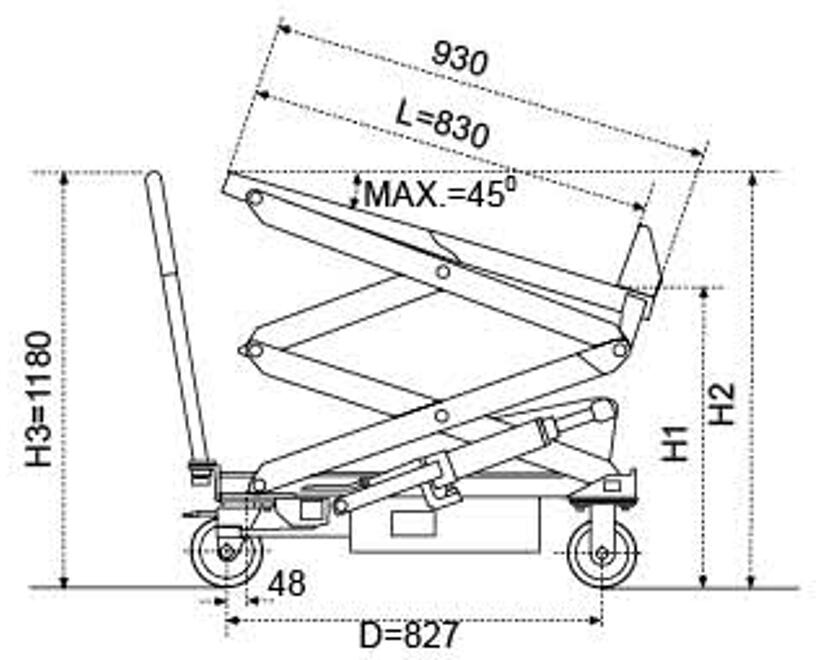

Model	Capacity	TableSize	Table Height(Min./Max.)		Handle Height	Overall Size	Foot Pedal to Max.Height	Time to Max.Height	Net Weight
Model		LxW	H1	H2	H3	BxC
	(kg)	(mm)	(mm)	(mm)	(mm)	(mm)	(times)	(sec)	(kg)
BL15	150	830x500	415/880	415/1400	1100	500x1010	20	--	92
BL40	400	830x520	435/900	435/1560	1130	520x1355	55	--	123
BL80	800	830x520	440/1000	438/1570	1130	520x1355	80	--	145
TS40	400	830x520	500/990	500/1620	1180	520x1185	--	20	170
TS80	800	830x520	500/1000	500/1620	1180	520x1260	--	20	185
