Large Size Electric Lift Platform Parallel Double Scissors Lift Tables

Description

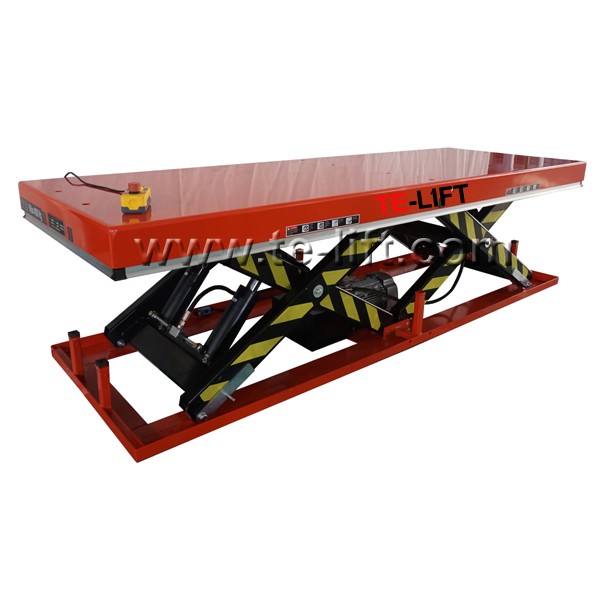

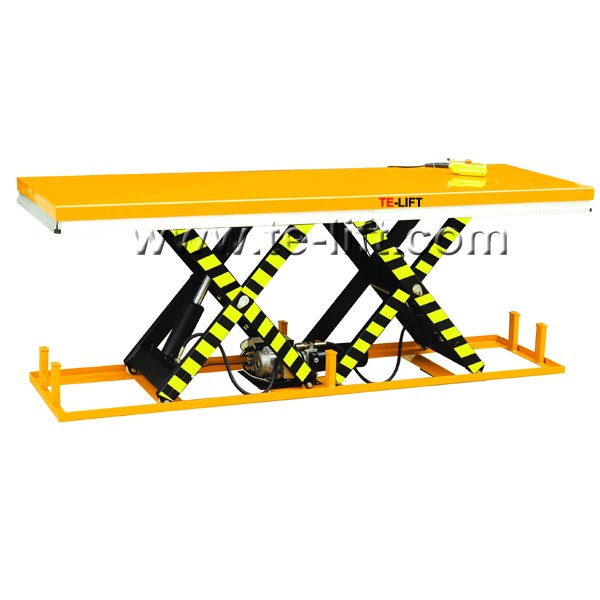

Large Size Electric Lift Table Parallel Double Scissors Lift Platforms

HW-D series

■ Large size platform for special size materials.

■ Heavy duty design.

■ Meet EN1570 norm and ANSI/ASME safety standard.

■ These models can be used in above-floor or in-floor pit applications.

Standard Safety Faetures

■ Upper platform lifted with aluminum safety bar preventing descent on contact with obstructions.

■ Low-tention(24V)control box with up-down buttons.

■ Internal power pack equipped with relief valve against overloading and compensated flow valve for controlled lowering speed.

■ Heavy duty cylinders with drainage system and check valve to stop the lift table lowering in case of hose burst.

■ Safety clearance between scissors to prevent trapping during operation.

Other Standard Features

■ Self lubricating bushings on pivot points.

■ Removable lifting eye to facilitable handling and lift table installation.

■ High quality AC power pack.

Model		HW2000D	HW4000D	HW8000D
Capacity	(kg)	2000	4000	8000
Platform Size L×W	(mm)	2500×820	2500×850	3000×1200
Lowered Height	(mm)	205	230	240
Raised Height	(mm)	1000	1000	1050
Base Frame Size L×W	(mm)	2460×640	2450×785	2970×930
Lift Time	(sec)	35~45	45~50	45~55
Power Pack		380v/50HZ, AC 1.5kw	380v/50HZ, AC 2.2kw	380v/50HZ, AC 2.2kw
Net Weight	(kg)	265	360	705
