Description

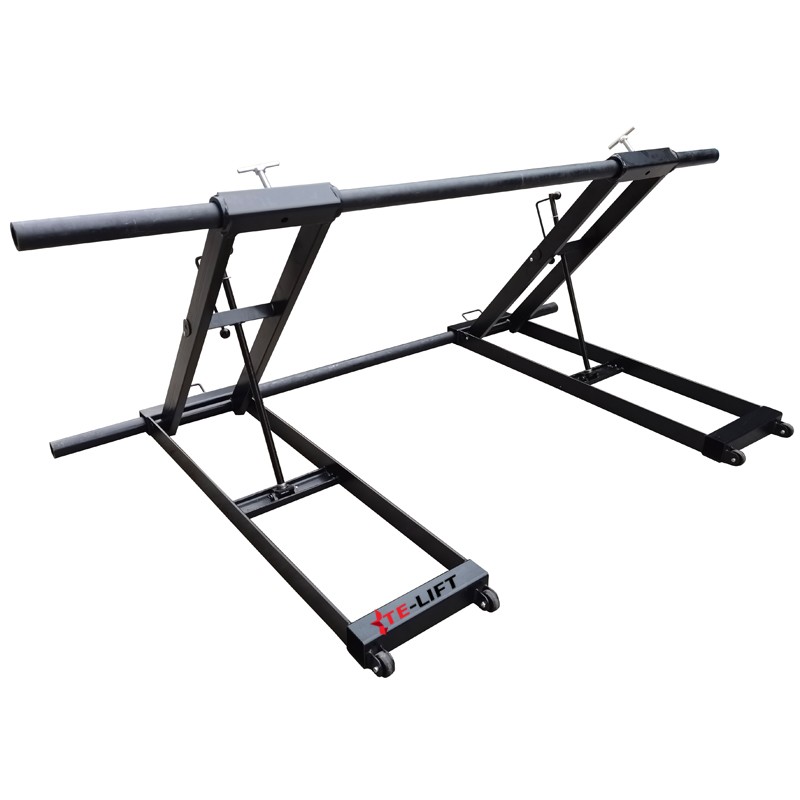

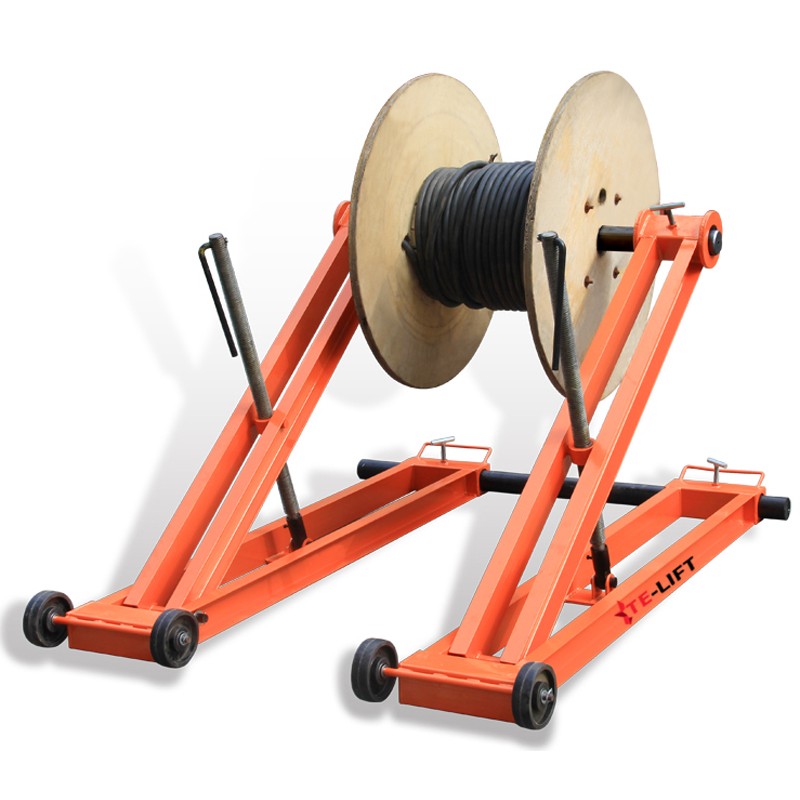

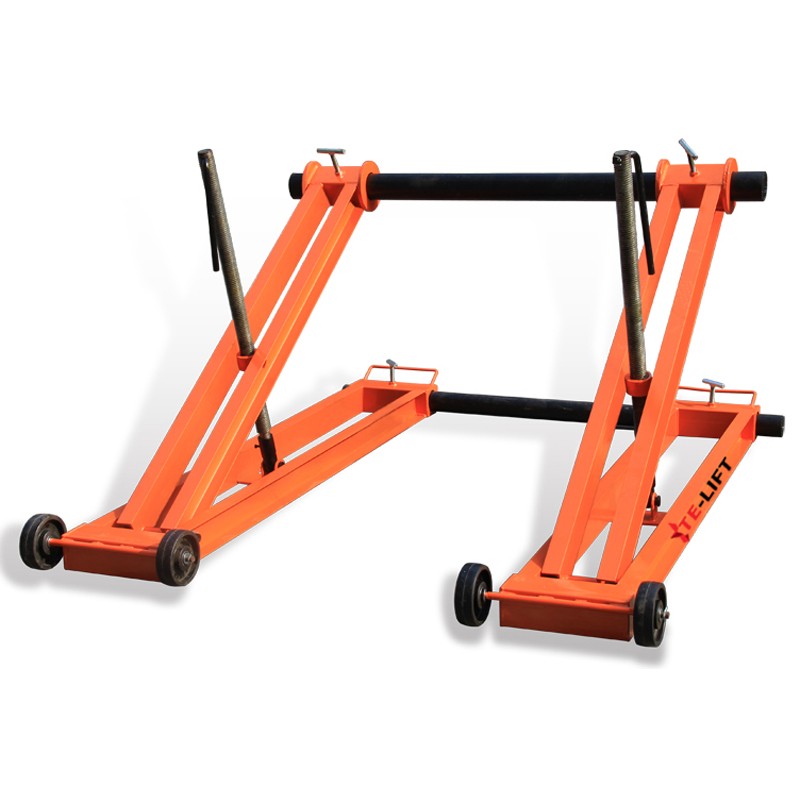

Wire Coil Rack Cable Drum Dispenser
SLS series
■ Wire coil can be rotated easliy when we use this wire coil rack.
■ Take wire from wire coil easily by using this rack.
■ Lifting by screws, suitable for different diameter wire coils.
■ Adjustable overall width, which is suitable for different width of wire coils.
■ Combination by two brackets with castors and two rods, which can be moved easily.
■ 'T' bolts to fix the loading rod and connection rod.

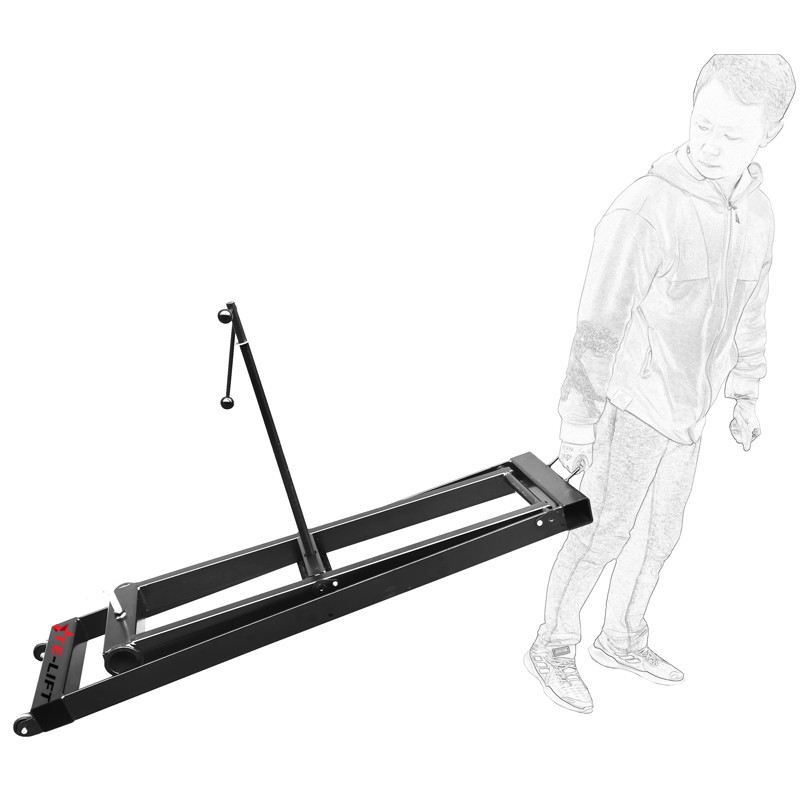

■ With handle and castors for each bracket, then it can be moved easily by single person.
Model | SLS0.5T | SLS1T | SLS3T | |
Capacity | (kg) | 500 | 1000 | 3000 |
Axle Diameter | (mm) | Φ50 | Φ55 | Φ89 |
Axle Length | (mm) | 1500 | 2300 | 1650 |
Applicable Wire Coil Width | (mm) | 1000 | 1700 | 1000 |

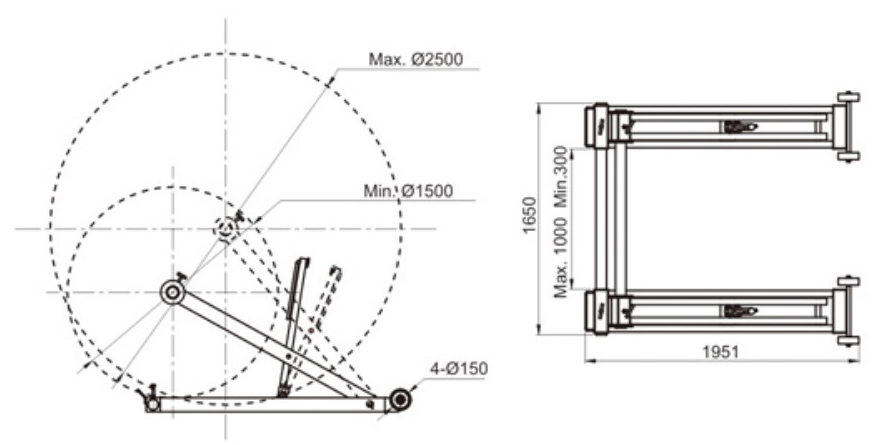

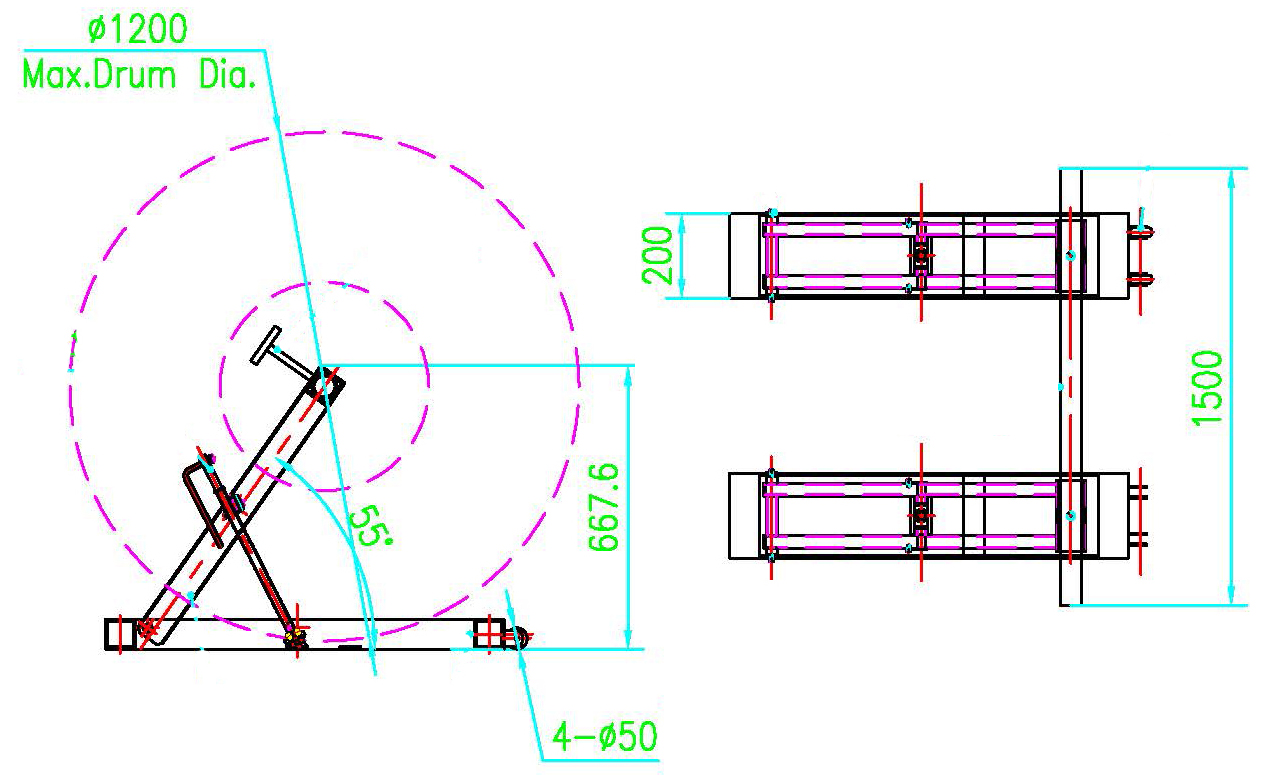

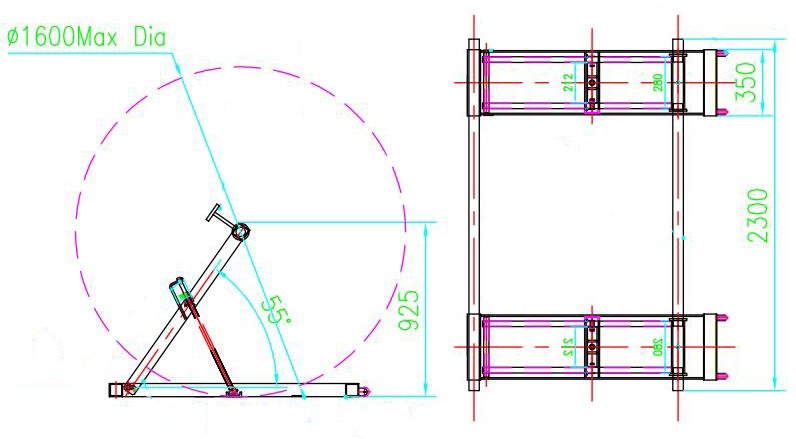

Max. Applicable Wire Coil Diameter | (mm) | Φ1200 | Φ1600 | Φ2500 |
Net Weight | (kg) | 46 | 90 | 180 |
