Stainless Steel Manual Winch Work Positioners

Product Item：M100S, M200S

Stainless steel SUS304

Capacity 100kg, 200kg

Max. Platform Height 1500mm

Manual moving and winch lifting

Description

Stainless Steel Manual Winch Lifting Truck

M100S and M200S

■ Complete stainless steel structure, except winch device, which is nickel plated. Good for corrosive acids application.

■ Standard one is with PVC platform. Optional with stainless platform or other attachments.

■ Ideal for use in narrow aisles and confined spaces, light weight and compact to operate.

■ Perfect for all applications from pharmaceutical to catering, from packing line to food processing, from warehouse to office, kitchens, laboratories, retail outless, etc...

■ Mono mast offers a good operation view.

■ Operated via a manual hand winch.

■ Auto brake system prevents uncontrolled descending.

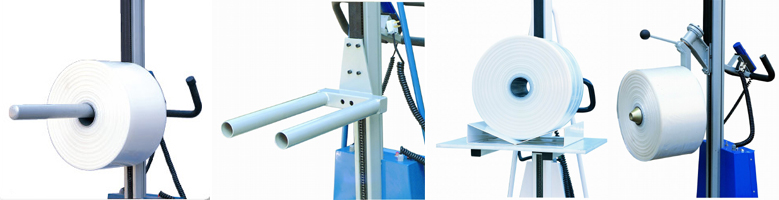

■ Quick change attachment options available.

Model		M100S	M200S
Capacity	(kg)	100	200
Load Centre	(mm)	235
Max. Platform Height	(mm)	1500
Min. Platform Height	(mm)	130
Platform Size DxW	(mm)	475x605(PVC/Stainless)
Load Wheel Diameter	(mm)	Φ75(PU)
Steering Wheel Diameter	(mm)	Φ125(PU)
Net Weight	(kg)	50	60
