Description

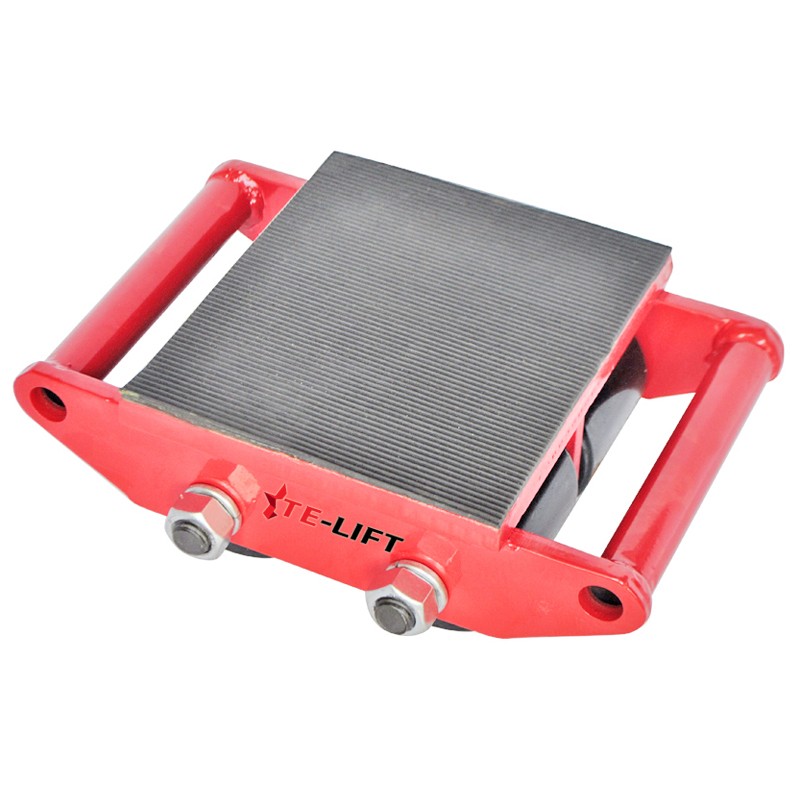

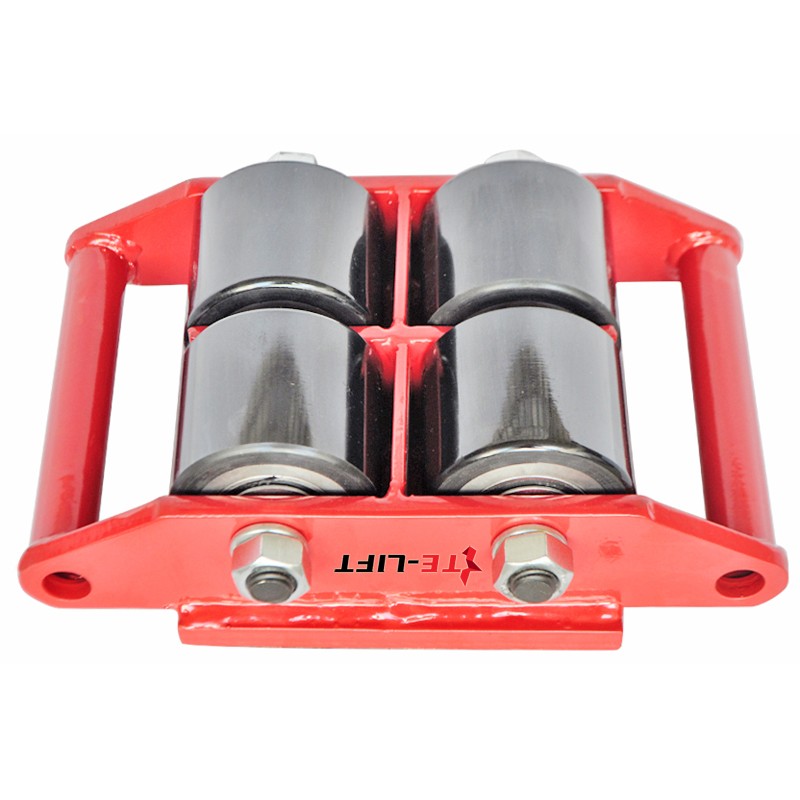

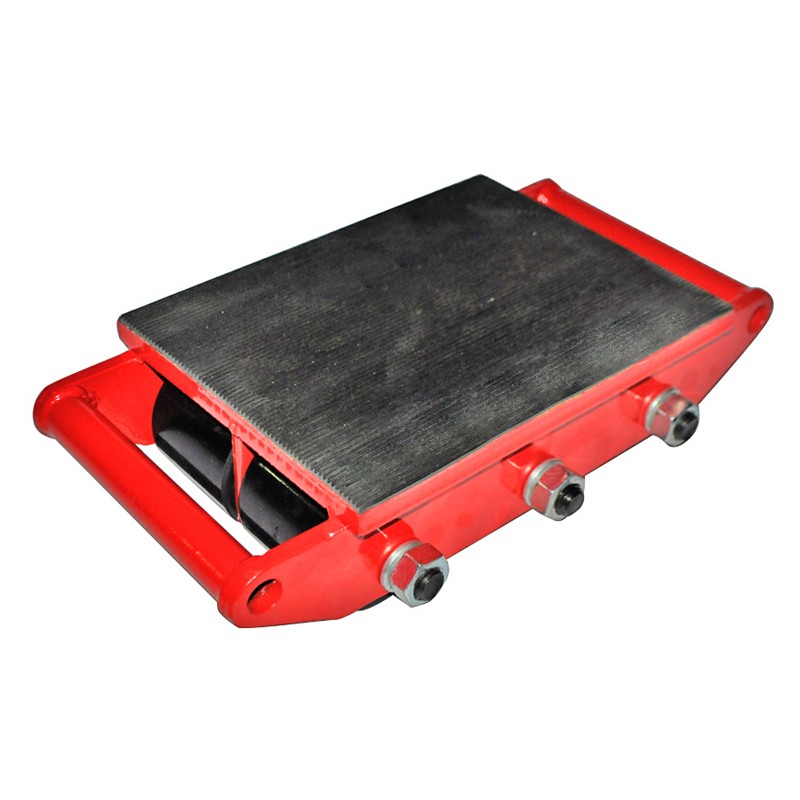

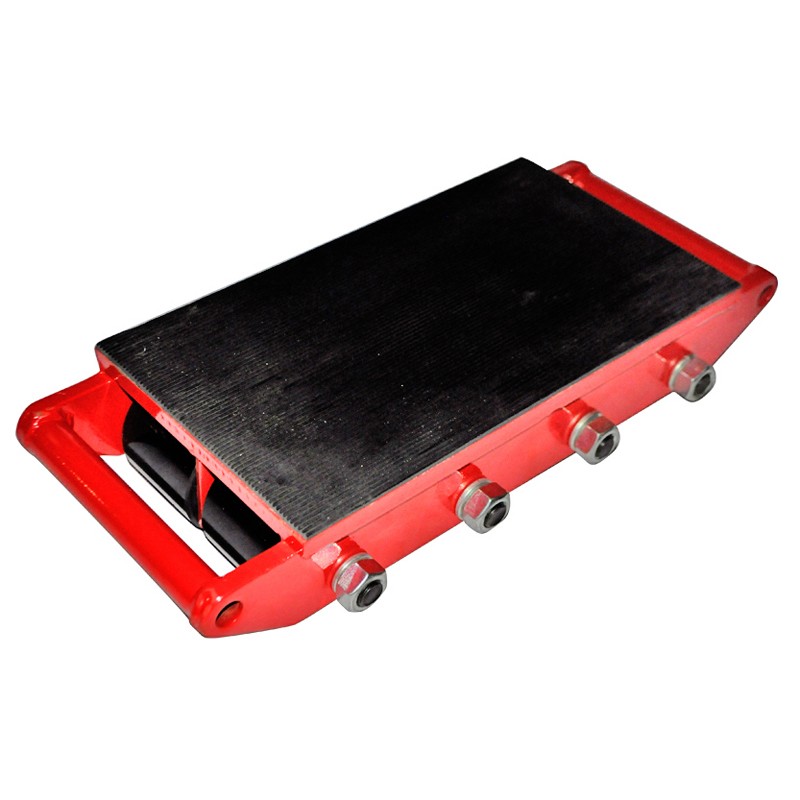

Machine Moving Load Skate
CT series■ For the easy and safe transport of heavy objects.
■ With large ball-bearing nylon rollers.
■ With hardened steel shafts.
■ With strong steel structure.
■ With non-slip rubber pad on the top platform.
■ Two different roller material polyurethane and nylon for choice.
■ Roller size is diameter 80mm and width 70mm.
| Model | CT-4 | CT-6 | CT-8 | CT-9 | CT-12 | CT-16 | CT-20 | CT-25 | |
| Capacity | (tonne) | 6 | 8 | 12 | 15 | 18 | 24 | 30 | 36 |
| Number of Rollers | (pcs) | 4 | 6 | 8 | 9 | 12 | 16 | 20 | 25 |
| Roller Size Dia.xWidth | (mm) | Φ80x70 | |||||||
| Roller Material | Polyurthane/Nylon | ||||||||
| Length | (mm) | 300 | 400 | 500 | 400 | 500 | 500 | 600 | 600 |
| Width | (mm) | 222 | 222 | 222 | 308 | 312 | 420 | 420 | 518 |
| Height | (mm) | 100 | 100 | 100 | 100 | 100 | 100 | 110 | 110 |
| Net Weight | (kg) | 14 | 21 | 28 | 34 | 45 | 52 | 68 | 82 |
